Here you will find all available parts and drawings of the 'Bosch 0601940703 (GRW11E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

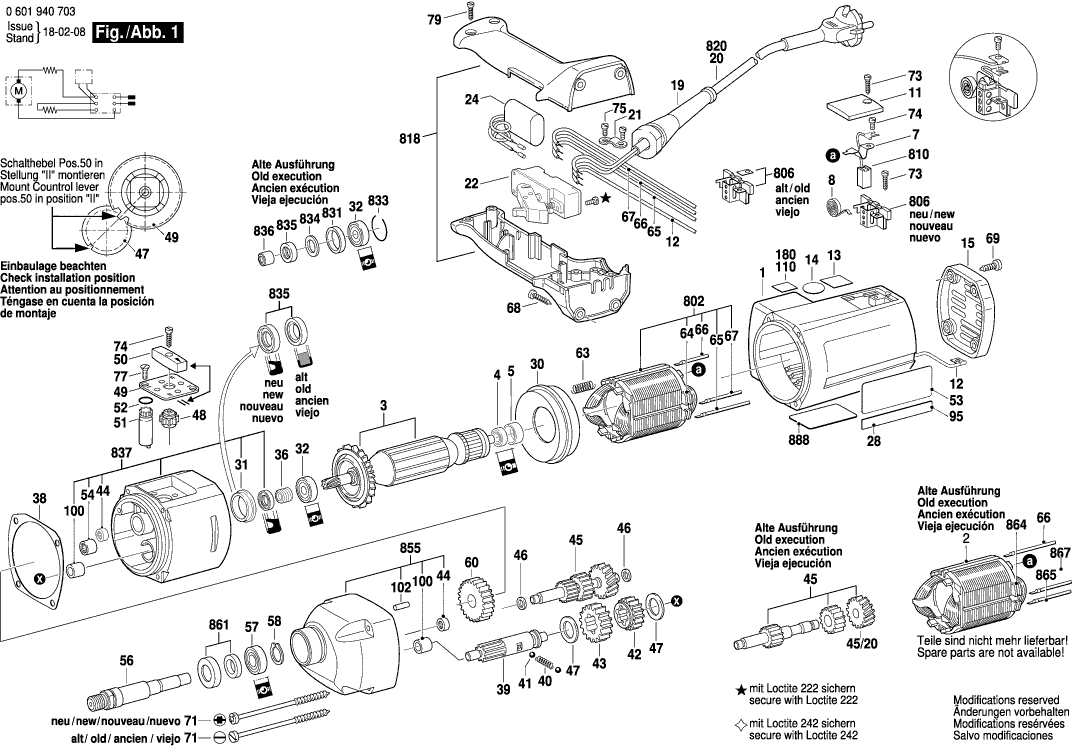

Technical drawing of model Bosch 0601940703 (GRW11E)
Spare parts list of model Bosch 0601940703 (GRW11E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108091 | 33.33 | 40.33 | |
| Armature | ||||
| 3 | 1619P13608 | 126.98 | 153.65 | |
| Ball Bearing | ||||
| 4 | 2600905032 | 4.94 | 5.98 | |
| Intermediate Ring | ||||
| 5 | 1600502011 | 2.40 | 2.90 | |
| Blade terminal | ||||
| 7 | 1604477001 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 8 | 1604652006 | 1.49 | 1.80 | |
| Sealing cap | ||||
| 11 | 3605500063 | 4.21 | 5.09 | |
| Connecting Cable | ||||
| 12 | 1604445006 | 5.81 | 7.03 | |
| Sticker | ||||
| 14 | 3601110368 | 1.90 | 2.30 | |
| Sealing cap | ||||
| 15 | 3605500062 | 12.82 | 15.51 | |
| Grommet | ||||
| 19 | 3600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 21 | 1601302014 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 22 | 1607200075 | |||
| No longer available, no replacement | ||||
| 24 | 1607328028 | |||
| Air-Deflector Ring | ||||
| 30 | 1600502019 | 3.44 | 4.16 | |
| Intermediate Ring | ||||
| 31 | 1600221003 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 32 | 3600905131 | 10.90 | 13.19 | |
| Intermediate Ring | ||||
| 36 | 1600300090 | 3.44 | 4.16 | |
| Sealing Plate | ||||
| 38 | 1601015013 | 1.49 | 1.80 | |
| Toothed Shaft | ||||
| 39 | 1606309066 | 98.18 | 118.80 | |
| Compression Spring | ||||
| 40 | 1604611022 | 1.49 | 1.80 | |
| Ball | ||||
| 41 | 1903230009 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 42 | 1606317074 | 31.42 | 38.02 | |
| Cylindrical Gear | ||||
| 43 | 1606317082 | 39.14 | 47.36 | |
| Needle bearing | ||||
| 44 | 1600910013 | 5.81 | 7.03 | |
| Pinion Shaft | ||||
| 45 | 1606309065 | 98.18 | 118.80 | |
| Cylindrical Gear | ||||
| 45/20 | 1606320077 | 22.88 | 27.68 | |
| Shim | ||||
| 46 | 1600100631 | 1.49 | 1.80 | |
| Shim | ||||
| 47 | 1600101647 | 2.08 | 2.52 | |
| Control Shaft | ||||
| 48 | 1606325025 | 2.86 | 3.46 | |
| Notched Plate | ||||
| 49 | 1601038025 | 1.49 | 1.80 | |
| Control Lever | ||||
| 50 | 1602026044 | 7.46 | 9.03 | |
| Control Shaft | ||||
| 51 | 1606325027 | 8.35 | 10.10 | |
| O-Ring | ||||
| 52 | 1900210105 | 1.49 | 1.80 | |
| Sticker | ||||
| 53 | 3601110362 | 2.52 | 3.05 | |
| Needle-Roller Bearing | ||||
| 54 | 2600910001 | 4.18 | 5.06 | |
| Drilling Spindle | ||||
| 56 | 1603523087 | 50.23 | 60.78 | |
| groove ball bearing | ||||
| 57 | 1900905162 | 16.79 | 20.32 | |
| Retaining clip | ||||
| 58 | 2916650006 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 60 | 3606317009 | 41.30 | 49.97 | |
| Compression Spring | ||||
| 63 | 1604613006 | 1.49 | 1.80 | |
| Wire Guide | ||||
| 64 | 3601025003 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 65 | 3604438027 | 9.67 | 11.70 | |
| Connecting Cable | ||||
| 66 | 1604438012 | 7.46 | 9.03 | |
| Connecting Cable | ||||
| 67 | 3604438025 | 6.53 | 7.90 | |
| Tapping Screw | ||||
| 68 | 3603435027 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 69 | 2910211234 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 71 | 3603435042 | 1.32 | 1.60 | |
| Tapping Screw | ||||
| 73 | 2910211019 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 74 | 2910021118 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 75 | 2910211019 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 76 | 2910211019 | 1.00 | 1.21 | |
| Countersunk-Head Screw | ||||
| 77 | 2910501120 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 79 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 95 | 3601110072 | |||
| Bushing | ||||
| 100 | 3600328033 | 6.53 | 7.90 | |
| Straight Pin | ||||
| 102 | 2917500121 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 650 | 3602025012 | 26.62 | 32.21 | |
| No longer available, no replacement | ||||
| 650/20 | 1618040077 | |||
| Stud bolt | ||||
| 650/30 | 1613521001 | 5.81 | 7.03 | |
| Clamping Band | ||||
| 650/40 | 3601038048 | 16.79 | 20.32 | |
| Straight Pin | ||||
| 650/50 | 1613100012 | 2.40 | 2.90 | |
| Mixer Attachment | ||||
| 651 | 3609201036 | 91.33 | 110.51 | |
| Threaded Fitting | ||||
| 652 | 3609201353 | 13.90 | 16.82 | |
| Field | ||||
| 802 | 3604220148 | 55.56 | 67.23 | |
| Brush Holder | ||||
| 806 | 3604336012 | 5.81 | 7.03 | |
| Carbon-Brush Set | ||||
| 810 | 3607014012 | 23.90 | 28.92 | |
| Handle | ||||
| 818 | 3605132031 | 30.08 | 36.40 | |
| Power supply cord | ||||
| 820 | 1607000391 | 18.94 | 22.92 | |
| Intermediate Ring | ||||
| 831 | 1600206026 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 833 | 2916600016 | 1.49 | 1.80 | |
| Supporting Disc | ||||
| 834 | 1600102680 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 835 | 3600290070 | 10.68 | 12.92 | |
| Intermediate Ring | ||||
| 836 | 1600300090 | 3.44 | 4.16 | |
| Intermediate Bearing | ||||
| 837 | 3607030436 | 102.63 | 124.18 | |
| Spindle Bearing | ||||
| 855 | 1605806368 | 82.63 | 99.98 | |
| Retaining snap ring | ||||
| 861 | 3607030355 | 16.79 | 20.32 | |
| Wire Guide | ||||
| 864 | 3601025003 | 1.49 | 1.80 | |
| Wire Guide | ||||
| 864 | 1601025001 | 1.32 | 1.60 | |
| Connecting Cable | ||||
| 865 | 1604438013 | 7.46 | 9.03 | |
| Connecting Cable | ||||
| 867 | 3604460009 | 5.61 | 6.79 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
