Here you will find all available parts and drawings of the 'Bosch 3601JC5001 ( GRO12V-35 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

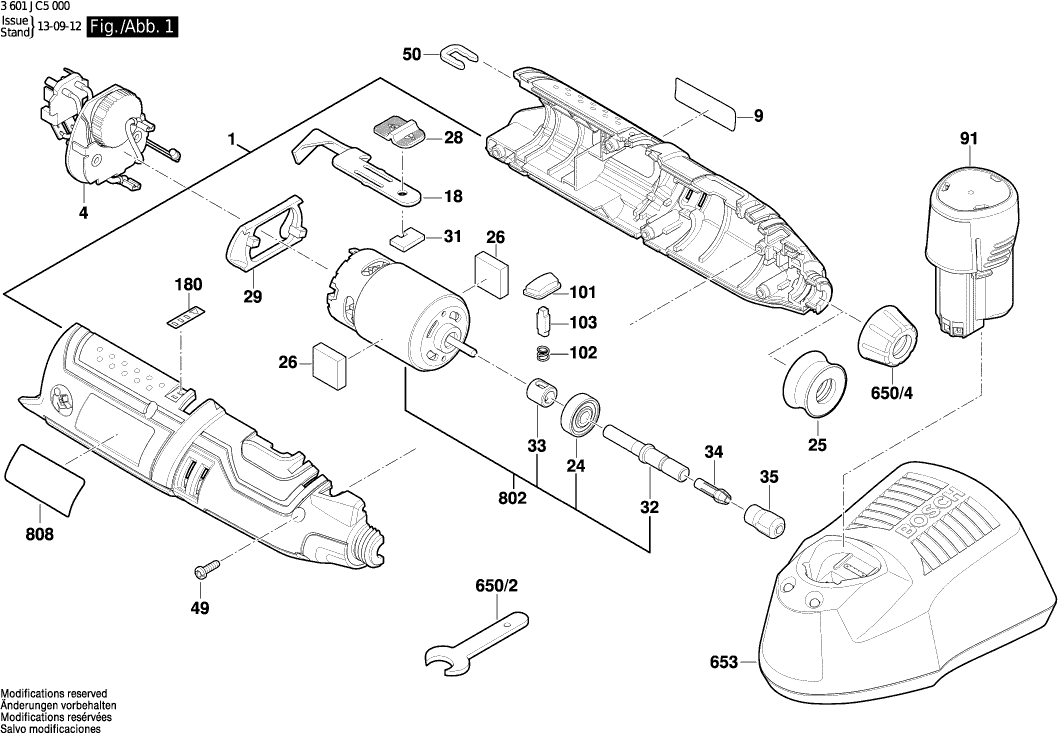

Technical drawing of model Bosch 3601JC5001 ( GRO12V-35 )
Spare parts list of model Bosch 3601JC5001 ( GRO12V-35 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10420 | 13.93 | 16.86 | |
| Electronics Module | ||||
| 4 | 1619P10421 | 55.25 | 66.85 | |
| Manufacturer's nameplate GRO 12V-35 | ||||
| 9 | 1619P14289 | 1.94 | 2.35 | |
| Switch Slide | ||||
| 18 | 1619P10424 | 1.70 | 2.06 | |
| groove ball bearing | ||||
| 24 | 1619P10427 | 1.94 | 2.35 | |
| Front Cap | ||||
| 25 | 1619P10426 | 4.70 | 5.69 | |
| Sponge | ||||
| 26 | 1619P10907 | 0.83 | 1.00 | |
| Switch Button | ||||
| 28 | 1619P10425 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1619P10428 | 1.70 | 2.06 | |
| Sponge | ||||
| 31 | 1619P11488 | 0.83 | 1.00 | |
| Grinding Spindle | ||||
| 32 | 1619P10430 | 11.88 | 14.37 | |
| Locking Ring | ||||
| 33 | 1619P10431 | 2.24 | 2.71 | |
| contour sleeve 1/8" | ||||
| 34 | 2615110480 | 2.71 | 3.28 | |
| Nut | ||||
| 35 | 2610014582 | 1.70 | 2.06 | |
| Torx Oval-Head Screw 3x10 | ||||
| 49 | 1619P00220 | 0.83 | 1.00 | |
| Clip | ||||
| 50 | 1619P08646 | 0.83 | 1.00 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack 12V, 2,5Ah, LI GBA | ||||
| 91 | 1607A35049 | 49.56 | 59.97 | |
| Push-Button | ||||
| 101 | 1619P10432 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 102 | 1619P10433 | 0.83 | 1.00 | |
| Slotted Pin | ||||
| 103 | 1619P10429 | 1.94 | 2.35 | |
| Sticker | ||||
| 180 | 1619P10386 | 1.94 | 2.35 | |
| Chuck Wrench | ||||
| 650/2 | 2610930692 | 1.94 | 2.35 | |
| Front Cap | ||||
| 650/4 | 1619P11344 | 3.31 | 4.01 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| Fast Charger GB GAL 1230 CV 230/12V | ||||
| 653 | 2607226105 | 44.82 | 54.23 | |
| DC motor | ||||
| 802 | 1619P11459 | 33.45 | 40.47 | |
| Nameplate | ||||
| 808 | 1619P14310 | 2.24 | 2.71 | |
