Here you will find all available parts and drawings of the 'Bosch 3601K61B02 ( GRL500HV )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

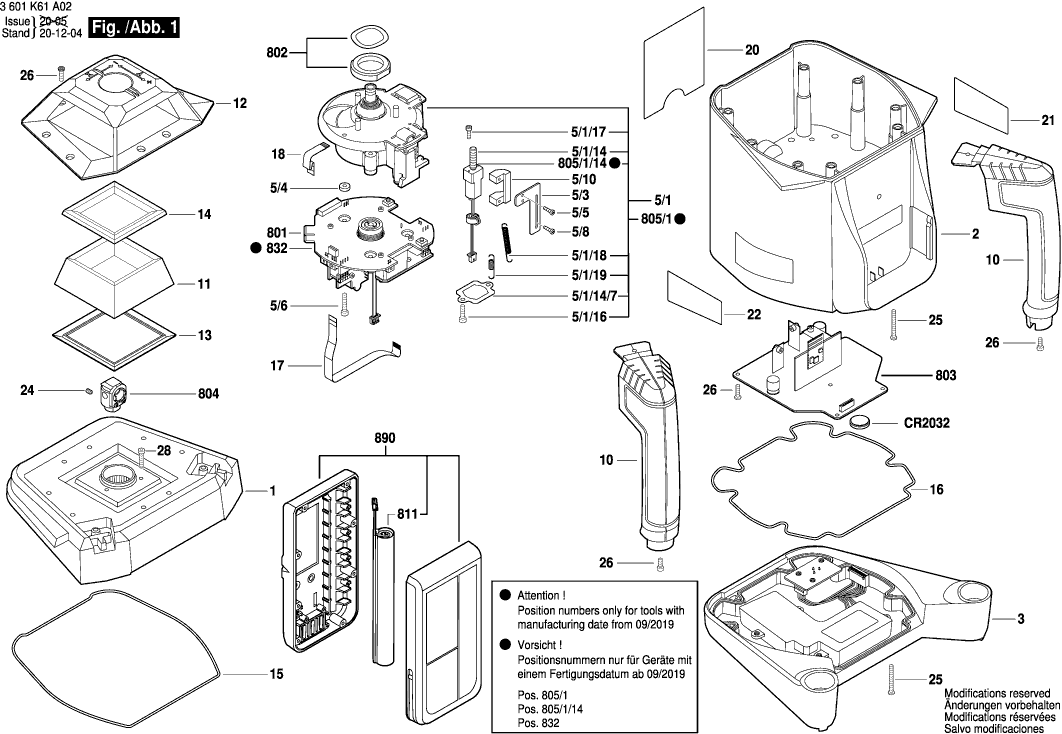

Technical drawing of model Bosch 3601K61B02 ( GRL500HV )
Spare parts list of model Bosch 3601K61B02 ( GRL500HV )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Upper Housing | ||||
| 1 | 2610A15836 | 11.88 | 14.37 | |
| Housing Assembly | ||||
| 2 | 1600A0216Z | 148.65 | 179.87 | |
| Housing Assembly Li-Ion 7.4V 3000mAh / 22,2Wh | ||||
| 3 | 2610A15840 | 148.65 | 179.87 | |
| Motor Housing | ||||
| 5/1 | 16051082MT | 130.32 | 157.69 | |
| Motor-gearbox assembly | ||||
| 5/1/14 | 2610A13249 | 29.75 | 36.00 | |
| Motor Plate | ||||
| 5/1/14/7 | 2610A12302 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw | ||||
| 5/1/17 | 2610A12275 | 0.83 | 1.00 | |
| Extension Spring | ||||
| 5/1/18 | 2610A12283 | 0.83 | 1.00 | |
| Extension Spring | ||||
| 5/1/19 | 2610A13065 | 0.83 | 1.00 | |
| Limit Switch | ||||
| 5/10 | 2610A13399 | 0.83 | 1.00 | |
| Limit Switch | ||||
| 5/3 | 2610A13397 | 1.18 | 1.43 | |
| Special Washer | ||||
| 5/4 | 2610A12269 | 1.94 | 2.35 | |
| Hex Socket Head Cap Screw | ||||
| 5/5 | 2610A12272 | 0.83 | 1.00 | |
| Hex Socket Head Cap Screw | ||||
| 5/6 | 2610A12284 | 0.83 | 1.00 | |
| Tapping Screw | ||||
| 5/8 | 2610A12301 | 0.83 | 1.00 | |
| Handle | ||||
| 10 | 2610A15846 | 8.45 | 10.22 | |
| Window | ||||
| 11 | 2610A14201 | 33.45 | 40.47 | |
| Cage | ||||
| 12 | 2610A15859 | 40.61 | 49.14 | |
| Rubber Gasket | ||||
| 13 | 2610A14928 | 2.24 | 2.71 | |
| Rubber Gasket | ||||
| 14 | 2610A14929 | 1.70 | 2.06 | |
| mat seal | ||||
| 15 | 2610A15869 | 2.71 | 3.28 | |
| mat seal | ||||
| 16 | 2610A15870 | 2.71 | 3.28 | |
| Cable | ||||
| 17 | 2610A16107 | 1.18 | 1.43 | |
| Flexible Pcb | ||||
| 18 | 2610A12359 | 1.70 | 2.06 | |
| Printed-Board Assembly | ||||
| 19 | 1600A0146J | 148.65 | 179.87 | |
| Nameplate | ||||
| 20 | 2609136272 | 1.94 | 2.35 | |
| Adhesive Label | ||||
| 21 | 2610A16652 | 1.94 | 2.35 | |
| Adhesive Label | ||||
| 22 | 2610A16653 | 1.94 | 2.35 | |
| Set screw | ||||
| 24 | 2610A12270 | 1.18 | 1.43 | |
| Screw | ||||
| 25 | 2610A07331 | 0.83 | 1.00 | |
| Screw | ||||
| 26 | 2610A14967 | 0.83 | 1.00 | |
| Battery | ||||
| 38 | 2610A16656 | 1.60 | 1.94 | |
| Power supply unit EU 230V | ||||
| 603 | 2610A16712 | 49.56 | 59.97 | |
| No longer available, no replacement | ||||
| 604/1 | 2610A15904 | |||
| Clamp Bracket | ||||
| 604/2 | 2610A14830 | 40.61 | 49.14 | |
| Leveling element | ||||
| 801 | 1600A01NL7 | 271.34 | 328.32 | |
| ball sleeve | ||||
| 802 | 2610A16051 | 6.54 | 7.91 | |
| Printed-Board Assembly | ||||
| 803 | 1600A0146J | 148.65 | 179.87 | |
| prism support | ||||
| 804 | 2610A16472 | 91.56 | 110.79 | |
| Motor Housing | ||||
| 805/1 | 2610A16480 | 130.32 | 157.69 | |
| Motor-gearbox assembly | ||||
| 805/1/14 | 1600A01R7V | 26.84 | 32.48 | |
| No longer available, no replacement | ||||
| 811 | 1607A350LJ | |||
| Leveling element | ||||
| 832 | 1600A020PA | 304.19 | 368.07 | |
| Laser detector | ||||
| 890 | 1600A020RB | 342.01 | 413.83 | |
