Here you will find all available parts and drawings of the 'Bosch 3601K61704 (GRL300HVG)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

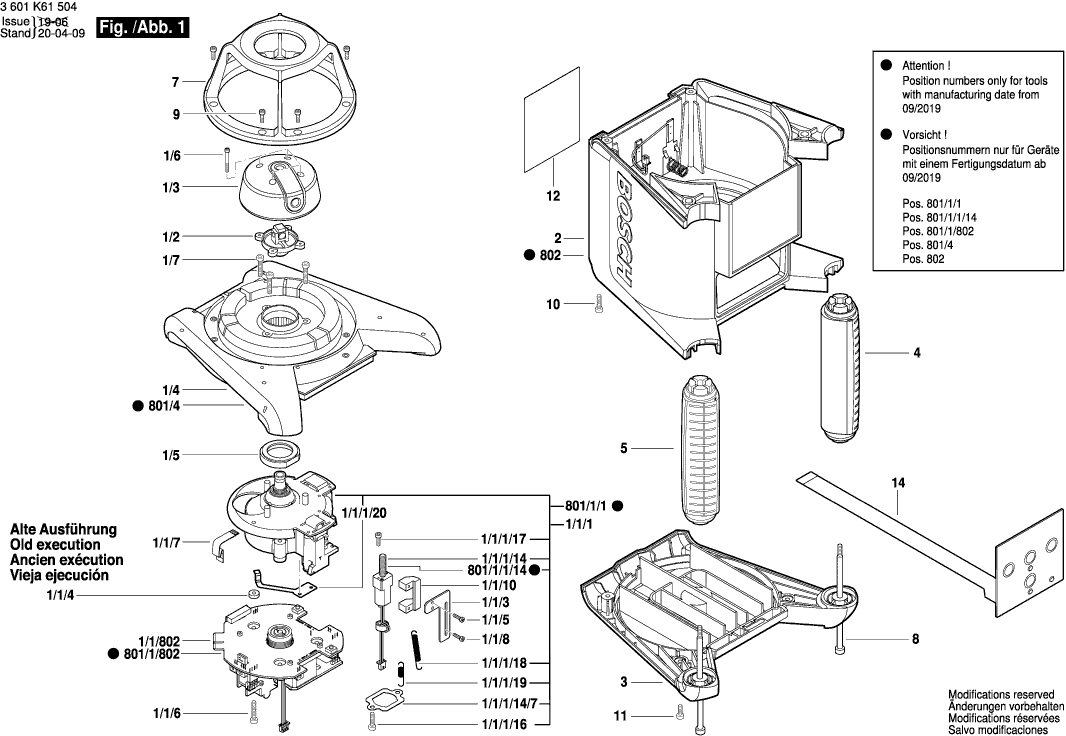

Technical drawing of model Bosch 3601K61704 (GRL300HVG)
Spare parts list of model Bosch 3601K61704 (GRL300HVG)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1/1/1 | 16051082MP | |||
| No information available, not orderable | ||||
| 1/1/1/14 | 2610A13249 | |||
| No information available, not orderable | ||||
| 1/1/1/14/7 | 2610A12302 | |||
| Hex Socket Head Cap Screw | ||||
| 1/1/1/17 | 2610A12275 | 1.00 | 1.21 | |
| Extension Spring | ||||
| 1/1/1/18 | 2610A12283 | 1.00 | 1.21 | |
| Extension Spring | ||||
| 1/1/1/19 | 2610A13065 | 1.00 | 1.21 | |
| Brake Spring | ||||
| 1/1/1/20 | 2610A14394 | 1.32 | 1.60 | |
| Limit Switch | ||||
| 1/1/10 | 2610A13399 | 1.00 | 1.21 | |
| Limit Switch | ||||
| 1/1/3 | 2610A13397 | 1.32 | 1.60 | |
| Special Washer | ||||
| 1/1/4 | 2610A12269 | 2.18 | 2.64 | |
| Hex Socket Head Cap Screw | ||||
| 1/1/5 | 2610A12272 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 1/1/6 | 2610A12284 | 1.00 | 1.21 | |
| Flexible Pcb | ||||
| 1/1/7 | 2610A12359 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 1/1/8 | 2610A12301 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 1/1/802 | 1600A01NM4 | |||
| lens mount | ||||
| 1/2 | 2610A13995 | 61.93 | 74.94 | |
| Rotating Beacon | ||||
| 1/3 | 2610A14947 | 37.50 | 45.38 | |
| Housing Assembly | ||||
| 1/4 | 2610A12340 | 82.63 | 99.98 | |
| ball sleeve | ||||
| 1/5 | 2610A15789 | 1.90 | 2.30 | |
| Hex Socket Head Cap Screw | ||||
| 1/6 | 2610A12362 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 2 | 2610A14450 | |||
| Housing | ||||
| 3 | 2610A12957 | 26.62 | 32.21 | |
| Handle | ||||
| 4 | 2610A12464 | 20.39 | 24.67 | |
| Handle | ||||
| 5 | 2610A12309 | 20.39 | 24.67 | |
| Battery box assembly | ||||
| 6 | 2610A12327 | 13.02 | 15.75 | |
| Cage | ||||
| 7 | 2610A12311 | 26.62 | 32.21 | |
| Threaded Bolt | ||||
| 8 | 2610A12310 | 2.52 | 3.05 | |
| Hex Socket Head Cap Screw | ||||
| 9 | 2610A12348 | 1.90 | 2.30 | |
| Hex Socket Head Cap Screw | ||||
| 10 | 2610A12459 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 11 | 2610A12460 | 1.00 | 1.21 | |
| Nameplate | ||||
| 12 | 2609135942 | 2.18 | 2.64 | |
| Keyboard | ||||
| 14 | 2610A13406 | 22.88 | 27.68 | |
| No longer available, no replacement | ||||
| 30 | 2610A15308 | |||
| No longer available, no replacement | ||||
| 33 | 2610A15290 | |||
| Target | ||||
| 623 | 2610A07083 | 4.58 | 5.54 | |
| Remote Control Unit | ||||
| 680 | 1607000EC7 | 126.98 | 153.65 | |
| Motor Housing | ||||
| 801/1/1 | 16099221BA | 126.98 | 153.65 | |
| Motor-gearbox assembly | ||||
| 801/1/1/14 | 1600A01R7V | 30.08 | 36.40 | |
| Leveling element | ||||
| 801/1/802 | 1600A020PM | 340.97 | 412.57 | |
| Assembly | ||||
| 801/4 | 1600A01R7U | 82.63 | 99.98 | |
| No longer available, no replacement | ||||
| 802 | 1600A01R89 | |||
