Here you will find all available parts and drawings of the 'Bosch 3601HA9000 (GRB14CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

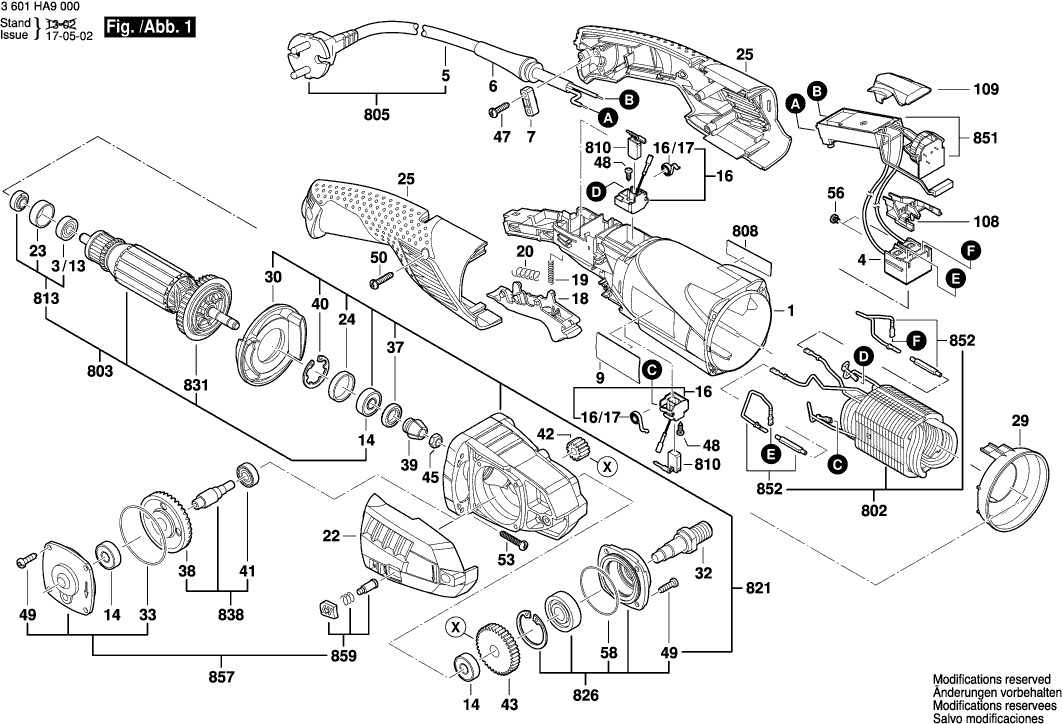

Technical drawing of model Bosch 3601HA9000 (GRB14CE)
Spare parts list of model Bosch 3601HA9000 (GRB14CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108255 | 14.94 | 18.08 | |
| Ball Bearing | ||||
| 3/13 | 2600905032 | 4.94 | 5.98 | |
| Switch | ||||
| 4 | 1607200155 | 13.13 | 15.89 | |
| Grommet | ||||
| 6 | 1600703031 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate GRB 14-CE | ||||
| 9 | 3601110569 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Brush Holder | ||||
| 16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 16/17 | 1604652013 | 1.49 | 1.80 | |
| Adjusting Slide | ||||
| 18 | 1602319024 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 19 | 1604611041 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 20 | 3604611039 | 1.49 | 1.80 | |
| Cover | ||||
| 22 | 1605500281 | 5.81 | 7.03 | |
| Rubber Ring | ||||
| 23 | 1600206036 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 24 | 1600206025 | 2.08 | 2.52 | |
| Handle | ||||
| 25 | 1600A01N0J | 12.82 | 15.51 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 32 | 1619P07906 | 16.79 | 20.32 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Drive Roller | ||||
| 35 | 1600A0013H | 244.89 | 296.32 | |
| Thread-forming tap. Screw | ||||
| 36 | 2914499425 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Crown Gear | ||||
| 38 | 1619P07918 | 39.14 | 47.36 | |
| Bevel Gear | ||||
| 39 | 1619P07919 | 27.81 | 33.65 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 41 | 2600905072 | 6.73 | 8.14 | |
| Ball Bearing | ||||
| 41 | 2600905032 | 4.94 | 5.98 | |
| Cylindrical Gear | ||||
| 42 | 1619P07911 | 23.90 | 28.92 | |
| Cylindrical Gear | ||||
| 43 | 1619P07912 | 23.90 | 28.92 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Screw | ||||
| 47 | 2603490022 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 48 | 1613435034 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 53 | 1603435078 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 56 | 1603415004 | 1.49 | 1.80 | |
| O-Ring | ||||
| 58 | 1619P07915 | 1.00 | 1.21 | |
| Cover | ||||
| 108 | 1600A00XC4 | 1.49 | 1.80 | |
| Cover | ||||
| 109 | 1605500263 | 4.18 | 5.06 | |
| Auxiliary Handle | ||||
| 640 | 16020250A1 | 13.13 | 15.89 | |
| Pin-Type Face-Wrench | ||||
| 650 | 1607950061 | 4.18 | 5.06 | |
| Pin-Type Face-Wrench | ||||
| 650 | F000632033 | 2.40 | 2.90 | |
| Field | ||||
| 802 | 1604220417 | 31.42 | 38.02 | |
| Armature With Fan | ||||
| 803 | 1604010A23 | 71.68 | 86.73 | |
| Power supply cord | ||||
| 805 | 1607000391 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Parts Set | ||||
| 813 | 1607000378 | 6.73 | 8.14 | |
| Gear Housing | ||||
| 821 | 3607031742 | 136.48 | 165.14 | |
| Bearing Flange | ||||
| 826 | 3607031743 | 64.67 | 78.25 | |
| Fan | ||||
| 831 | 1616B00064 | 2.08 | 2.52 | |
| Fan | ||||
| 831 | 1606610132 | 2.08 | 2.52 | |
| Grinder | ||||
| 834 | 3607031740 | 273.59 | 331.04 | |
| Crown Gear | ||||
| 838 | 1619P09080 | 58.03 | 70.22 | |
| Speed governor | ||||
| 851 | 1607233256 | 110.30 | 133.46 | |
| Connecting Cable | ||||
| 852 | 1604448025 | 2.08 | 2.52 | |
| Gear Cover | ||||
| 857 | 1619P09079 | 16.79 | 20.32 | |
| Push button set | ||||
| 859 | 1619P09082 | 2.08 | 2.52 | |
| Hex Socket Head Cap Screw | ||||
| 864 | 3603414031 | 6.73 | 8.14 | |
| Plain Washer | ||||
| 865 | 3600100097 | 23.90 | 28.92 | |
| Roller | ||||
| 866 | 3607031738 | 155.51 | 188.17 | |
| Roller | ||||
| 867 | 3607031739 | 136.48 | 165.14 | |
| Arm | ||||
| 868 | 3602013010 | 71.68 | 86.73 | |
| Rotary Knob | ||||
| 869 | 3603231018 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 870 | 3605510064 | |||
| Hex Socket Head Cap Screw | ||||
| 871 | 3603414032 | 2.08 | 2.52 | |
