Here you will find all available parts and drawings of the 'Bosch 0602116002 (GR.65)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

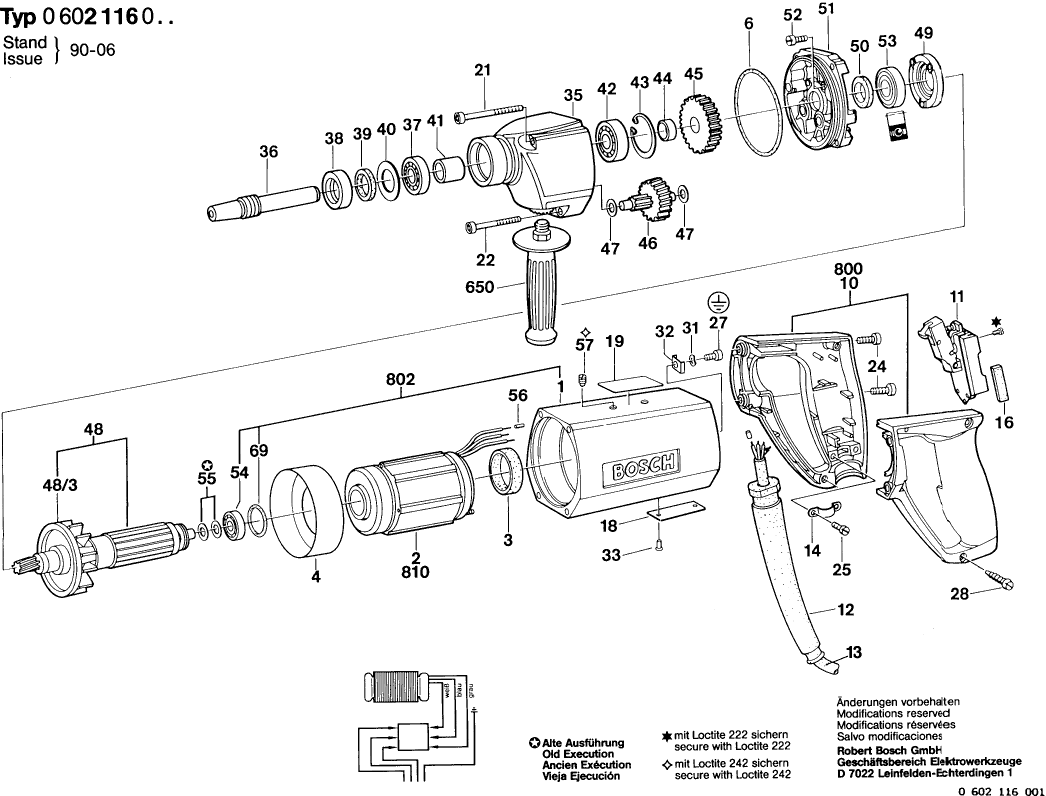

Technical drawing of model Bosch 0602116002 (GR.65)
Spare parts list of model Bosch 0602116002 (GR.65)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Ring | ||||
| 3 | 1600209006 | 2.52 | 3.05 | |
| Air-Deflector Ring | ||||
| 4 | 1600209003 | 7.32 | 8.86 | |
| O-Ring | ||||
| 6 | 1600210005 | 2.86 | 3.46 | |
| Switch | ||||
| 11 | 1607200038 | 55.56 | 67.23 | |
| Grommet | ||||
| 12 | 1600703009 | 5.81 | 7.03 | |
| Fastening Clamp | ||||
| 14 | 3601303012 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 16 | 1602381001 | |||
| Nameplate | ||||
| 18 | 3601106053 | 4.58 | 5.54 | |
| Hex Socket Head Cap Screw DIN 912-M5x55-8.8 | ||||
| 21 | 2910141176 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 22 | 2910141172 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 24 | 2910141158 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 25 | 2910021116 | 2.08 | 2.52 | |
| Pan head screw DIN 85-AM4x10-MS | ||||
| 27 | 2910110120 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 28 | 2910211220 | 1.49 | 1.80 | |
| Spring Washer Ø4,2 MM | ||||
| 31 | 3600150006 | 2.18 | 2.64 | |
| Clamping Saddle | ||||
| 32 | 3601321001 | 3.04 | 3.68 | |
| Grooved Nail DIN 1476-2x5 MM | ||||
| 33 | 3603133001 | 2.18 | 2.64 | |
| Spindle Bearing | ||||
| 35 | 3605806116 | 113.29 | 137.08 | |
| Drilling Spindle | ||||
| 36 | 1603124039 | 43.12 | 52.18 | |
| groove ball bearing | ||||
| 37 | 1900900201 | 27.81 | 33.65 | |
| Retaining snap ring | ||||
| 38 | 3607030355 | 16.79 | 20.32 | |
| Sealing disk | ||||
| 39 | 1600108000 | 1.49 | 1.80 | |
| Shim | ||||
| 40 | 1600102003 | 1.49 | 1.80 | |
| Spacer Bushing | ||||
| 41 | 1600300026 | 8.35 | 10.10 | |
| groove ball bearing | ||||
| 42 | 1900900303 | 21.30 | 25.77 | |
| Spring retaining ring | ||||
| 43 | 2916660014 | 1.49 | 1.80 | |
| Spacer Bushing | ||||
| 44 | 1600300027 | 4.18 | 5.06 | |
| Straight Toothed Gear Z=39 | ||||
| 45 | 1606317046 | 81.47 | 98.58 | |
| Spindle With Gear Z=14/29 | ||||
| 46 | 1606328050 | 148.65 | 179.87 | |
| Shim | ||||
| 47 | 1600100631 | 1.49 | 1.80 | |
| Rotor Without Winding | ||||
| 48 | 3604080057 | 304.15 | 368.02 | |
| Fan | ||||
| 48/3 | 3606610010 | 3.71 | 4.49 | |
| Conical Spring Washer | ||||
| 49 | 1600501025 | 33.33 | 40.33 | |
| Sealing disk | ||||
| 50 | 1600108030 | 3.04 | 3.68 | |
| Bearing Flange | ||||
| 51 | 3605820056 | 101.94 | 123.35 | |
| Socket head cap screw | ||||
| 52 | 2910021125 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 53 | 1900905121 | 17.60 | 21.30 | |
| groove ball bearing | ||||
| 54 | 1610900025 | 13.90 | 16.82 | |
| Shim | ||||
| 55 | 1420100023 | 1.49 | 1.80 | |
| End Splice | ||||
| 56 | 3604477008 | 1.00 | 1.21 | |
| Set screw | ||||
| 57 | 1603402002 | 1.32 | 1.60 | |
| O-Ring 22,0x1,5 MM | ||||
| 69 | 3600210016 | 1.49 | 1.80 | |
| Auxiliary Handle | ||||
| 650 | 16020250A1 | 13.13 | 15.89 | |
| Handle BLUE | ||||
| 800 | 3605133011 | 67.25 | 81.37 | |
| Motor Housing | ||||
| 802 | 3605102040 | 234.56 | 283.82 | |
| Stator 265V/200HZ | ||||
| 810 | 1604229088 | 383.36 | 463.87 | |
