Here you will find all available parts and drawings of the 'Bosch 0602506101 (GR.55)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

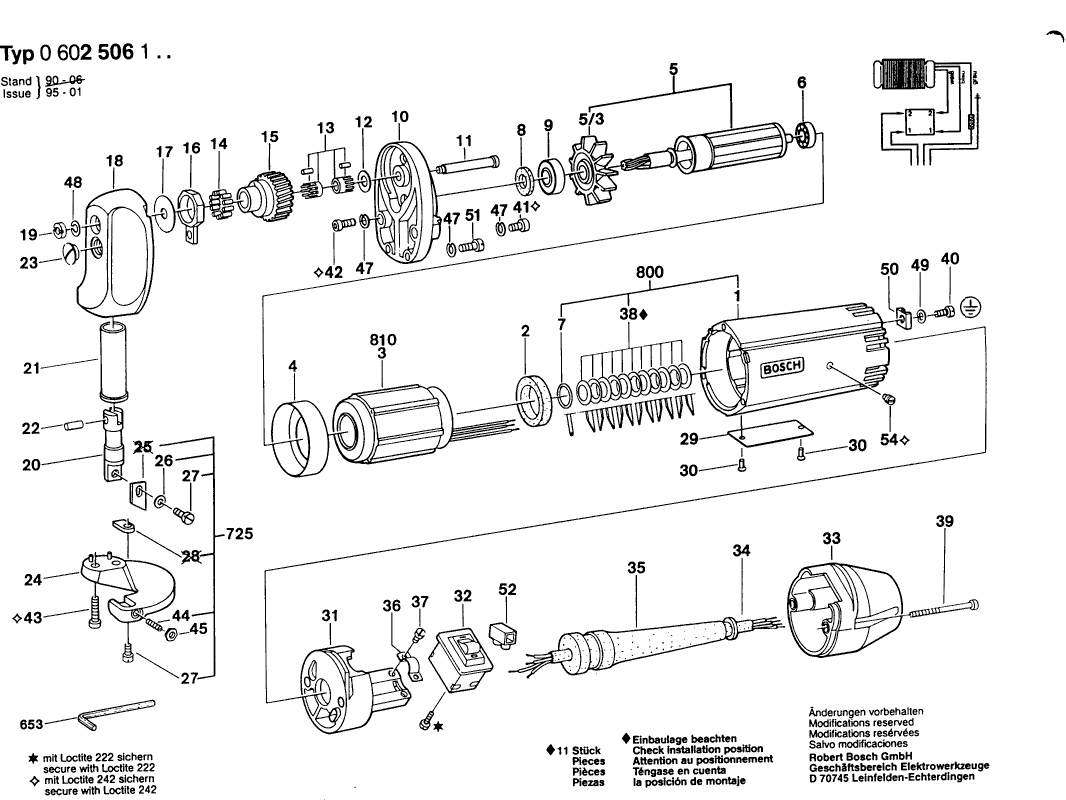

Technical drawing of model Bosch 0602506101 (GR.55)
Spare parts list of model Bosch 0602506101 (GR.55)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Ring | ||||
| 2 | 1600209011 | 2.52 | 3.05 | |
| Air-Deflector Ring | ||||
| 4 | 1600502005 | 2.18 | 2.64 | |
| No information available, not orderable | ||||
| 5 | 3604080020 | |||
| Fan | ||||
| 5/3 | 1606610105 | 13.02 | 15.75 | |
| O-Ring 12,0x2,25 MM | ||||
| 6 | 3600210039 | 6.53 | 7.90 | |
| groove ball bearing | ||||
| 7 | 1900905015 | 31.42 | 38.02 | |
| No information available, not orderable | ||||
| 8 | 1600108053 | |||
| groove ball bearing | ||||
| 9 | 1900905017 | 22.88 | 27.68 | |
| No information available, not orderable | ||||
| 10 | 3605820060 | |||
| No information available, not orderable | ||||
| 11 | 2603520001 | |||
| No information available, not orderable | ||||
| 12 | 1600100624 | |||
| No information available, not orderable | ||||
| 13 | 2600913034 | |||
| No information available, not orderable | ||||
| 15 | 2606319040 | |||
| No information available, not orderable | ||||
| 16 | 2602001000 | |||
| No information available, not orderable | ||||
| 17 | 2600100519 | |||
| No information available, not orderable | ||||
| 19 | 2603341002 | |||
| No information available, not orderable | ||||
| 20 | 2603070005 | |||
| No information available, not orderable | ||||
| 21 | 2600422000 | |||
| No information available, not orderable | ||||
| 22 | 2603100000 | |||
| No information available, not orderable | ||||
| 24 | 2608042000 | |||
| Plain Washer | ||||
| 26 | 2916011010 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 27 | 2910405118 | |||
| Nameplate | ||||
| 29 | 3601106053 | 4.58 | 5.54 | |
| Grooved Nail | ||||
| 30 | 3603133000 | 2.40 | 2.90 | |
| Connection Housing | ||||
| 31 | 3600099004 | 20.39 | 24.67 | |
| Switch | ||||
| 32 | 3607200001 | 75.38 | 91.21 | |
| Sealing cap | ||||
| 33 | 3605500074 | 20.39 | 24.67 | |
| Pvc-Insulated Cable | ||||
| 34 | 3604462052 | 55.56 | 67.23 | |
| Grommet | ||||
| 35 | 3600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 36 | 1601302014 | 2.18 | 2.64 | |
| Socket head cap screw | ||||
| 37 | 2910021116 | 2.08 | 2.52 | |
| Disc Spring | ||||
| 38 | 3600150013 | 3.04 | 3.68 | |
| Hex Socket Head Cap Screw | ||||
| 39 | 2910141140 | 1.32 | 1.60 | |
| Pan head screw | ||||
| 40 | 2910110118 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw M 4x10 DIN 912-8.8 | ||||
| 41 | 2910141120 | 1.32 | 1.60 | |
| Hex Socket Head Cap Screw DIN 912-M4x18-8.8 | ||||
| 42 | 2910141128 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 43 | 2910141158 | 1.00 | 1.21 | |
| Set screw | ||||
| 44 | 2912031084 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 47 | 2916690003 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 48 | 2916680006 | |||
| Spring Washer Ø4,2 MM | ||||
| 49 | 3600150006 | 2.18 | 2.64 | |
| Clamping Saddle | ||||
| 50 | 3601321001 | 3.04 | 3.68 | |
| Hex Socket Head Cap Screw | ||||
| 51 | 2910141122 | 2.08 | 2.52 | |
| Socket-Terminal Strip | ||||
| 52 | 1901091012 | 4.94 | 5.98 | |
| Set screw | ||||
| 54 | 3603402000 | 1.32 | 1.60 | |
| Offset Screwdriver | ||||
| 653 | 1907950004 | 5.81 | 7.03 | |
| No information available, not orderable | ||||
| 725 | 3607010028 | |||
| Motor Housing | ||||
| 800 | 3605102028 | 166.62 | 201.61 | |
| Stator 265V/200HZ, 200V/150HZ | ||||
| 810 | 1604229200 | 495.00 | 598.95 | |
