Here you will find all available parts and drawings of the 'Bosch 0602128001 ( GR.54 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

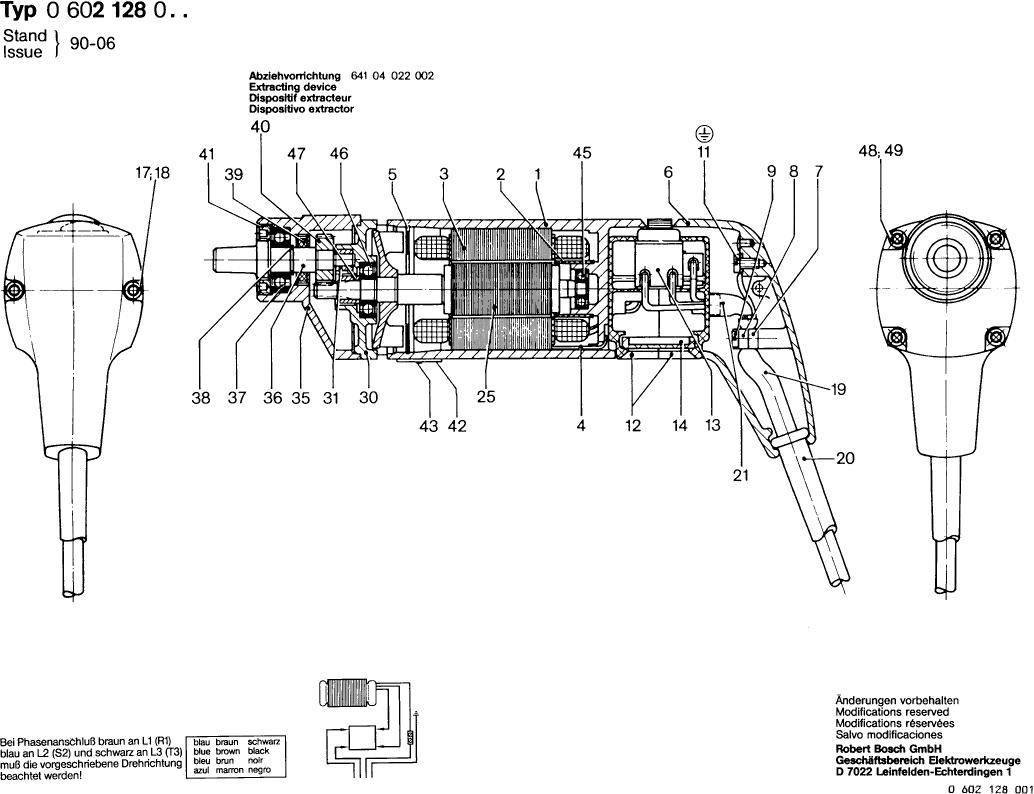

Technical drawing of model Bosch 0602128001 ( GR.54 )
Spare parts list of model Bosch 0602128001 ( GR.54 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 3609200030 | |||
| No longer available, no replacement | ||||
| 2 | 3609200031 | |||
| No longer available, no replacement | ||||
| 3 | 3609200032 | |||
| Joining Bar | ||||
| 4 | 3609200033 | 0.83 | 1.00 | |
| Cover Disc | ||||
| 5 | 3609200034 | 0.83 | 1.00 | |
| Handle | ||||
| 6 | 3609200035 | 0.83 | 1.00 | |
| Clamping Piece | ||||
| 7 | 3609200036 | 0.83 | 1.00 | |
| Clamping Piece | ||||
| 8 | 3609200006 | 1.18 | 1.43 | |
| Pan head screw | ||||
| 9 | 2910091092 | 0.83 | 1.00 | |
| Pan head screw DIN 85 AM 4x6-MS | ||||
| 11 | 2910110116 | 0.83 | 1.00 | |
| Switch Housing | ||||
| 12 | 3609200037 | 0.83 | 1.00 | |
| On-Off Switch | ||||
| 13 | 3609200038 | 23.75 | 28.74 | |
| Cover Plate | ||||
| 14 | 3609200039 | 0.83 | 1.00 | |
| Hex Socket Head Cap Screw M 4x30 DIN 912-8.8 | ||||
| 17 | 2910141134 | 0.83 | 1.00 | |
| Spring Washer DIN 137-A 4-ST | ||||
| 18 | 2916060005 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 19 | 3609200225 | |||
| Protective Sheath | ||||
| 20 | 3609200041 | 0.83 | 1.00 | |
| Insulation Tubing | ||||
| 21 | 3609200042 | 0.83 | 1.00 | |
| Rotor | ||||
| 25 | 3609200043 | 187.62 | 227.02 | |
| Intermediate Bearing | ||||
| 30 | 3609200044 | 0.83 | 1.00 | |
| Bushing | ||||
| 31 | 3609200045 | 0.83 | 1.00 | |
| Spindle Bearing | ||||
| 35 | 3609200046 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 36 | 3609200047 | |||
| groove ball bearing 6000 Z DIN 625 | ||||
| 37 | 1900905100 | 0.83 | 1.00 | |
| Spring retaining ring 22x1,2 DIN 471 | ||||
| 38 | 2916650012 | 0.83 | 1.00 | |
| Seal Kit | ||||
| 39 | 3609200048 | 4.70 | 5.69 | |
| Cylindrical Gear | ||||
| 40 | 3609200049 | 0.83 | 1.00 | |
| Threaded Ring | ||||
| 41 | 3609200050 | 0.83 | 1.00 | |
| Nameplate | ||||
| 42 | 3601100004 | 0.83 | 1.00 | |
| Grooved Nail | ||||
| 43 | 3609200222 | 0.83 | 1.00 | |
| groove ball bearing 625-2Z DIN 625 | ||||
| 45 | 1900905015 | 23.75 | 28.74 | |
| groove ball bearing 8x22x7 | ||||
| 46 | 1600905011 | 4.70 | 5.69 | |
| Seal Ring | ||||
| 47 | 3609200051 | 7.58 | 9.17 | |
