Here you will find all available parts and drawings of the 'Bosch 0602902001 ( GR./SIZE57 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

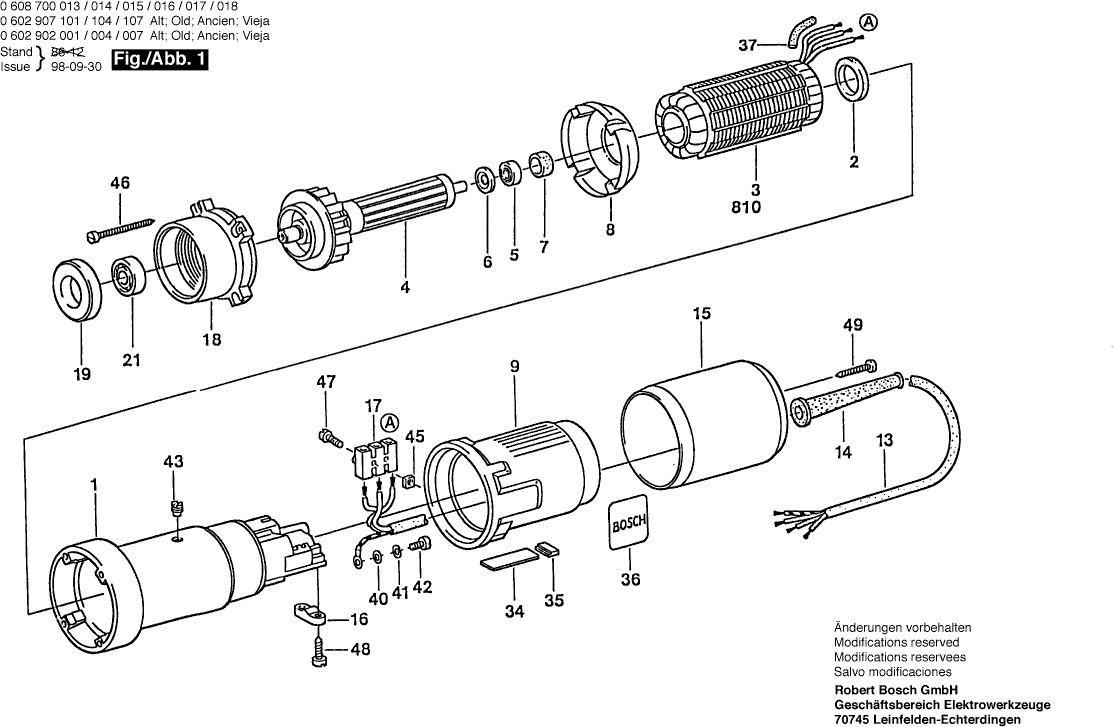

Technical drawing of model Bosch 0602902001 ( GR./SIZE57 )
Spare parts list of model Bosch 0602902001 ( GR./SIZE57 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605102018 | 130.32 | 157.69 | |
| Seal Ring | ||||
| 2 | 1600209011 | 2.24 | 2.71 | |
| Rotor | ||||
| 4 | 3604080008 | 209.26 | 253.20 | |
| groove ball bearing 625-2Z DIN 625 | ||||
| 5 | 1900905015 | 23.75 | 28.74 | |
| Rubber Washer 6MM,Ø12xØ16,4x3MM | ||||
| 7 | 3600206002 | 1.94 | 2.35 | |
| Cover Disc | ||||
| 8 | 3601328000 | 8.45 | 10.22 | |
| Motor Housing BLUE | ||||
| 9 | 3605108111 | 168.86 | 204.32 | |
| Elec. Cable W/Connection | ||||
| 13 | 3604462055 | 23.75 | 28.74 | |
| Grommet Ø7,6-Ø8,2x95 MM | ||||
| 14 | 2600703013 | 1.94 | 2.35 | |
| Intermediate Ring | ||||
| 15 | 3600202008 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 16 | 2601035001 | 1.18 | 1.43 | |
| Socket-Terminal Strip 3x6 MM | ||||
| 17 | 1901091013 | 3.31 | 4.01 | |
| Intermediate Bearing | ||||
| 18 | 3605700049 | 113.29 | 137.08 | |
| Stop Disc | ||||
| 19 | 3600102014 | 18.19 | 22.01 | |
| groove ball bearing 9x24x7 | ||||
| 21 | 1900905017 | 20.42 | 24.71 | |
| Nameplate | ||||
| 34 | 3601100003 | 2.24 | 2.71 | |
| Intermediate Piece BLUE | ||||
| 35 | 1600026000 | 0.83 | 1.00 | |
| Clamping Saddle | ||||
| 36 | 3601321001 | 2.71 | 3.28 | |
| Sticker | ||||
| 36 | 3601103000 | 1.94 | 2.35 | |
| PVC Hose | ||||
| 37 | 1600712026 | 1.18 | 1.43 | |
| Spring Washer Ø4,2 MM | ||||
| 41 | 3600150006 | 1.94 | 2.35 | |
| Pan head screw DIN 85-AM4x10-MS | ||||
| 42 | 2910110120 | 0.83 | 1.00 | |
| Set screw | ||||
| 43 | 3603402000 | 1.18 | 1.43 | |
| Square Nut DIN 562-M3-04 | ||||
| 45 | 2915121003 | 0.83 | 1.00 | |
| Tapping Screw DIN 7971-B3,9x45 | ||||
| 46 | 2910211283 | 1.94 | 2.35 | |
| Socket head cap screw DIN 84-AM3x15-4.8 | ||||
| 47 | 2910001057 | 0.83 | 1.00 | |
| Tapping Screw DIN 7971-ST3,9x16-F | ||||
| 48 | 2910211019 | 0.83 | 1.00 | |
| Tapping Screw BZ 3,9x25 DIN 7972 | ||||
| 49 | 2910601022 | 0.83 | 1.00 | |
| Stator 265V/200HZ | ||||
| 810 | 3604229005 | 304.19 | 368.07 | |
