Here you will find all available parts and drawings of the 'Bosch 0602907001 (GR./SIZE55)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

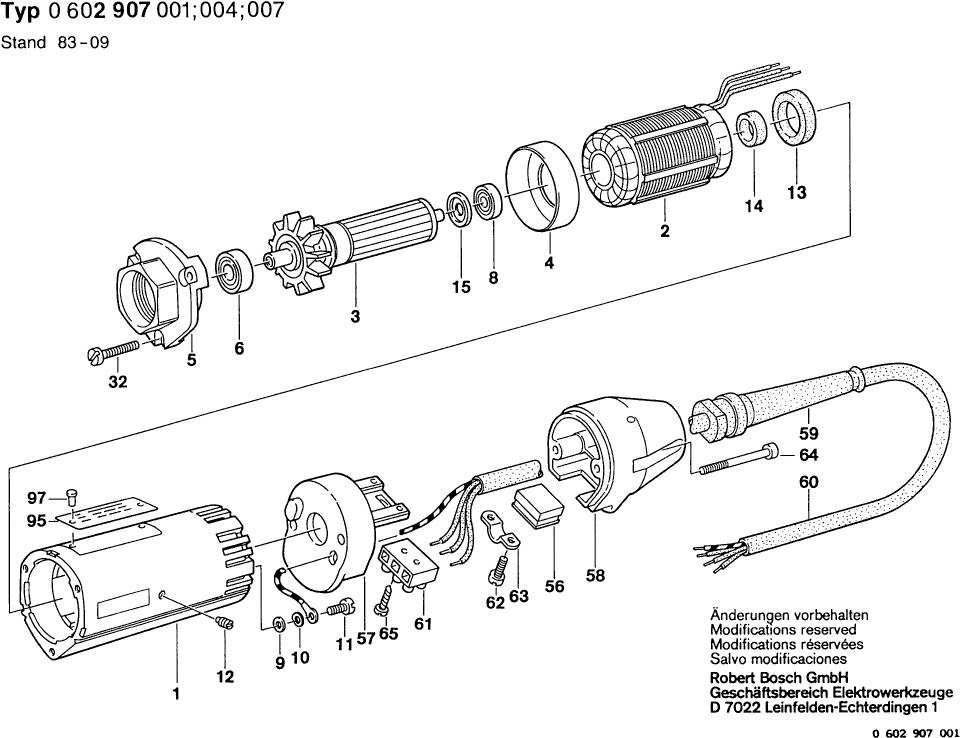

Technical drawing of model Bosch 0602907001 (GR./SIZE55)
Spare parts list of model Bosch 0602907001 (GR./SIZE55)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotor Without Winding | ||||
| 3 | 3604080015 | 233.78 | 282.87 | |
| Air-Deflector Ring | ||||
| 4 | 1600502005 | 2.18 | 2.64 | |
| Intermediate Bearing | ||||
| 5 | 3605700099 | 130.32 | 157.69 | |
| groove ball bearing | ||||
| 6 | 1900905017 | 22.88 | 27.68 | |
| groove ball bearing | ||||
| 8 | 1900905015 | 31.42 | 38.02 | |
| Clamping Saddle | ||||
| 9 | 3601321001 | 3.04 | 3.68 | |
| Spring Washer Ø4,2 MM | ||||
| 10 | 3600150006 | 2.18 | 2.64 | |
| Pan head screw DIN 85-AM4x10-MS | ||||
| 11 | 2910110120 | 1.00 | 1.21 | |
| Set screw | ||||
| 12 | 3603402000 | 1.32 | 1.60 | |
| Elec. Cable W/Connection | ||||
| 13 | 3604462055 | 23.75 | 28.74 | |
| O-Ring 12,0x2,25 MM | ||||
| 14 | 3600210039 | 6.53 | 7.90 | |
| Intermediate Ring | ||||
| 15 | 3600202008 | 2.18 | 2.64 | |
| Socket head cap screw | ||||
| 32 | 2910011128 | 1.00 | 1.21 | |
| Sealing cap | ||||
| 56 | 3602305010 | 0.83 | 1.00 | |
| Connection Housing | ||||
| 57 | 3600099006 | 0.83 | 1.00 | |
| Sealing cap | ||||
| 58 | 3605500074 | 20.39 | 24.67 | |
| Grommet | ||||
| 59 | 3600703011 | 2.86 | 3.46 | |
| Pvc-Insulated Cable | ||||
| 60 | 3604462052 | 55.56 | 67.23 | |
| Socket-Terminal Strip | ||||
| 61 | 1901091013 | 4.18 | 5.06 | |
| Socket head cap screw | ||||
| 62 | 2910021116 | 2.08 | 2.52 | |
| Fastening Clamp | ||||
| 63 | 1601302014 | 2.18 | 2.64 | |
| Hex Socket Head Cap Screw | ||||
| 64 | 2910141140 | 1.32 | 1.60 | |
| Tapping Screw | ||||
| 65 | 2910211007 | 1.49 | 1.80 | |
| Nameplate | ||||
| 95 | 3601106003 | 1.49 | 1.80 | |
| Round-Head Grooved Pin | ||||
| 97 | 2917721031 | 1.00 | 1.21 | |
