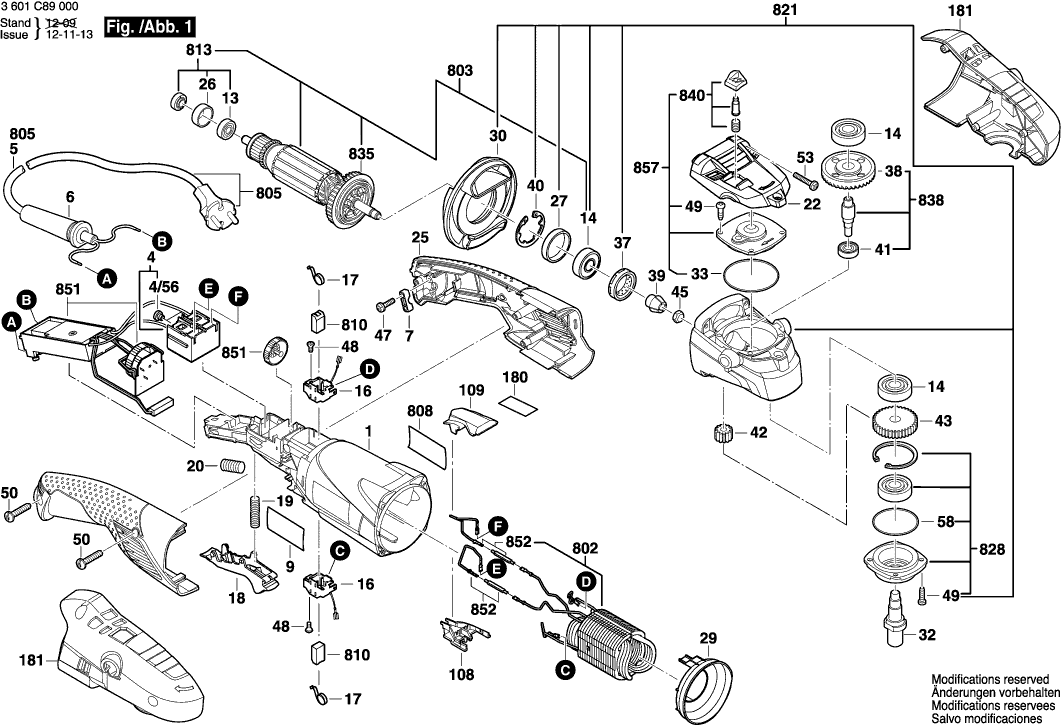

Technical drawing of model Bosch 3601C89000 ( GPO14CE )
Spare parts list of model Bosch 3601C89000 ( GPO14CE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing BLUE | ||||
| 1 | 1605108255 | 12.41 | 15.02 | |
| Switch Assembly | ||||
| 4 | 1607200257 | 23.75 | 28.74 | |
| Lens Head Screw | ||||
| 4/56 | 1603415004 | 1.18 | 1.43 | |
| Grommet Ø 8,6mm | ||||
| 6 | 1619P14643 | 1.18 | 1.43 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate GPO 14 PE | ||||
| 9 | 1619P07982 | 2.24 | 2.71 | |
| Ball Bearing 7x19x6 | ||||
| 13 | 2600905032 | 4.10 | 4.96 | |
| groove ball bearing 8x22x7 | ||||
| 14 | 1600905032 | 4.70 | 5.69 | |
| Brush Holder WITH DISCONNECTING DEVICE | ||||
| 16 | 1601323023 | 2.71 | 3.28 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Adjusting Slide | ||||
| 18 | 1602319024 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 19 | 1604611041 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 20 | 3604611039 | 1.18 | 1.43 | |
| plastic covering | ||||
| 22 | 1619P07907 | 2.24 | 2.71 | |
| Handle | ||||
| 25 | 1600A01N0J | 10.73 | 12.98 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.18 | 1.43 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 1.94 | 2.35 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 1.94 | 2.35 | |
| Grinding Spindle | ||||
| 32 | 1619P07906 | 13.93 | 16.86 | |
| O-Ring 46,0x1,1 MM | ||||
| 33 | 1600210035 | 1.18 | 1.43 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 1.94 | 2.35 | |
| Crown Gear | ||||
| 38 | 1619P07918 | 33.45 | 40.47 | |
| Bevel Gear | ||||
| 39 | 1619P07919 | 23.75 | 28.74 | |
| Retaining clip | ||||
| 40 | 1600119011 | 1.70 | 2.06 | |
| groove ball bearing | ||||
| 41 | 1619P08829 | 5.33 | 6.45 | |
| Cylindrical Gear | ||||
| 42 | 1619P07912 | 20.42 | 24.71 | |
| Cylindrical Gear | ||||
| 43 | 1619P07911 | 20.42 | 24.71 | |
| Hex Nut M7, SW10 | ||||
| 45 | 1603300016 | 1.18 | 1.43 | |
| Screw | ||||
| 47 | 1619P00029 | 0.83 | 1.00 | |
| Tapping Screw DIN7981-ST2,9x9,5C-Z | ||||
| 48 | 2912401005 | 0.83 | 1.00 | |
| Thread-forming tap. Screw | ||||
| 49 | 1619P08825 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x20 | ||||
| 50 | 1619P00105 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x25 | ||||
| 53 | 1619P01066 | 0.83 | 1.00 | |
| O-Ring 39,0x1,1 MM | ||||
| 58 | 1619P07915 | 0.83 | 1.00 | |
| Cover BLACK | ||||
| 108 | 1605500258 | 1.94 | 2.35 | |
| Cover BLACK | ||||
| 109 | 1605500263 | 3.31 | 4.01 | |
| Label | ||||
| 180 | 1619P09116 | 1.94 | 2.35 | |
| Polishing Cap | ||||
| 181 | 1600A000VM | 15.71 | 19.01 | |
| Protective Cover | ||||
| 650/1 | 1600A025XP | 7.58 | 9.17 | |
| Hex Screw Driver | ||||
| 650/7 | 1619P07612 | 2.24 | 2.71 | |
| Hex Screw | ||||
| 650/8 | 1619P07611 | 2.71 | 3.28 | |
| Handle | ||||
| 653 | 1619P07563 | 20.42 | 24.71 | |
| Field 220-240V | ||||
| 802 | 1604220417 | 26.84 | 32.48 | |
| Armature With Fan 220-240V | ||||
| 803 | 1619P09115 | 81.47 | 98.58 | |
| Power supply cord | ||||
| 805 | 1607000391 | 13.93 | 16.86 | |
| Nameplate | ||||
| 808 | 1619P30313 | 1.84 | 2.23 | |
| Nameplate | ||||
| 808 | 1619P20894 | 0.83 | 1.00 | |
| Carbon-Brush Set Kohlebürstensatz 10 x 1 607 014 | ||||
| 810 | 1607000482 | 91.56 | 110.79 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 10.73 | 12.98 | |
| Parts Set | ||||
| 813 | 1607000378 | 5.33 | 6.45 | |
| Gear Housing | ||||
| 821 | 1619P09078 | 44.82 | 54.23 | |
| Bearing Flange | ||||
| 828 | 1619P09081 | 26.84 | 32.48 | |
| Fan | ||||
| 835 | 1606610132 | 1.70 | 2.06 | |
| Crown Gear | ||||
| 838 | 1619P09080 | 49.56 | 59.97 | |
| Push button set | ||||
| 840 | 1619P09082 | 1.70 | 2.06 | |
| Speed governor | ||||
| 851 | 1607233256 | 91.56 | 110.79 | |
| Connecting Cable | ||||
| 852 | 1604448025 | 1.70 | 2.06 | |
| Gear Cover | ||||
| 857 | 1619P09079 | 13.93 | 16.86 | |
| Grease Tube 225 ML | ||||
| 894 | 1615430020 | 15.71 | 19.01 | |
| Grease Tube 225 ML | ||||
| 895 | 1605430003 | 29.75 | 36.00 | |
