Here you will find all available parts and drawings of the 'Bosch 0601366703 ( GPO12E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

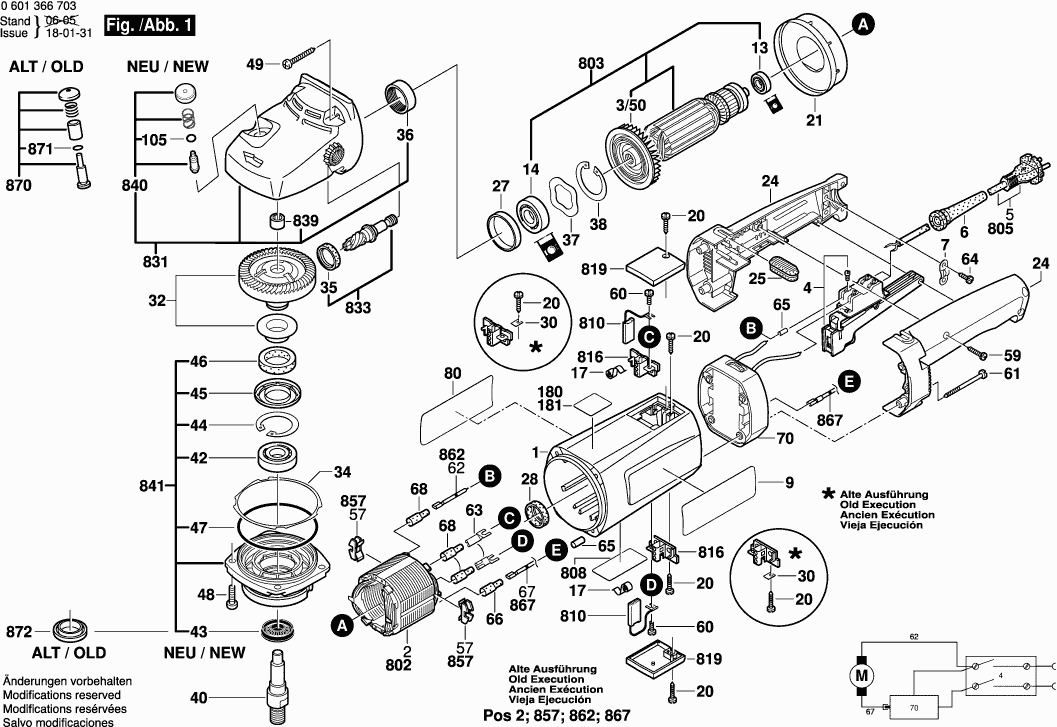

Technical drawing of model Bosch 0601366703 ( GPO12E )

Spare parts list of model Bosch 0601366703 ( GPO12E )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 3605108129 26.62 32.21
Fan
3/50 1606610126 6.22 7.53
No longer available, no replacement
4 1607200080
Grommet
6 3600703011 2.86 3.46
Fastening Clamp
7 1601302014 2.18 2.64
Manufacturer's nameplate
9 3601110188 2.71 3.28
Ball Bearing
13 2600905032 4.94 5.98
groove ball bearing
14 3600905131 9.47 11.46
Spiral Spring
17 1604652006 1.49 1.80
Tapping Screw
20 2910211019 1.00 1.21
Air-Deflector Ring
21 3600421002 1.90 2.30
Handle
24 3605132062 13.90 16.82
Storage Ledge
25 1602388029 1.32 1.60
Intermediate Ring
27 1600206026 1.49 1.80
Intermediate Ring
28 1600502011 2.40 2.90
Tab Washer
30 1601030022 1.49 1.80
Crown Gear Z=59
32 3606333052 102.63 124.18
Shim
34 1600190021 2.40 2.90
Shim
34 1600190022 1.49 1.80
Shim
34 1600190020 1.49 1.80
Shim
34 1600190037 1.00 1.21
Seal Ring
35 3600290039 3.71 4.49
Threaded Ring
36 3600200026 9.47 11.46
Spring Washer
37 1600150026 2.52 3.05
Spring retaining ring
38 1600119009 1.32 1.60
Grinding Spindle
40 1603523100 13.13 15.89
groove ball bearing
42 3600905134 10.90 13.19
Seal Ring
43 1600290036 2.08 2.52
Spring retaining ring
44 1600119010 1.49 1.80
Retaining snap ring
45 1600290019 1.49 1.80
Felt Washer
46 1600205034 1.49 1.80
O-Ring
47 1600210033 1.49 1.80
Thread-forming tap. Screw
48 1603435076 2.18 2.64
Thread-forming tap. Screw
48 1603435023 2.08 2.52
Tapping Screw
49 2912401038 1.00 1.21
Wire Guide
57 3601025003 1.49 1.80
Tapping Screw
59 2910211021 1.49 1.80
Socket head cap screw
60 2910021118 1.00 1.21
Tapping Screw
61 3603435043 1.32 1.60
Connecting Cable
62 3604438028 3.71 4.49
Blade terminal
63 1604477001 1.49 1.80
Torx Oval-Head Screw
64 2603490021 1.00 1.21
End Splice
65 1900452003 2.40 2.90
Shrinkable Tube
66 3600707022 3.04 3.68
Connecting Cable
67 3604438026 5.96 7.21
Shrinkable Tube
68 3600707022 3.04 3.68
Speed governor 220-240V
70 3607218003 61.93 74.94
Reference Plate
80 3601110189 2.87 3.47
O-Ring
105 1600210045 1.49 1.80
Auxiliary Handle
650 3602025017 11.65 14.10
Knurled Thumbscrew
650/20 2603481001 2.18 2.64
Handle Cover
651 9618089612 11.65 14.10
Protecting Cover
740 1601329013 1.00 1.21
No longer available, no replacement
766 2607001190
Field
802 3604220135 72.96 88.28
No longer available, no replacement
803 3607031329
Power supply cord
805 1607000227 23.90 28.92
Nameplate
808 160111A3H3 2.40 2.90
Carbon-Brush Set
810 3607014012 23.90 28.92
Brush Holder
816 3604336012 5.81 7.03
Sealing cap
819 3605500063 4.21 5.09
Bearing Flange
831 3607000109 82.63 99.98
Bevel Gear Z=6
833 3607000079 126.98 153.65
Needle-Roller Bearing
839 2600910001 4.18 5.06
Push-Button
840 1607000354 5.96 7.21
Bearing Flange
841 3607000108 33.33 40.33
Wire Guide
857 1601025001 1.32 1.60
Connecting Cable
862 3604438000 2.00 2.42
Connecting Cable
867 1604431002 2.24 2.71
Push-Button
870 1607000206 10.90 13.19
O-Ring
871 1600210034 1.49 1.80
Seal Ring
872 1600290020 1.32 1.60
