Here you will find all available parts and drawings of the 'Bosch 3601B37000 ( GOP30-28 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

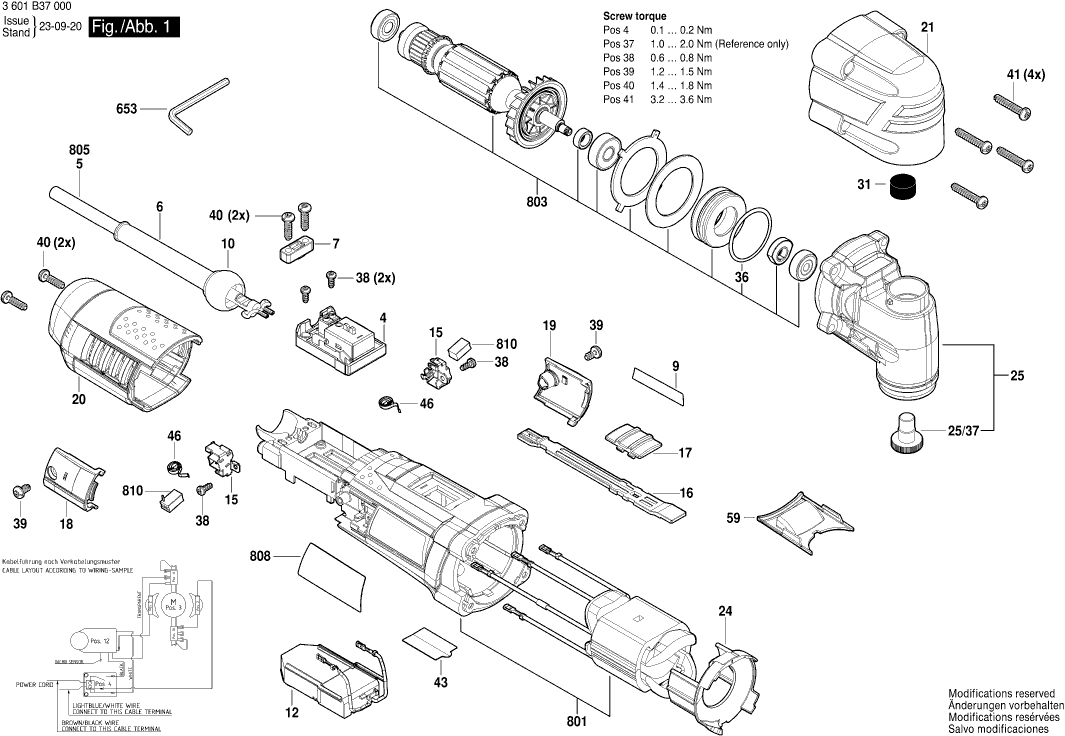

Technical drawing of model Bosch 3601B37000 ( GOP30-28 )
Spare parts list of model Bosch 3601B37000 ( GOP30-28 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronics Module | ||||
| 4 | 2609125028 | 13.93 | 16.86 | |
| Grommet Ø6,5-Ø6,9x95 MM | ||||
| 6 | 2600703012 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate GOP 30-28 | ||||
| 9 | 2609136574 | 1.94 | 2.35 | |
| ball Joint | ||||
| 10 | 2609100929 | 1.18 | 1.43 | |
| Electronics Module | ||||
| 12 | 1607233437 | 44.82 | 54.23 | |
| Brush Holder | ||||
| 15 | 1619P09249 | 1.94 | 2.35 | |
| Switch Slide | ||||
| 16 | 2609100914 | 0.83 | 1.00 | |
| Switch Button | ||||
| 17 | 2609100915 | 2.24 | 2.71 | |
| Brush-Cover | ||||
| 18 | 2609100911 | 1.70 | 2.06 | |
| Brush-Cover | ||||
| 19 | 2609100912 | 1.18 | 1.43 | |
| Housing Cover | ||||
| 20 | 2609100909 | 9.53 | 11.53 | |
| Gear Cover | ||||
| 21 | 2609101664 | 6.54 | 7.91 | |
| Air-Deflector Ring | ||||
| 24 | 2609101674 | 3.31 | 4.01 | |
| Gear Box | ||||
| 25 | 2609199957 | 73.72 | 89.20 | |
| Screw | ||||
| 25/37 | 2609112154 | 2.24 | 2.71 | |
| Rubber Gasket | ||||
| 31 | 2609170312 | 1.18 | 1.43 | |
| O-Ring 31,0x2,0 MM | ||||
| 36 | 2600210056 | 1.18 | 1.43 | |
| Screw | ||||
| 37 | 2609112154 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 3x8 | ||||
| 38 | 2603490016 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x8 | ||||
| 39 | 2603490020 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 40 | 2603490022 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x25 | ||||
| 41 | 2603490024 | 1.18 | 1.43 | |
| Reference Plate | ||||
| 43 | 2609136619 | 1.18 | 1.43 | |
| Spiral Spring | ||||
| 46 | 1619P02809 | 0.83 | 1.00 | |
| Safety Cover | ||||
| 59 | 2609101682 | 1.18 | 1.43 | |
| Key | ||||
| 653 | 2609110831 | 2.71 | 3.28 | |
| Box | ||||
| 691 | 16054381CV | 13.11 | 15.86 | |
| No longer available, no replacement | ||||
| 801 | 2609199344 | |||
| Armature 220~240V | ||||
| 803 | 2609199961 | 55.25 | 66.85 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 160111A54H | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1619P02870 | 6.54 | 7.91 | |
