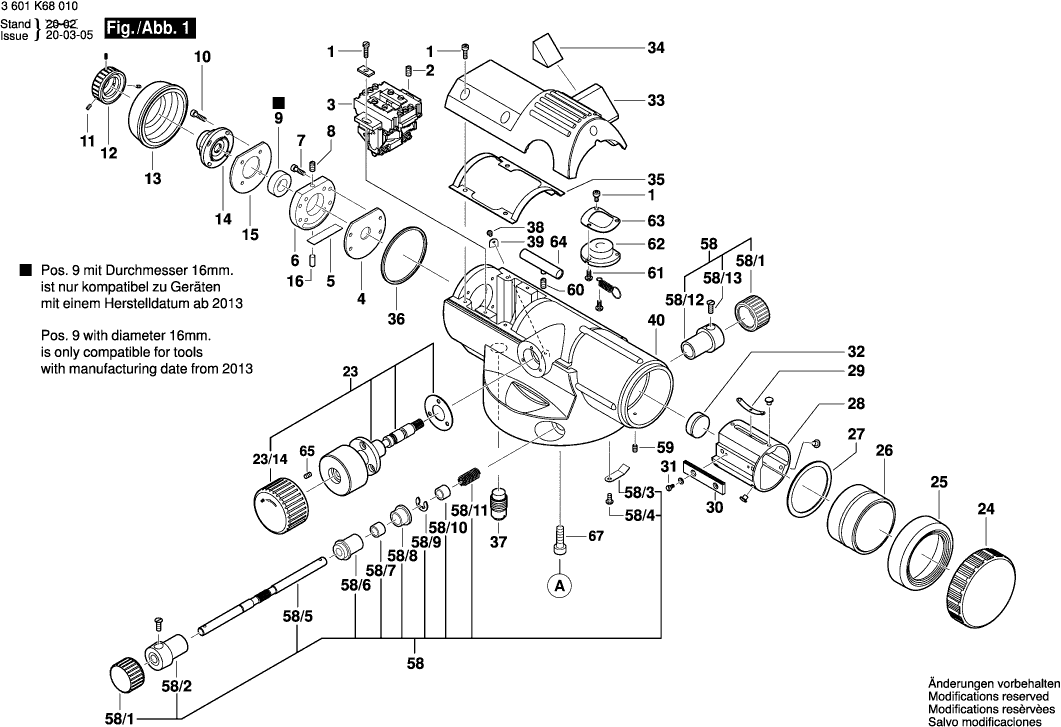

Technical drawing of model Bosch 3601K68400 ( GOL20D )

Spare parts list of model Bosch 3601K68400 ( GOL20D )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw
1 2610A02324 0.83 1.00
Pivot Pin
2 2610A05748 0.83 1.00
Compensator
3 2610A03364 55.25 66.85
mat seal
4 2610A05661 0.83 1.00
Contact strap
5 2610A05662 1.18 1.43
Mounting Bracket
6 2610A05723 5.83 7.05
Screw
7 2610A05712 0.83 1.00
Screw
8 2610A05614 1.18 1.43
Cross hair insert
9 1619PA5003 23.75 28.74
Cross hair insert
9 2610A03372 23.75 28.74
Screw
10 2610A05726 0.83 1.00
Set screw
11 2610A05724 0.83 1.00
Protective Cover
12 2610A11682 4.10 4.96
Cover
13 2610A11683 5.33 6.45
eyepiece
14 2610A14365 60.65 73.39
mat seal
15 2610A05731 0.83 1.00
Piston
16 2610A05622 0.83 1.00
No longer available, no replacement
17 2610A05709
Adjusting Screw
18 2610A05628 4.10 4.96
Tension Cone
19 2610A05629 1.18 1.43
Washer
20 2610A05630 1.18 1.43
Nut
20 2610A05631 1.18 1.43
Nut
21 2610A05631 1.18 1.43
Washer
21 2610A05630 1.18 1.43
mat seal
22 2610A03399 1.10 1.33
Focusing device Alt Old
23 2610A03385 15.71 19.01
Focusing device 16mm
23 1619PA5229 9.53 11.53
Pin
23/1 2610A03400 1.10 1.33
Washer
23/10 2610A02546 0.83 1.00
Adjustment Knob
23/11 2610A03403 1.10 1.33
Washer
23/12 2610A02549 0.83 1.00
Screw
23/13 2610A03405 1.60 1.94
Cap
23/14 2610A03404 5.83 7.05
Contact strap
23/2 2610A03338 0.83 1.00
Shaft
23/3 2610A03397 3.85 4.66
O-Ring
23/4 2610A03401 0.83 1.00
Screw
23/5 2610A02507 0.83 1.00
Gear Housing
23/6 2610A03398 11.68 14.13
Screw
23/7 2610A02504 0.83 1.00
Spring Pin
23/8 2610A02550 0.83 1.00
Stop Ring
23/9 2610A03402 1.10 1.33
Cap
24 2610A03394 2.71 3.28
Cover Ring
25 2610A11684 4.10 4.96
Lens
26 2610A03366 60.65 73.39
Spacer
27 2610A03392 3.31 4.01
Pusher
28 2610A03377 13.93 16.86
Contact strap
29 2610A05649 0.83 1.00
Toothed rack
30 2610A05652 1.70 2.06
Screw
31 2610A03380 0.83 1.00
Lens
32 2610A05653 15.71 19.01
Housing Cover
33 2610A11685 8.45 10.22
Reader
34 2610A03379 2.24 2.71
O-Ring
35 2610A03367 1.94 2.35
mat seal
36 2610A11904 1.18 1.43
Transport Lock
37 2610A05751 2.24 2.71
Screw
38 2610A03368 0.83 1.00
Indicator
39 2610A03339 0.83 1.00
Telescope GOL 20 D
40 1619PA5053 55.25 66.85
Spindle
41 2610A05664 20.42 24.71
Screw
42 2610A03384 0.83 1.00
Washer
43 2610A05665 0.83 1.00
Retaining ring
44 2610A05666 0.83 1.00
Gear
45 2610A05667 5.33 6.45
Contact strap
46 2610A05669 1.94 2.35
Spring retaining ring
47 2610A05671 0.83 1.00
Retaining ring
48 2610A05744 0.83 1.00
Graduated Disc
49 2610A05674 6.54 7.91
Washer
50 2610A05675 4.10 4.96
Screw
51 2610A05694 5.83 7.05
Base Plate
52 2610A05691 7.58 9.17
Ball seat
53 2610A05693 0.83 1.00
Ball
54 2610A05692 0.83 1.00
Cover Plate
55 2610A11687 9.53 11.53
Base Plate
56 2610A05676 17.13 20.73
Base Plate
56 1619PA5054 15.71 19.01
Screw
57 2610A05734 1.18 1.43
Screw
58 2610A05702 18.19 22.01
Cap
58/1 2610A05677 1.18 1.43
Spacer
58/10 2610A05681 0.83 1.00
Contact strap
58/11 2610A05680 1.18 1.43
Adjustment Knob
58/12 2610A05689 1.94 2.35
Screw
58/13 2610A03381 1.18 1.43
Adjustment Knob
58/2 2610A05679 1.94 2.35
Contact strap
58/3 2610A03389 1.18 1.43
Screw
58/4 2610A03369 0.83 1.00
Screw
58/5 2610A05686 5.83 7.05
Bushing
58/6 2610A05685 5.33 6.45
Spacer
58/7 2610A05684 5.33 6.45
Contact retainer
58/8 2610A05683 5.83 7.05
Washer
58/9 2610A05682 0.83 1.00
Screw
59 2610A03382 0.83 1.00
Set screw
60 2610A03370 0.83 1.00
Screw
61 2610A05758 0.83 1.00
Bubble Level
62 2610A05718 8.45 10.22
Contact strap
63 2610A05697 0.83 1.00
viewfinder tube
64 2610A03383 2.71 3.28
Hex Socket Head Cap Screw
65 1619PA5043 0.83 1.00
Hex head tapping screw
67 1619PA5044 0.83 1.00
Screw
74 1619PA5234 0.83 1.00
Washer
75 1619PA5235 0.83 1.00
