Here you will find all available parts and drawings of the 'Bosch 0601611003 ( GOF1600 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

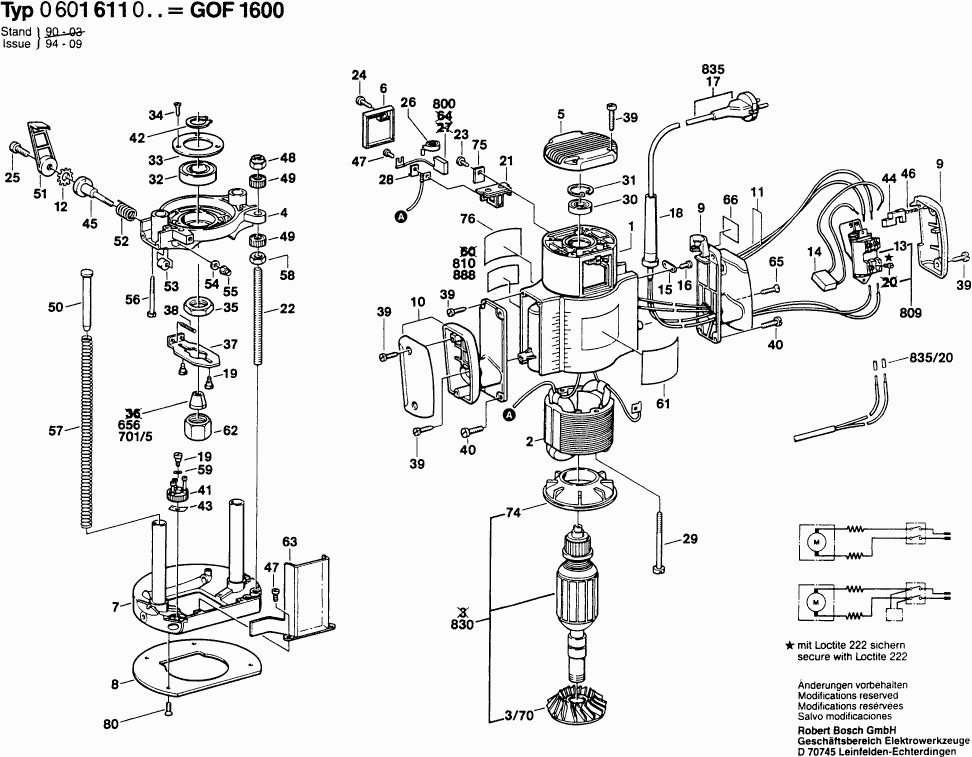

Technical drawing of model Bosch 0601611003 ( GOF1600 )

Spare parts list of model Bosch 0601611003 ( GOF1600 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing BLUE
1 3605108589 60.65 73.39
Field 220V
2 3604220531 60.65 73.39
Fan
3/70 3606610517 12.41 15.02
Fan Housing
4 3605702592 81.47 98.58
Housing Cover
5 3605500575 6.54 7.91
Sealing cap
6 3605500596 2.24 2.71
Base
7 3605702595 113.29 137.08
No longer available, no replacement
8 3600190515
Handle BLUE
9 3605133519 12.41 15.02
Handle BLUE
10 3605133520 12.41 15.02
Toothed lock washer
12 3600190516 1.94 2.35
No longer available, no replacement
13 3607200510
Suppression Filter
14 1607328034 3.31 4.01
Fastening Clamp
15 3601032500 5.83 7.05
No longer available, no replacement
16 2910611011
Grommet Ø 9,4 MM
18 3600707503 2.71 3.28
Shoulder Screw M4
19 3603415556 1.70 2.06
Brush Holder
21 1604336008 15.71 19.01
Set screw
22 3603500500 7.58 9.17
Tapping Screw DIN 7981-ST3,9x13-C-H
23 2910611018 1.18 1.43
Tapping Screw DIN 7981-ST3,9x16-C-H
24 2910611019 2.24 2.71
Hex Socket Head Cap Screw DIN 912-M6x16-8.8
25 2910141197 0.83 1.00
Spiral Spring
26 1614652001 2.71 3.28
Tab Washer
28 1611331007 1.70 2.06
Tapping Screw B 4,8x68 MM
29 1613412001 1.18 1.43
groove ball bearing 6200-2 RS/C 3
30 1900905276 23.75 28.74
Spring retaining ring
31 3600119507 1.94 2.35
groove ball bearing
32 3600900526 26.84 32.48
fixing plate
33 3600034503 5.83 7.05
Rec ct-sunk tapping screw
34 3603415559 1.70 2.06
Hex Nut
35 3603301522 7.58 9.17
No longer available, no replacement
37 3601961500
No longer available, no replacement
38 3604613502
Screw DIN 7982-ST4,8x19
39 2910611034 1.94 2.35
Screw 4x13 MM
40 3603415540 1.94 2.35
No longer available, no replacement
41 3600232503
Spring retaining ring DIN 471 25x1,2
42 2916650014 1.18 1.43
Leaf Spring
43 3601254501 4.70 5.69
Locking Lever
44 3602033500 1.18 1.43
Handle Axis
45 3603053503 23.75 28.74
Compression Spring
46 3604613503 1.94 2.35
Oval-Head Screw DIN 7985-M4x8-8.8-H
47 2910951118 1.18 1.43
Hex Nut DIN 985-M10-10
48 2915065007 1.94 2.35
No longer available, no replacement
49 2603345015
Guide Piece
50 3603120501 2.24 2.71
Adjusting lever
51 3602000509 6.54 7.91
Clamping Spring
52 3604651501 1.94 2.35
Adjusting Eccentric
53 3602202500 12.41 15.02
Plain Washer DIN 125-A4,3-ST
54 2916011010 0.83 1.00
Hex Nut DIN 985-M4-8
55 2915061002 0.83 1.00
Screw B 4,8x45 MM
56 3603415560 0.83 1.00
Compression Spring
57 3604619502 1.94 2.35
Hex Nut DIN 439-BM10-04
58 2915055108 0.83 1.00
Spring Washer
59 3916060500 0.83 1.00
Manufacturer's nameplate
61 3601119653 2.71 3.28
No longer available, no replacement
62 3603313507
No longer available, no replacement
63 3605510526
Tapping Screw DIN 7982-ST4,8x18-F-H
65 2910601433 0.83 1.00
No information available, not orderable
67 3601007502
Air-Deflector Ring
74 3600590504 4.10 4.96
Tab Washer
75 1601030022 1.18 1.43
No longer available, no replacement
80 2914411045
No longer available, no replacement
650/10 3602386501
Rim
650/20 2610996063 40.61 49.14
Plain Washer DIN 433-5,3-ST
650/30 2916011011 1.18 1.43
Socket head cap screw DIN 84-AM5x12-8.8
650/40 2910021154 0.83 1.00
No longer available, no replacement
650/50 2915011006
No longer available, no replacement
650/60 3603001518
Wing Screw M 6x16 MM
650/70 2603480003 1.94 2.35
Manufacturer's nameplate
650/80 3601119612 2.24 2.71
No longer available, no replacement
654 3605703528
Threaded Insert M 12x1 MM
655 3603523501 0.83 1.00
No longer available, no replacement
656 3608570505
Single-Head Eng. Wrench
657 2607950504 1.70 2.06
Single-Head Eng. Wrench DIN 894 SW27
658 1907950514 7.58 9.17
No longer available, no replacement
700 3605703529
Collet 1/4
701/5 3600499503 40.97 49.57
Collet 1/4 inch 3/8
701/5 3600499502 0.83 1.00
Carbon-Brush Set
800 1607014103 11.88 14.37
Socket head cap screw M3x6,5-4.8
809 2603410001 1.18 1.43
No longer available, no replacement
810 3601119779
No longer available, no replacement
816 3603029500
Vacuum Adapter
824 3608939626 0.83 1.00
No information available, not orderable
825 3608939611
Brush Bar
826 3607929500 7.58 9.17
Countersunk-Head Screw DIN 963-M5x25-4.8
827 2910761164 1.94 2.35
Armature 220V
830 3604011593 271.34 328.32
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
835 1607000228 20.42 24.71
Nameplate
888 160111A3H3 1.94 2.35
