Here you will find all available parts and drawings of the 'Bosch 0601613660 ( GOF1300CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

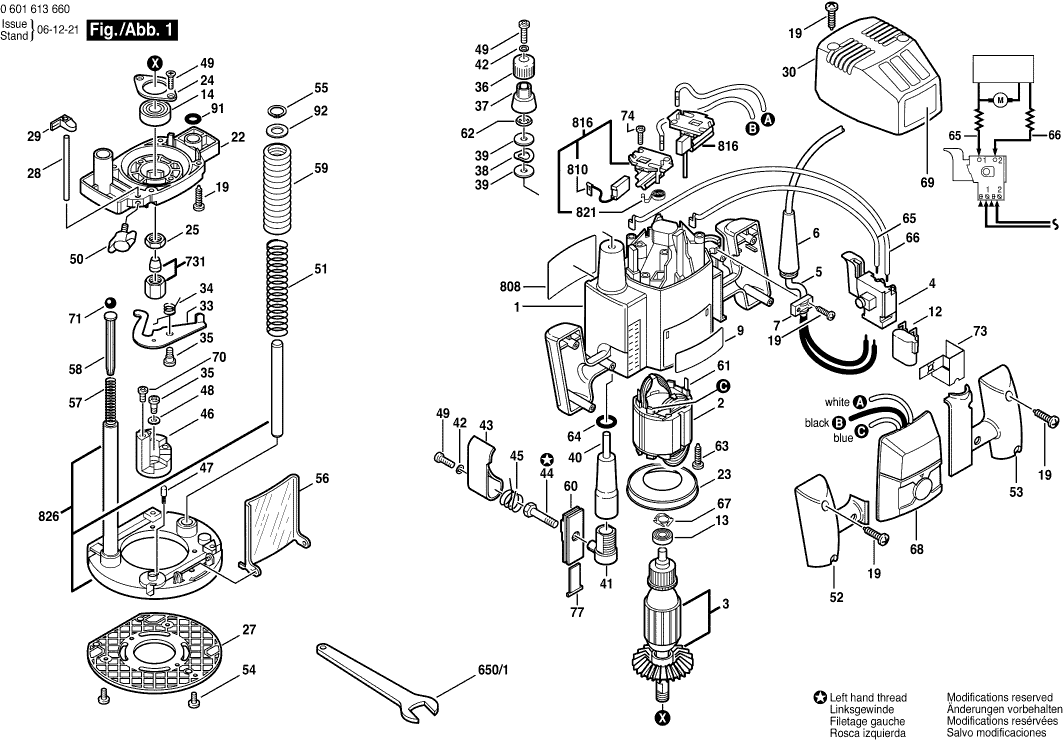

Technical drawing of model Bosch 0601613660 ( GOF1300CE )

Spare parts list of model Bosch 0601613660 ( GOF1300CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 3605108584 29.75 36.00
Field 230V
2 2610941203 55.25 66.85
Armature 230V
3 2610941202 209.26 253.20
No longer available, no replacement
4 2607200251
Power supply cord EU 4,25m 2 x 1,0mm H07 RN-F
5 3604460557 36.85 44.59
Grommet
6 2610947359 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
No longer available, no replacement
9 2610998943
Suppression Filter
12 1617328025 4.70 5.69
Ball guide
13 3600905513 9.53 11.53
Ball Bearing
14 1600900088 5.33 6.45
No longer available, no replacement
19 2610910566
Housing
22 2610997096 49.56 59.97
Air-Deflector Ring
23 3600590508 1.94 2.35
Retaining Plate
24 3600034506 5.33 6.45
Hex Nut
25 3603300502 2.71 3.28
Cover Plate
27 2610997099 15.71 19.01
Rod
28 2610997093 4.70 5.69
No longer available, no replacement
29 2610997094
Housing Cover
30 2610943199 13.93 16.86
No longer available, no replacement
33 3601021510
Torsion Spring
34 3604651502 1.18 1.43
Shoulder Screw M4
35 3603415556 1.70 2.06
Knob
36 3603231539 1.18 1.43
Indicator Ring
37 3600209500 2.71 3.28
Spring Washer
38 3600100528 0.83 1.00
Washer
39 3600100527 1.70 2.06
No longer available, no replacement
40 3600360507
Locking Piece
41 3600400507 2.24 2.71
Spring Lock Washer B 4 DIN 127
42 2916680005 0.83 1.00
Locking Lever
43 3602000510 1.94 2.35
Lock Bolt
44 3603450504 4.10 4.96
Lock Spring
45 3604651503 1.70 2.06
Depth-Gauge
46 2610997191 9.53 11.53
Ratchet Cap
47 2600590006 1.18 1.43
Spring Washer
48 3916060500 0.83 1.00
Oval-Head Screw DIN 7985-M4X12-4.8-H
49 2910641122 1.70 2.06
Wing Screw M6x25 MM
50 1613480009 1.18 1.43
No longer available, no replacement
51 2610997100
Handle Cover
52 2610943197 7.58 9.17
Handle Cover
53 2610943198 8.45 10.22
No longer available, no replacement
54 2610915161
Spring retaining ring DIN 471-12x1-FSt
55 2916650003 1.18 1.43
No longer available, no replacement
56 2610912599
No longer available, no replacement
57 3604613508
No longer available, no replacement
58 3603120502
Bellows
59 3605510548 4.70 5.69
No longer available, no replacement
60 3601010519
Blade terminal
61 1604477005 1.94 2.35
Retaining snap ring
62 3604680502 1.18 1.43
Tapping Screw
63 2610991306 1.18 1.43
O-Ring
64 3600210507 1.18 1.43
Cable
65 2610945855 1.94 2.35
Cable
66 2610945856 2.71 3.28
Spring Washer
67 3600150501 1.18 1.43
Control Unit 230V
68 1607233153 73.72 89.20
Nameplate
69 2610912471 1.94 2.35
Socket head cap screw
70 3603410504 1.70 2.06
Ball DIN 5401-4 MM-III-ST
71 1903230007 1.18 1.43
No longer available, no replacement
73 2610996090
Tapping Screw DIN 7981-ST2,9x13-C-H
74 2910611006 1.18 1.43
Cover
77 3601010521 1.94 2.35
O-Ring 12,0x2,0 MM
91 1610210233 2.24 2.71
Plain Washer
92 2610913282 0.83 1.00
Single-Head Eng. Wrench
650/1 2610992417 12.41 15.02
No information available, not orderable
731 2608570125
Nameplate
808 2610948995 1.94 2.35
Carbon-Brush Set
810 2610007957 8.45 10.22
Brush Holder
816 2610013632 23.75 28.74
No longer available, no replacement
821 3604652501
Base
826 2610997115 81.47 98.58
