Here you will find all available parts and drawings of the 'Bosch 3601F26100 ( GOF1250LCE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

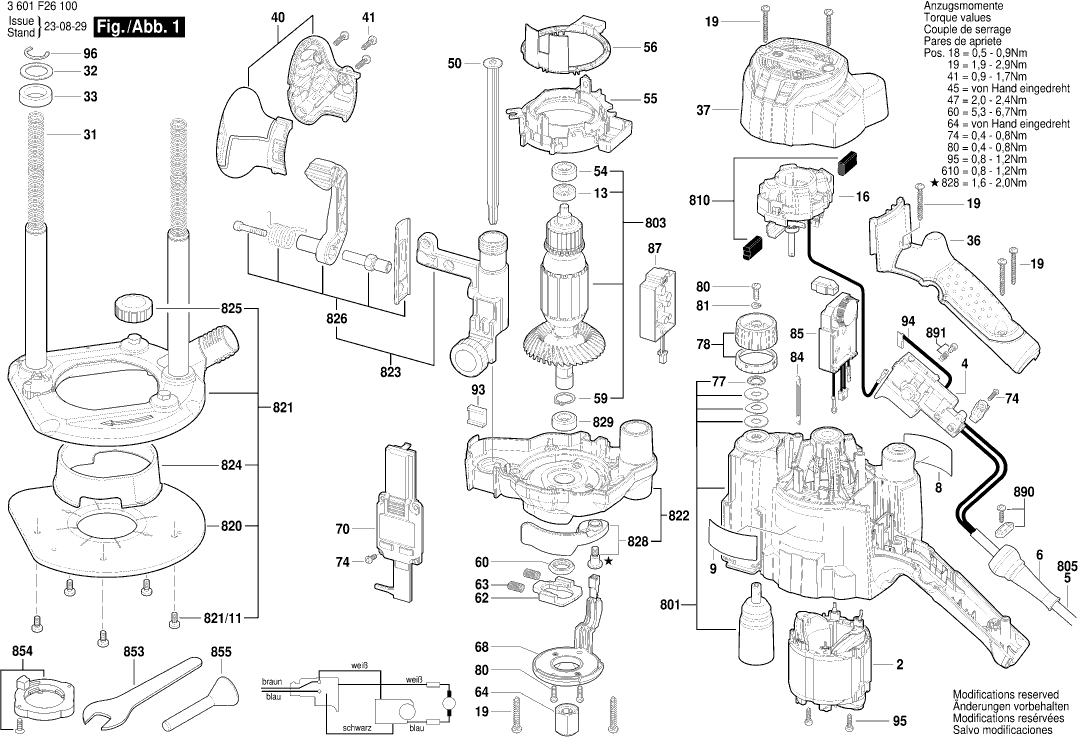

Technical drawing of model Bosch 3601F26100 ( GOF1250LCE )

Spare parts list of model Bosch 3601F26100 ( GOF1250LCE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Pole Shoe 230V
2 2604220763 49.56 59.97
Switch
4 2607200688 12.41 15.02
Cable Sleeve Ø6,4-Ø7,0x66 MM
6 2600707075 1.94 2.35
Nameplate
8 2601112365 2.24 2.71
Manufacturer's nameplate GOF 1250 LCE
9 2601112878 4.10 4.96
groove ball bearing 7x19x6
13 2600905086 4.70 5.69
Brush Plate
16 2604337124 29.75 36.00
Torx Oval-Head Screw 4x30
19 2603490025 0.83 1.00
Compression Spring
31 2604618008 6.54 7.91
Plain Washer
32 2600101127 2.71 3.28
Damping Element
33 2600102078 4.70 5.69
Handle
36 2605132076 9.53 11.53
Housing Cover
37 2605132077 12.41 15.02
Handle
40 2605133040 15.71 19.01
Screw 4x16
41 2603490022 0.83 1.00
Guide Piece
50 2603101067 4.70 5.69
Rubber Ring
54 1600206036 1.18 1.43
Air-Deflector Ring
55 2600148017 5.83 7.05
Cover Ring
56 2600148018 5.33 6.45
Retaining clip DIN 471-15x1-FSt
59 2916650006 1.18 1.43
Hex Nut
60 2603300021 7.58 9.17
Clamping Piece
62 2602305066 10.73 12.98
Compression Spring
63 2604618009 6.54 7.91
Chuck
64 2600400077 42.20 51.06
Illumination Equipment
68 2600015014 44.82 54.23
Digital Display
70 2607230146 73.72 89.20
Torx Oval-Head Screw 3x10
74 2603490017 1.70 2.06
Retaining snap ring
77 2600200056 0.83 1.00
Control Knob
78 2600451006 8.45 10.22
Torx Oval-Head Screw
80 2912761122 1.94 2.35
Locking washer
81 2600118025 1.94 2.35
Blade terminal
84 1604477005 1.94 2.35
Speed governor
85 1607233549 67.25 81.37
Power Stage
87 2609270029 23.75 28.74
U section
93 2602317075 3.31 4.01
Connecting Cable
94 2604448373 5.33 6.45
Tapping Screw
95 2603435086 1.18 1.43
Locking washer
96 2600224011 2.71 3.28
Motor Housing
801 2605105971 49.56 59.97
Armature 230V
803 2604011957 130.32 157.69
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Carbon-Brush Set
810 2604321958 9.53 11.53
Sliding Plate
820 2600009022 26.84 32.48
base plate
821 2601016110 101.94 123.35
Oval-Head Screw DIN 7985-M4X8-4.8
821/11 2910641118 1.18 1.43
Fan Housing
822 2605500215 91.56 110.79
Adjustment Device
823 2601099903 40.61 49.14
Suction Hood
824 2600290065 7.58 9.17
No longer available, no replacement
825 2603481024
Lever
826 2601902007 18.19 22.01
Lever
828 1600A02DS2 7.58 9.17
Ball Bearing
829 16009000AD 5.83 7.05
No longer available, no replacement
853 1907950511
Guide Sleeve
854 2610991370 26.84 32.48
Centering Pin
855 2603105140 20.42 24.71
Fastening parts kit
890 2607001305 3.31 4.01
Cross Recessed-Head Screw
891 2603429010 1.94 2.35
