Here you will find all available parts and drawings of the 'Bosch 0601359103 (GNS14W)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

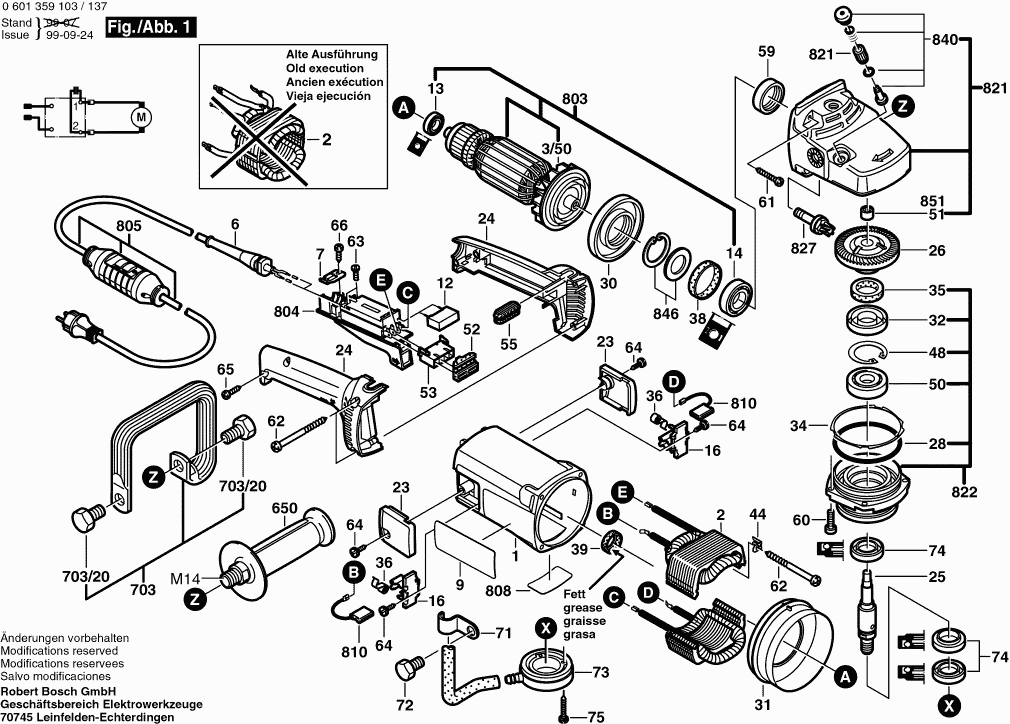

Technical drawing of model Bosch 0601359103 (GNS14W)
Spare parts list of model Bosch 0601359103 (GNS14W)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108144 | |||
| Field | ||||
| 2 | 1604220389 | 37.50 | 45.38 | |
| Fan | ||||
| 3/50 | 1606610127 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 1600703023 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119171 | 2.87 | 3.47 | |
| Suppression Filter | ||||
| 12 | 1607328035 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 14 | 1600905028 | 12.09 | 14.63 | |
| Brush Holder | ||||
| 16 | 1604336027 | 17.60 | 21.30 | |
| Sealing cap | ||||
| 23 | 1605500150 | 3.44 | 4.16 | |
| Handle | ||||
| 24 | 1605132117 | 9.47 | 11.46 | |
| Grinding Spindle | ||||
| 25 | 1603523104 | 88.83 | 107.48 | |
| Crown Gear | ||||
| 26 | 1606333255 | 100.27 | 121.33 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 30 | 1600591010 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 31 | 1600591011 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 36 | 1604652015 | 2.86 | 3.46 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Holding Bracket | ||||
| 44 | 1601334008 | 2.18 | 2.64 | |
| Spring retaining ring | ||||
| 48 | 1600119010 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 50 | 3600905134 | 10.90 | 13.19 | |
| Plain bearing | ||||
| 51 | 1600200031 | 2.86 | 3.46 | |
| Cable routing | ||||
| 52 | 1602388027 | 2.40 | 2.90 | |
| Socket Housing | ||||
| 53 | 1605190038 | 1.49 | 1.80 | |
| Storage Ledge | ||||
| 55 | 1602388029 | 1.49 | 1.80 | |
| Threaded Ring | ||||
| 59 | 1603344065 | 11.65 | 14.10 | |
| Thread-forming tap. Screw | ||||
| 60 | 1603435023 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 61 | 2912401038 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | 1603435024 | 1.49 | 1.80 | |
| Pan head screw | ||||
| 63 | 1603410014 | 1.49 | 1.80 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 66 | 2910211019 | 1.00 | 1.21 | |
| Clamp | ||||
| 71 | 1601300004 | 2.08 | 2.52 | |
| Hex Screw | ||||
| 72 | 2603450007 | 5.81 | 7.03 | |
| Connecting Flange | ||||
| 73 | 1605703061 | 27.81 | 33.65 | |
| Rotary shaft lip seal | ||||
| 74 | 1600283004 | 7.46 | 9.03 | |
| Thread-forming tap. Screw | ||||
| 75 | 1603435022 | 1.00 | 1.21 | |
| Auxiliary Handle | ||||
| 650 | 160202509Z | 14.94 | 18.08 | |
| Auxiliary Handle | ||||
| 650 | 16020250A1 | 13.13 | 15.89 | |
| Parts Set | ||||
| 703 | 1607000209 | 0.83 | 1.00 | |
| Hex Screw | ||||
| 703/20 | 2603450007 | 5.81 | 7.03 | |
| Armature | ||||
| 803 | 1604011160 | 158.14 | 191.35 | |
| Switch | ||||
| 804 | 1607200103 | 27.81 | 33.65 | |
| Power supply cord | ||||
| 805 | 3604460128 | 158.14 | 191.35 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 821 | 1607000945 | 80.75 | 97.71 | |
| Bearing Flange | ||||
| 822 | 1607000946 | 58.79 | 71.14 | |
| Bevel Gear | ||||
| 827 | 1607000948 | 126.98 | 153.65 | |
| Push-Button | ||||
| 840 | 1607000206 | 10.90 | 13.19 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| Needle-Roller Bearing | ||||
| 851 | 2600910001 | 4.18 | 5.06 | |
