Here you will find all available parts and drawings of the 'Bosch 3601E29400 ( GNA75-16 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

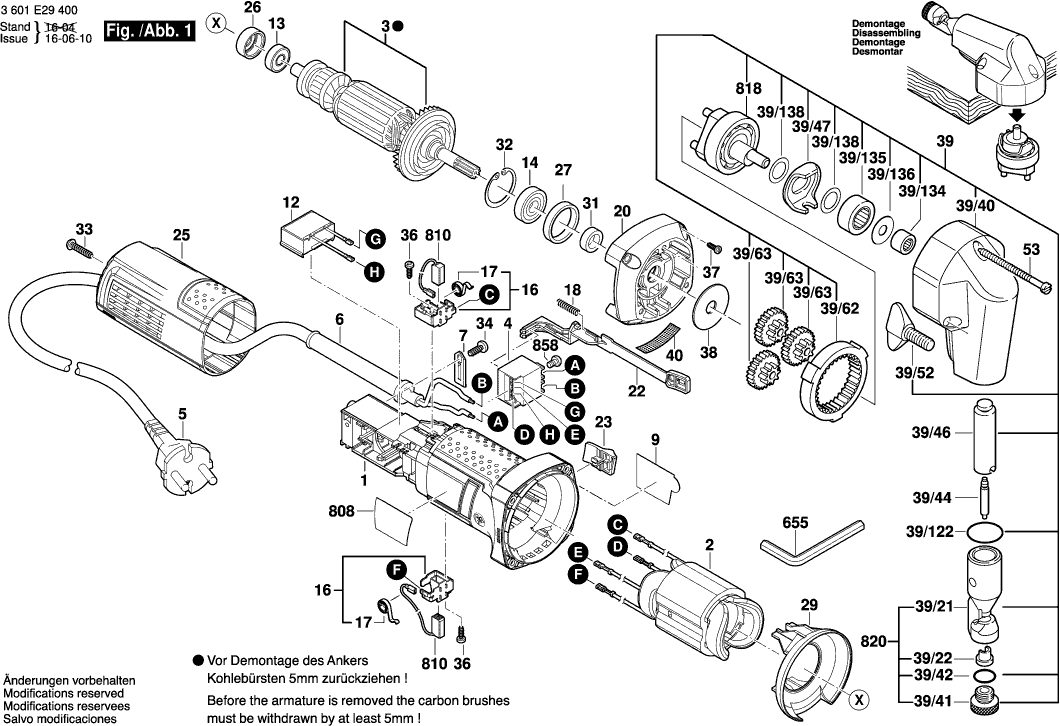

Technical drawing of model Bosch 3601E29400 ( GNA75-16 )
Spare parts list of model Bosch 3601E29400 ( GNA75-16 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P10958 | 4.10 | 4.96 | |
| Field | ||||
| 2 | 1619P08334 | 14.80 | 17.91 | |
| Field | ||||
| 2 | 160422059E | 13.93 | 16.86 | |
| Armature | ||||
| 3 | 1604010B5S | 55.25 | 66.85 | |
| Switch | ||||
| 4 | 1607200238 | 7.58 | 9.17 | |
| Power supply cord EU 4,15m 2x1,0mm H07RN-F | ||||
| 5 | 3604460185 | 20.42 | 24.71 | |
| Grommet Ø8,3-Ø9,4x95 MM | ||||
| 6 | 2600703011 | 2.24 | 2.71 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110584 | 1.94 | 2.35 | |
| Suppression Filter | ||||
| 12 | 1619P02827 | 4.70 | 5.69 | |
| Ball Bearing 7x19x6 MM | ||||
| 13 | 1619P00456 | 2.24 | 2.71 | |
| groove ball bearing 8 x 24 x 8 ; NTN 628LLBC3 / 1 | ||||
| 14 | 3600905162 | 7.58 | 9.17 | |
| Brush Holder | ||||
| 16 | 1619P01811 | 2.24 | 2.71 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 18 | 1619P11487 | 0.83 | 1.00 | |
| Intermediate Flange | ||||
| 20 | 3605700201 | 40.61 | 49.14 | |
| Adjusting Slide | ||||
| 22 | 1619P10967 | 0.83 | 1.00 | |
| Switch Button | ||||
| 23 | 1619P10969 | 0.83 | 1.00 | |
| Housing Cover | ||||
| 25 | 1619P10963 | 2.71 | 3.28 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.18 | 1.43 | |
| Rubber Ring | ||||
| 27 | 3600206015 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 1619P10970 | 0.83 | 1.00 | |
| Bushing | ||||
| 31 | 3600300079 | 6.54 | 7.91 | |
| Spring retaining ring | ||||
| 32 | 3600283046 | 1.94 | 2.35 | |
| Torx Oval-Head Screw 4x20 | ||||
| 33 | 2603490023 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x12 | ||||
| 34 | 2603490021 | 0.83 | 1.00 | |
| Lens Head Screw 3x10 ST | ||||
| 36 | 1613435034 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x30 | ||||
| 37 | 2603490025 | 0.83 | 1.00 | |
| Shim washer | ||||
| 38 | 3600100102 | 1.94 | 2.35 | |
| Assembly kit | ||||
| 39 | 3607000116 | 342.01 | 413.83 | |
| O-Ring 20,0x1,0 MM | ||||
| 39/122 | 3600210012 | 2.24 | 2.71 | |
| Needle bearing Ø7 MM | ||||
| 39/134 | 2600910006 | 2.71 | 3.28 | |
| Track-Supporting Roller | ||||
| 39/135 | 3600905158 | 18.19 | 22.01 | |
| Shim ring | ||||
| 39/136 | 3600102050 | 1.18 | 1.43 | |
| Shim ring | ||||
| 39/138 | 3600102049 | 1.94 | 2.35 | |
| Die Carrier | ||||
| 39/21 | 3606455044 | 148.65 | 179.87 | |
| Lower Die | ||||
| 39/22 | 3608639036 | 26.84 | 32.48 | |
| Housing | ||||
| 39/40 | 3605106109 | 33.45 | 40.47 | |
| Round Nut | ||||
| 39/41 | 3603301020 | 10.73 | 12.98 | |
| O-Ring 8x2,5 MM | ||||
| 39/42 | 1900210105 | 1.18 | 1.43 | |
| Nibbling Punch | ||||
| 39/44 | 3608639037 | 18.19 | 22.01 | |
| Tappet | ||||
| 39/46 | 3603100045 | 15.71 | 19.01 | |
| U-Sheet | ||||
| 39/47 | 3602311052 | 3.31 | 4.01 | |
| Wing Screw | ||||
| 39/52 | 3603480005 | 10.73 | 12.98 | |
| Ring Gear | ||||
| 39/62 | 3600112004 | 4.10 | 4.96 | |
| Wheel | ||||
| 39/63 | 3600112005 | 2.71 | 3.28 | |
| Grating | ||||
| 40 | 3600105014 | 7.58 | 9.17 | |
| Torx Oval-Head Screw | ||||
| 53 | 3603435055 | 2.71 | 3.28 | |
| Nameplate | ||||
| 808 | 3601119918 | 6.54 | 7.91 | |
| Carbon-Brush Set | ||||
| 810 | 1619P11715 | 4.70 | 5.69 | |
| Planetary-Gear Carrier | ||||
| 818 | 1600A003A0 | 130.32 | 157.69 | |
| Lower Die Ring | ||||
| 820 | 3607030493 | 209.26 | 253.20 | |
| Oval-Head Screw DIN7985-M3,5x5-4.8-H | ||||
| 858 | 2910641081 | 0.83 | 1.00 | |
