Here you will find all available parts and drawings of the 'Bosch 3601E29500 ( GNA18V-16 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

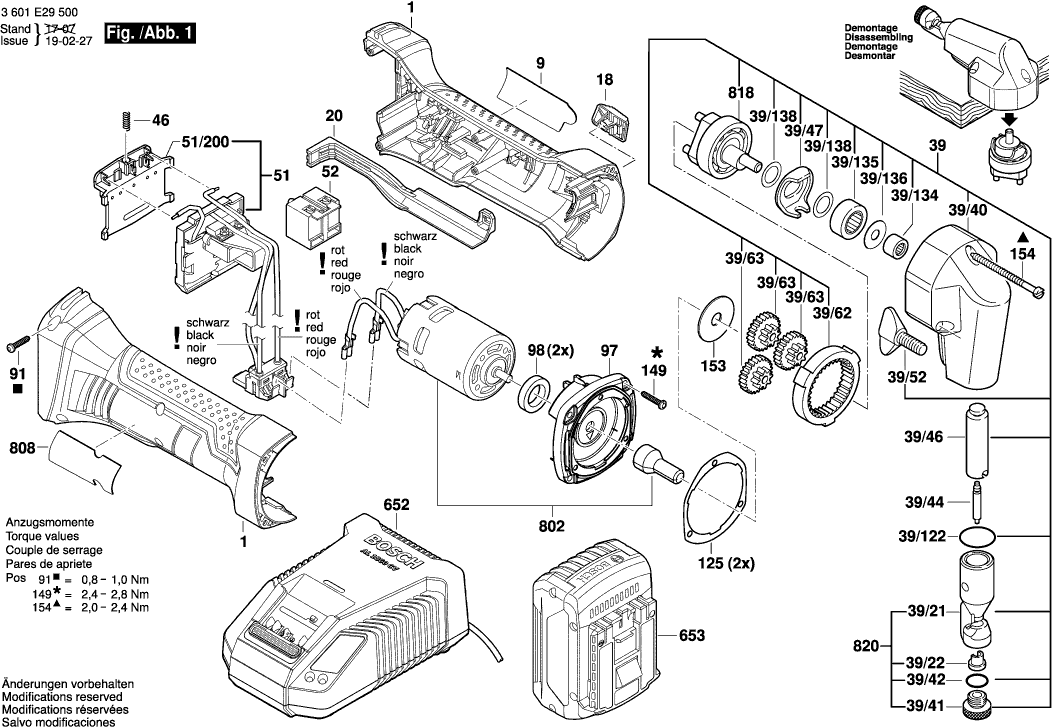

Technical drawing of model Bosch 3601E29500 ( GNA18V-16 )
Spare parts list of model Bosch 3601E29500 ( GNA18V-16 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 1605108282 | 18.19 | 22.01 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110617 | 1.94 | 2.35 | |
| Switch Button | ||||
| 18 | 1602025071 | 0.83 | 1.00 | |
| Adjusting Slide | ||||
| 20 | 1602319023 | 5.83 | 7.05 | |
| Assembly kit | ||||
| 39 | 3607000116 | 342.01 | 413.83 | |
| O-Ring 20,0x1,0 MM | ||||
| 39/122 | 3600210012 | 2.24 | 2.71 | |
| Needle bearing Ø7 MM | ||||
| 39/134 | 2600910006 | 2.71 | 3.28 | |
| Track-Supporting Roller | ||||
| 39/135 | 3600905158 | 18.19 | 22.01 | |
| Shim ring | ||||
| 39/136 | 3600102050 | 1.18 | 1.43 | |
| Shim ring | ||||
| 39/138 | 3600102049 | 1.94 | 2.35 | |
| Die Carrier | ||||
| 39/21 | 3606455044 | 148.65 | 179.87 | |
| Lower Die | ||||
| 39/22 | 3608639036 | 26.84 | 32.48 | |
| Housing | ||||
| 39/40 | 3605106109 | 33.45 | 40.47 | |
| Round Nut | ||||
| 39/41 | 3603301020 | 10.73 | 12.98 | |
| O-Ring 8x2,5 MM | ||||
| 39/42 | 1900210105 | 1.18 | 1.43 | |
| Nibbling Punch | ||||
| 39/44 | 3608639037 | 18.19 | 22.01 | |
| Tappet | ||||
| 39/46 | 3603100045 | 15.71 | 19.01 | |
| U-Sheet | ||||
| 39/47 | 3602311052 | 3.31 | 4.01 | |
| Wing Screw | ||||
| 39/52 | 3603480005 | 10.73 | 12.98 | |
| Ring Gear | ||||
| 39/62 | 3600112004 | 4.10 | 4.96 | |
| Wheel | ||||
| 39/63 | 3600112005 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Electronics Module | ||||
| 51 | 1607233340 | 40.61 | 49.14 | |
| Contact retainer | ||||
| 51/200 | 1609280478 | 9.53 | 11.53 | |
| On-Off Switch | ||||
| 52 | 2607202071 | 12.41 | 15.02 | |
| Thread-forming tap. Screw | ||||
| 91 | 1603435071 | 0.83 | 1.00 | |
| Intermediate Flange | ||||
| 97 | 3605700214 | 4.10 | 4.96 | |
| Felt Washer | ||||
| 98 | 3600200041 | 1.70 | 2.06 | |
| Flange sealing | ||||
| 125 | 3600109023 | 4.70 | 5.69 | |
| Torx Oval-Head Screw 4x25 | ||||
| 149 | 2603490024 | 1.18 | 1.43 | |
| Shim washer | ||||
| 153 | 3600100102 | 1.94 | 2.35 | |
| Torx Oval-Head Screw | ||||
| 154 | 1619P09645 | 0.83 | 1.00 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 652 | 2607225921 | 101.94 | 123.35 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 653 | 2607337069 | 101.94 | 123.35 | |
| DC motor | ||||
| 802 | 3607031880 | 130.32 | 157.69 | |
| Nameplate | ||||
| 808 | 3601119924 | 4.10 | 4.96 | |
| Planetary-Gear Carrier | ||||
| 818 | 1600A003A0 | 130.32 | 157.69 | |
| Lower Die Ring | ||||
| 820 | 3607030493 | 209.26 | 253.20 | |
