Here you will find all available parts and drawings of the 'Bosch 0601429121 (GML24V-CD)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

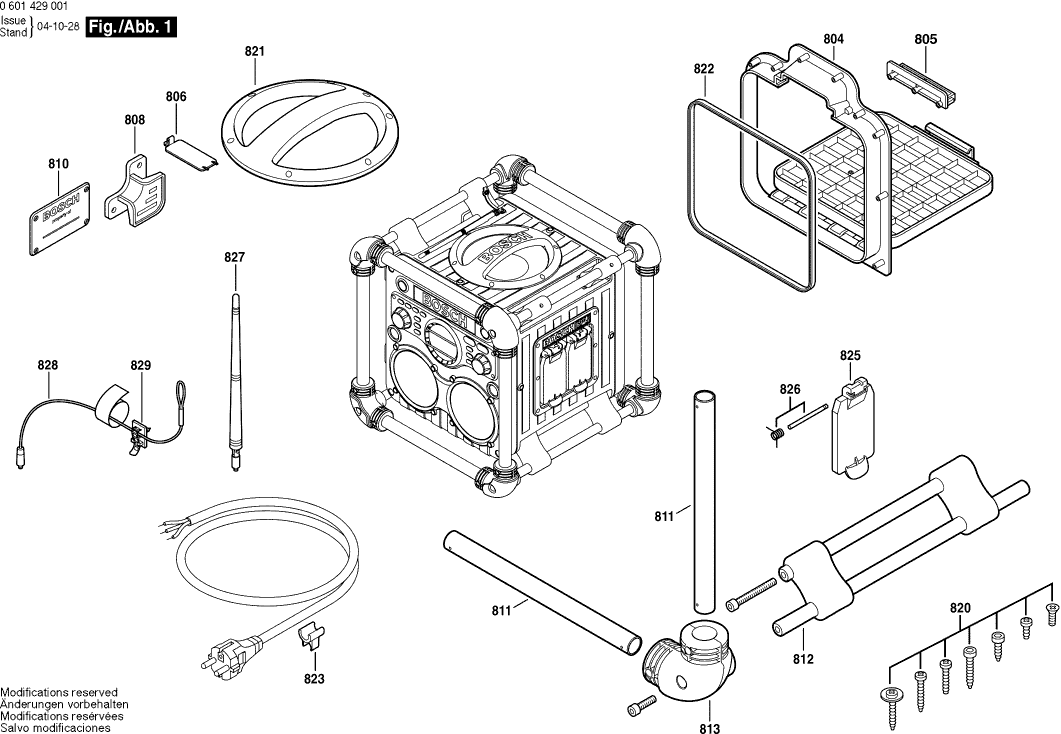

Technical drawing of model Bosch 0601429121 (GML24V-CD)
Spare parts list of model Bosch 0601429121 (GML24V-CD)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hinge | ||||
| 804 | 2610923574 | 16.79 | 20.32 | |
| Door lock | ||||
| 805 | 2610923575 | 2.40 | 2.90 | |
| Battery Tray | ||||
| 806 | 2610923576 | 2.08 | 2.52 | |
| Holding Fixture | ||||
| 808 | 2610923578 | 4.94 | 5.98 | |
| Sticker | ||||
| 810 | 2610923580 | 3.44 | 4.16 | |
| Longitudinal Strut | ||||
| 811 | 2610923581 | 7.46 | 9.03 | |
| Assembly Frame | ||||
| 812 | 2610923582 | 18.94 | 22.92 | |
| Elbow Piece | ||||
| 813 | 2610923583 | 4.94 | 5.98 | |
| Assembly Kit | ||||
| 820 | 2610923590 | 8.35 | 10.10 | |
| Handle | ||||
| 821 | 2610923591 | 7.46 | 9.03 | |
| Seal | ||||
| 822 | 2610925221 | 7.46 | 9.03 | |
| Cable Cleat | ||||
| 823 | 2610925223 | 1.49 | 1.80 | |
| Protective Flap | ||||
| 825 | 2610924256 | 4.94 | 5.98 | |
| Assembly Kit | ||||
| 826 | 2610924257 | 1.49 | 1.80 | |
| Rod Antenna | ||||
| 827 | 2610925217 | 7.46 | 9.03 | |
| Antenna | ||||
| 828 | 2610925218 | 12.82 | 15.51 | |
| Assembly Kit | ||||
| 829 | 2610925219 | 2.86 | 3.46 | |
