Here you will find all available parts and drawings of the 'Bosch 0601193008 (GMB32)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

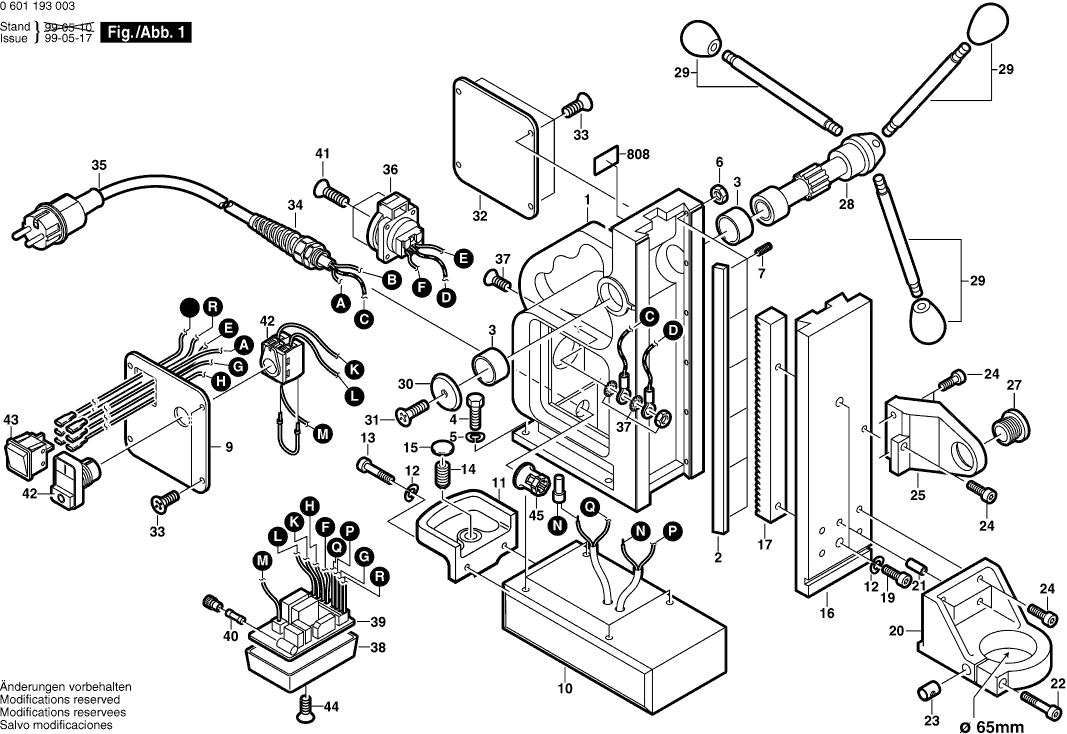

Technical drawing of model Bosch 0601193008 (GMB32)
Spare parts list of model Bosch 0601193008 (GMB32)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 3609201501 | |||
| No information available, not orderable | ||||
| 2 | 3609201502 | |||
| No information available, not orderable | ||||
| 3 | 3609201503 | |||
| No information available, not orderable | ||||
| 4 | 2911061248 | |||
| No information available, not orderable | ||||
| 5 | 2916690007 | |||
| No longer available, no replacement | ||||
| 6 | 2915011006 | |||
| Set screw | ||||
| 7 | 2912040163 | 13.02 | 15.75 | |
| No information available, not orderable | ||||
| 9 | 3609201504 | |||
| Magnetic Base | ||||
| 10 | 3609201505 | 678.88 | 821.44 | |
| Retaining Bracket | ||||
| 11 | 3609201506 | 91.33 | 110.51 | |
| No longer available, no replacement | ||||
| 12 | 2916690005 | |||
| Hex Socket Head Cap Screw | ||||
| 13 | 2910141201 | 2.40 | 2.90 | |
| Ball Thrust Screw | ||||
| 14 | 3609201507 | 16.66 | 20.16 | |
| Cover | ||||
| 15 | 3609201508 | 4.58 | 5.54 | |
| Guide Block | ||||
| 16 | 3609201509 | 16.66 | 20.16 | |
| Toothed rack | ||||
| 17 | 3609201510 | 146.07 | 176.74 | |
| Hex Socket Head Cap Screw | ||||
| 19 | 2910141203 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 20 | 3609201511 | |||
| Straight Pin | ||||
| 21 | 2917891147 | 5.96 | 7.21 | |
| Hex Socket Head Cap Screw | ||||
| 22 | 2910141217 | 4.58 | 5.54 | |
| Bolt | ||||
| 23 | 3609201512 | 14.82 | 17.93 | |
| Hex Socket Head Cap Screw | ||||
| 24 | 2910145197 | 1.32 | 1.60 | |
| Side Holder | ||||
| 25 | 3609201513 | 126.98 | 153.65 | |
| Screw | ||||
| 27 | 3609201514 | 13.02 | 15.75 | |
| Pinion Shaft | ||||
| 28 | 3609201515 | 234.56 | 283.82 | |
| Rotary Handle | ||||
| 29 | 3609201516 | 67.98 | 82.26 | |
| Cover Disc | ||||
| 30 | 3609201517 | 45.52 | 55.08 | |
| Raised counters head scre | ||||
| 31 | 2910901197 | 1.32 | 1.60 | |
| Rear Panel | ||||
| 32 | 3609201518 | 61.93 | 74.94 | |
| No information available, not orderable | ||||
| 33 | 2910891116 | |||
| Cord guard | ||||
| 34 | 3609201519 | 26.62 | 32.21 | |
| Power supply cord | ||||
| 35 | 3609201520 | 26.62 | 32.21 | |
| Socket-Outlet Unit | ||||
| 36 | 3609201521 | 91.33 | 110.51 | |
| No information available, not orderable | ||||
| 37 | 3609201522 | |||
| Switch Housing | ||||
| 38 | 3609201523 | 41.30 | 49.97 | |
| Control Unit | ||||
| 39 | 3609201524 | 435.14 | 526.52 | |
| Fuse | ||||
| 40 | 3609201525 | 3.04 | 3.68 | |
| No information available, not orderable | ||||
| 41 | 2910891122 | |||
| Motor Protection Switch | ||||
| 42 | 3609201526 | 114.26 | 138.25 | |
| On-Off Switch | ||||
| 43 | 3609201527 | 33.33 | 40.33 | |
| Screw | ||||
| 44 | 3609201528 | 5.27 | 6.38 | |
| Cable Cleat | ||||
| 45 | 3609201533 | 16.66 | 20.16 | |
| Carrying Case | ||||
| 652 | 3609201529 | 234.56 | 283.82 | |
| No information available, not orderable | ||||
| 653 | 3609201530 | |||
| No information available, not orderable | ||||
| 654 | 3609201532 | |||
| No information available, not orderable | ||||
| 655 | 3609201531 | |||
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
