Here you will find all available parts and drawings of the 'Bosch 0601128003 ( GMB10-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

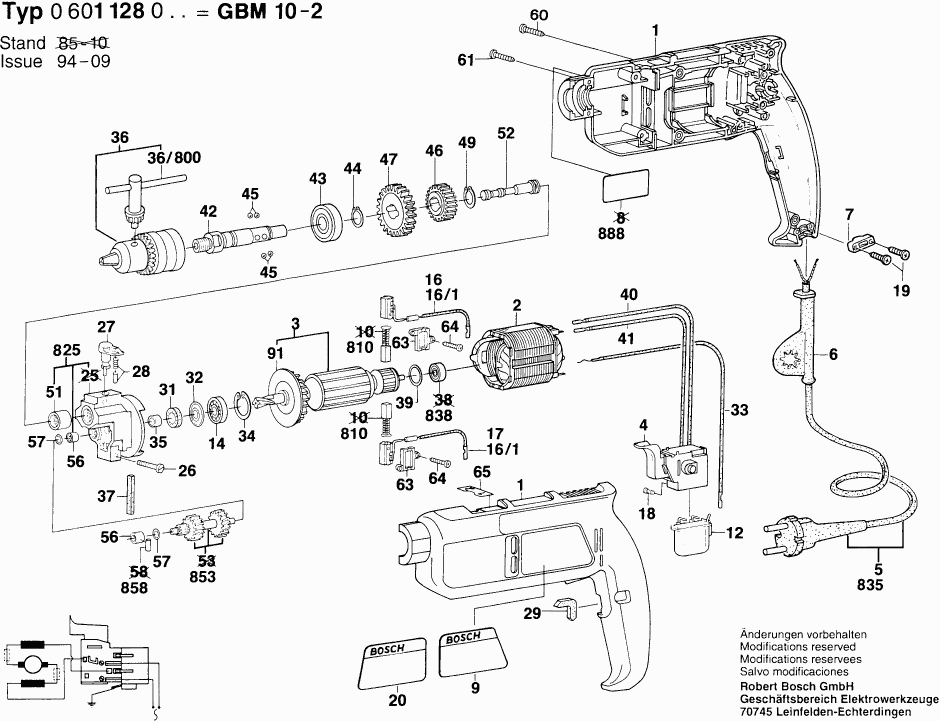

Technical drawing of model Bosch 0601128003 ( GMB10-2 )

Spare parts list of model Bosch 0601128003 ( GMB10-2 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605104212 29.75 36.00
Field 240V
2 2604220411 18.19 22.01
No longer available, no replacement
3 2604010553
Switch
4 2607200260 8.45 10.22
Grommet Ø6,9 MM
6 2600707059 2.24 2.71
Grommet Ø11,6-Ø12,5x84 MM
6 2600707060 1.94 2.35
Grommet Ø8,8 MM
6 2600707061 1.94 2.35
Cable Clip
7 2601035001 1.18 1.43
Sticker
9 2601110439 0.83 1.00
No longer available, no replacement
12 2607329114
groove ball bearing 9x24x7
14 2600905021 6.54 7.91
No longer available, no replacement
16 2604465054
No longer available, no replacement
17 2604465054
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Tapping Screw DIN 7981-ST3,9x16-C-H
19 2910611019 2.24 2.71
Reference Plate
20 2601110440 0.83 1.00
Cyl Head tapping screw
26 2603435005 0.83 1.00
Rotary Knob
27 2602026042 5.33 6.45
Ratchet Cap
28 2600590006 1.18 1.43
No longer available, no replacement
29 2601022000
Felt Washer
31 2600108002 1.70 2.06
Cupped Washer
32 2600500002 1.18 1.43
Earth Conductor
33 2604448097 1.18 1.43
Spring retaining ring DIN 472-24x1,2 MM
34 2916660008 1.70 2.06
Receptacle
35 2600400008 1.18 1.43
Boorhouder 1/2 10
36 1608571054 0.83 1.00
Chuck Wrench SG2
36/800 2607950007 5.33 6.45
Felt Strip
37 2601005009 1.18 1.43
O-Ring 15x2 MM
39 1900210012 0.83 1.00
Connecting Cable L=154 MM WHITE
40 2604448000 1.18 1.43
Connecting Cable L=124 MM WHITE
41 2604448018 1.94 2.35
Drilling Spindle 1/2"-20 UNF
42 2606135017 44.82 54.23
groove ball bearing 17x35x10
43 1900905163 8.45 10.22
Spring retaining ring DIN 471 17x1 MM
44 2916650008 1.18 1.43
Ball DIN 5401-3,5 MM-III-ST
45 1903230006 1.70 2.06
Cylindrical Gear Z=35
46 2606317051 10.73 12.98
Cylindrical Gear Z=48
47 2606317050 12.41 15.02
Retaining clip DIN 471-15x1-FSt
49 2916650006 1.18 1.43
Needle bearing
51 2600910000 4.70 5.69
Control Shaft
52 2603105035 8.45 10.22
Needle-Roller Bearing Ø6 MM
56 2600914010 2.24 2.71
Shim 0,3 MM
57 2600100607 1.18 1.43
Tapping Screw DIN 7981-3,9x19-C-Z-ST
60 2912401020 0.83 1.00
Torx Oval-Head Screw 3x18
61 2603490018 0.83 1.00
No longer available, no replacement
63 2601015054
Torx Oval-Head Screw 3x10
64 2603490017 1.70 2.06
Sticker
65 2601110445 1.18 1.43
Fan
91 2606610022 3.31 4.01
Carbon-Brush Set
810 2604321905 8.45 10.22
No longer available, no replacement
825 2605807911
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
835 1607000227 20.42 24.71
No longer available, no replacement
838 2600420900
Spindle With Gear Z= 9/22/21
853 2606100912 36.85 44.59
O-Ring 28x3 MM
858 1900210129 1.94 2.35
Nameplate
888 160111A3H3 1.94 2.35
