Here you will find all available parts and drawings of the 'Bosch 3601K63200 (GLL2-80P)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

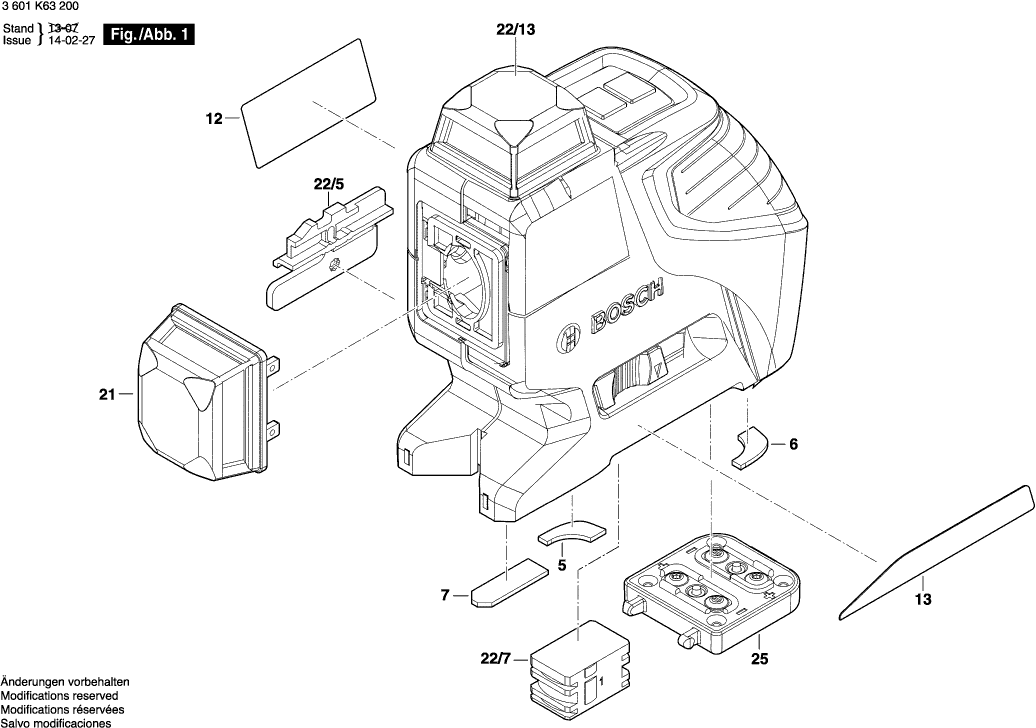

Technical drawing of model Bosch 3601K63200 (GLL2-80P)
Spare parts list of model Bosch 3601K63200 (GLL2-80P)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Casing Foot | ||||
| 5 | 1618C00325 | 1.00 | 1.21 | |
| Casing Foot | ||||
| 6 | 1618C00326 | 1.00 | 1.21 | |
| Casing Foot | ||||
| 7 | 1618C01699 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 12 | 1618C00348 | |||
| Adhesive Label | ||||
| 13 | 1618C00349 | 2.18 | 2.64 | |
| Window | ||||
| 21 | 1618C01774 | 17.60 | 21.30 | |
| Window | ||||
| 22/13 | 1618C01773 | 26.62 | 32.21 | |
| Switch Slide | ||||
| 22/5 | 1618C0012T | 1.32 | 1.60 | |
| Nut | ||||
| 22/7 | 1618C01752 | 4.58 | 5.54 | |
| Battery Cover | ||||
| 25 | 1618C01707 | 4.58 | 5.54 | |
