Here you will find all available parts and drawings of the 'Bosch 3601F75000 (GKT55GCE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

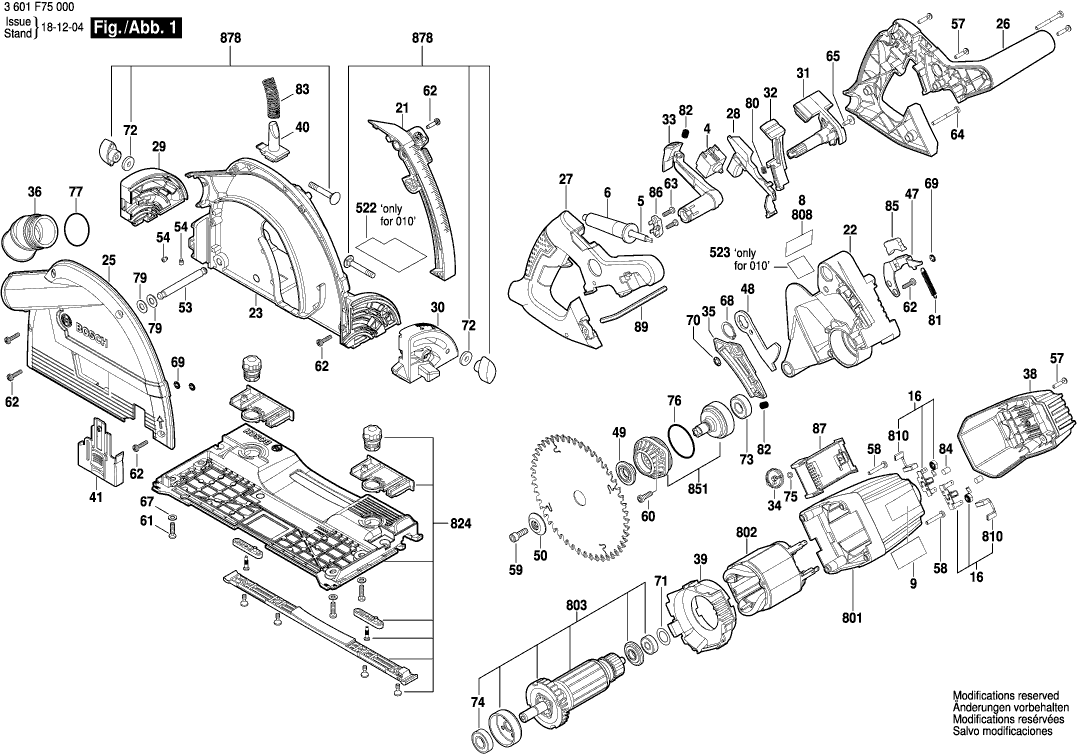

Technical drawing of model Bosch 3601F75000 (GKT55GCE)
Spare parts list of model Bosch 3601F75000 (GKT55GCE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| On-Off Switch | ||||
| 4 | 2607200692 | 21.30 | 25.77 | |
| Power supply cord | ||||
| 5 | 2604460342 | 58.03 | 70.22 | |
| Grommet | ||||
| 6 | 2600707079 | 2.86 | 3.46 | |
| Manufacturer's nameplate | ||||
| 9 | 2601112034 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 16 | 2604449060 | 21.30 | 25.77 | |
| Depth-Gauge | ||||
| 21 | 2600460054 | 52.45 | 63.46 | |
| Gear Housing | ||||
| 22 | 16058065WK | 88.83 | 107.48 | |
| Protective Cover | ||||
| 23 | 2605510315 | 98.18 | 118.80 | |
| Protective Cover | ||||
| 25 | 2605510316 | 71.68 | 86.73 | |
| Handle | ||||
| 26 | 2605133033 | 23.90 | 28.92 | |
| Handle | ||||
| 27 | 2605133035 | 31.42 | 38.02 | |
| Switch Actuator | ||||
| 28 | 2605500210 | 12.82 | 15.51 | |
| Carrier | ||||
| 29 | 2601322048 | 14.94 | 18.08 | |
| Carrier | ||||
| 30 | 2601322049 | 14.94 | 18.08 | |
| Locking Lever | ||||
| 31 | 2602051003 | 13.13 | 15.89 | |
| Lock bolt | ||||
| 32 | 2603181011 | 13.13 | 15.89 | |
| Locking Slide | ||||
| 33 | 2601099269 | 13.13 | 15.89 | |
| Thumbwheel | ||||
| 34 | 2602026178 | 3.44 | 4.16 | |
| Catch Lever | ||||
| 35 | 2601330007 | 3.44 | 4.16 | |
| Suction Socket | ||||
| 36 | 2605730065 | 16.79 | 20.32 | |
| Housing Cover | ||||
| 38 | 2605105184 | 27.81 | 33.65 | |
| Air-Deflector Ring | ||||
| 39 | 2600290064 | 13.13 | 15.89 | |
| Spring Guide | ||||
| 40 | 2600406037 | 13.13 | 15.89 | |
| Pusher | ||||
| 41 | 2601099270 | 13.13 | 15.89 | |
| Brake Lever | ||||
| 47 | 2601990049 | 8.35 | 10.10 | |
| Catch Lever | ||||
| 48 | 2601098504 | 9.67 | 11.70 | |
| Clamping-Flange | ||||
| 49 | 2605700250 | 6.73 | 8.14 | |
| Clamping-Flange | ||||
| 50 | 2600114086 | 23.90 | 28.92 | |
| Bearing Pin | ||||
| 53 | 2603100075 | 9.67 | 11.70 | |
| Set screw | ||||
| 54 | 2603402009 | 5.81 | 7.03 | |
| Torx Oval-Head Screw | ||||
| 57 | 2603415212 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 58 | 2603415213 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 59 | 2603410064 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 60 | 2603415214 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 61 | 2603415215 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 62 | 2603415216 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 63 | 2603415217 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 64 | 2603415218 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 65 | 2603415219 | 1.49 | 1.80 | |
| Washer | ||||
| 67 | 2600100242 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 68 | 2600118022 | 1.49 | 1.80 | |
| Locking washer | ||||
| 69 | 2600100243 | 1.49 | 1.80 | |
| Locking washer | ||||
| 70 | 2600100244 | 1.49 | 1.80 | |
| Thrust Bearing Disc | ||||
| 71 | 2600101516 | 2.40 | 2.90 | |
| Washer | ||||
| 72 | 2600100245 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 73 | 2600905118 | 14.94 | 18.08 | |
| Ball Bearing | ||||
| 74 | 2600905119 | 16.79 | 20.32 | |
| O-Ring | ||||
| 75 | 2600210053 | 1.49 | 1.80 | |
| O-Ring | ||||
| 76 | 2600210054 | 1.49 | 1.80 | |
| O-Ring | ||||
| 77 | 2600210055 | 3.44 | 4.16 | |
| Disc Spring | ||||
| 79 | 2600200054 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 80 | 2604618005 | 3.44 | 4.16 | |
| Extension Spring | ||||
| 81 | 2604650006 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 82 | 2604618006 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 83 | 2604618007 | 5.81 | 7.03 | |
| Thrust Member | ||||
| 84 | 2600030026 | 3.44 | 4.16 | |
| Brake Lining | ||||
| 85 | 2600026007 | 12.82 | 15.51 | |
| Cable Clip | ||||
| 86 | 2601302018 | 1.49 | 1.80 | |
| Speed governor | ||||
| 87 | 2607230144 | 110.30 | 133.46 | |
| Offset Screwdriver | ||||
| 89 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 89 | 2610364015 | 3.44 | 4.16 | |
| Motor Housing | ||||
| 801 | 2605108922 | 71.68 | 86.73 | |
| Pole Shoe | ||||
| 802 | 2604220753 | 122.80 | 148.59 | |
| Armature | ||||
| 803 | 2604011937 | 219.55 | 265.66 | |
| Nameplate | ||||
| 808 | 1619PB1078 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321957 | 23.90 | 28.92 | |
| Base Plate | ||||
| 824 | 2601016907 | 173.95 | 210.48 | |
| Drive Shaft | ||||
| 851 | 2603124907 | 122.80 | 148.59 | |
| Set of screws | ||||
| 878 | 2603434004 | 10.90 | 13.19 | |
