Here you will find all available parts and drawings of the 'Bosch 3601FB4000 ( GKT18V-52GC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

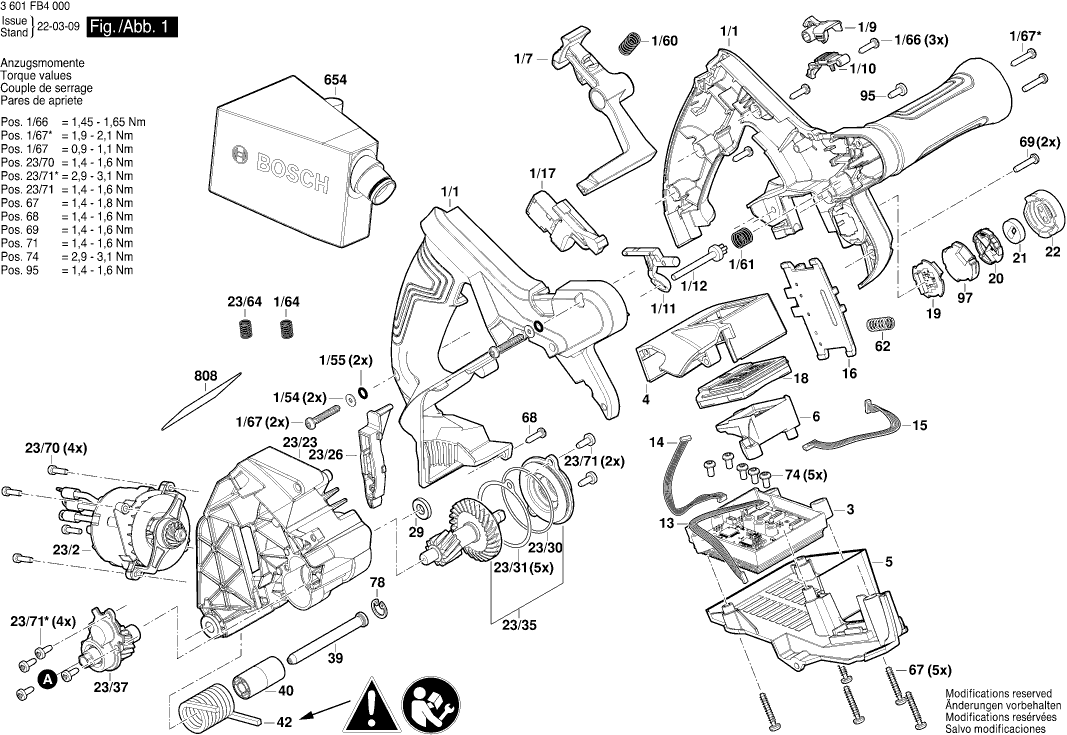

Technical drawing of model Bosch 3601FB4000 ( GKT18V-52GC )

Spare parts list of model Bosch 3601FB4000 ( GKT18V-52GC )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Handle
1/1 160580664R 23.75 28.74
Selector Switch
1/10 2602026201 1.70 2.06
Rocker
1/11 2602123010 1.18 1.43
Locking pin
1/12 2603101070 1.18 1.43
Flat Switch
1/17 2607202386 6.54 7.91
O-Ring
1/54 1600210094 0.83 1.00
Shim Plate
1/55 1600A01UT1 0.83 1.00
Compression Spring
1/60 1600A019DG 0.83 1.00
Compression Spring
1/61 2604618015 0.83 1.00
Compression Spring
1/64 2604618014 0.83 1.00
Screw 4x16
1/66 2603490022 0.83 1.00
Torx Oval-Head Screw 4x25
1/67 2603490024 1.18 1.43
Locking Slide
1/7 2602026200 1.70 2.06
Locking Lever
1/9 2602051004 1.70 2.06
Electronic Module
3 16072335F7 91.56 110.79
Housing Cover
4 1605132182 2.24 2.71
Housing Base
5 1605132181 4.10 4.96
Support
6 1600A015X0 1.94 2.35
Data cable
13 1600A015F8 2.71 3.28
Connecting Cable
14 1600A013D8 3.31 4.01
Connecting Cable
15 1600A013D5 2.71 3.28
Contact Plate
16 1600A0161F 8.45 10.22
Electronic Module
18 16072335GD 26.84 32.48
Electronics Module
19 1600A016CZ 7.58 9.17
Cover Panel
20 1600A016ML 0.83 1.00
Rubber Sponge
21 1600A00M52 0.83 1.00
Cover
22 1600A0135N 0.83 1.00
DC motor
23/2 160702266Y 113.29 137.08
Gear Housing
23/23 160580664W 40.61 49.14
Rejection Slide
23/26 1600A01305 9.53 11.53
O-Ring 42,0x1,0 MM
23/30 3600210136 0.83 1.00
Shim
23/31 1600A0131C 0.83 1.00
Shim
23/31 1600A019L6 0.83 1.00
Shim
23/31 1600A019L7 0.83 1.00
Shim
23/31 1600A019L8 0.83 1.00
Jack Shaft
23/35 1600A0213M 29.75 36.00
Output Shaft
23/37 1600A0213N 33.45 40.47
Screw
23/70 1619X05274 0.83 1.00
Torx Oval-Head Screw M4x12
23/71 2610386516 1.18 1.43
Clamping-Flange
23/91 2605719049 4.70 5.69
Clamping-Flange
23/92 2605719051 5.83 7.05
Socket head cap screw
23/94 1600A01H00 0.83 1.00
Shim
29 1600A015MM 0.83 1.00
Guard Plate
33 1600A01300 1.94 2.35
Protection cover
34 2605510323 23.75 28.74
Bearing bolt
39 1603123067 5.33 6.45
Bushing
40 160030011H 1.70 2.06
Suction Socket
41 2605730067 2.71 3.28
Coiled Spring
42 160465101C 5.33 6.45
Damper
43 2601010079 0.83 1.00
Depth gauge
44 2600460059 9.53 11.53
Base Plate
45 1600A012ZA 44.82 54.23
Cover
46 2601073020 1.70 2.06
Filling Piece
47 1600A018TN 1.18 1.43
Carrier
48 2605730068 3.31 4.01
Angle Lever
49 1600A019N6 5.33 6.45
Wing Nut M6
50 1603339005 2.24 2.71
Hex Nut
50 2610387875 1.94 2.35
Carrier
51 1600A012ZD 2.71 3.28
Setting Device
52 2601010082 7.58 9.17
Setting Device
53 1600A012ZH 7.58 9.17
Compression Spring
62 1609280477 1.18 1.43
Compression Spring
63 160461200R 0.83 1.00
Torsion Spring
65 1600A018U8 0.83 1.00
Screw 4x16
66 2603490022 0.83 1.00
Thread-forming tap. Screw M4x16
68 2914491410 0.83 1.00
Thread-forming tap. Screw
69 2603410051 0.83 1.00
Thread-forming tap. Screw M4x8
72 2603410048 1.18 1.43
Round-Head Bolt DIN 603-M6x40
73 2910281209 1.94 2.35
Screw
74 160343003T 0.83 1.00
Spring retaining ring
78 2916660033 0.83 1.00
Plain Washer DIN 9021-B 4,3-ST
79 2916011892 0.83 1.00
Washer
80 2918660002 0.83 1.00
Hexagon Socket Screw Key 5 MM
93 2610364015 2.71 3.28
Electronics Module
95 1600A013WF 29.75 36.00
Torx Oval-Head Screw
95 160343509S 0.83 1.00
Electronics Module
97 1600A013WF 29.75 36.00
Dust Bag
654 160541101V 13.93 16.86
Nameplate
808 160111A7ZZ 1.94 2.35
