Here you will find all available parts and drawings of the 'Bosch 3601E7A900 ( GKS85G )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

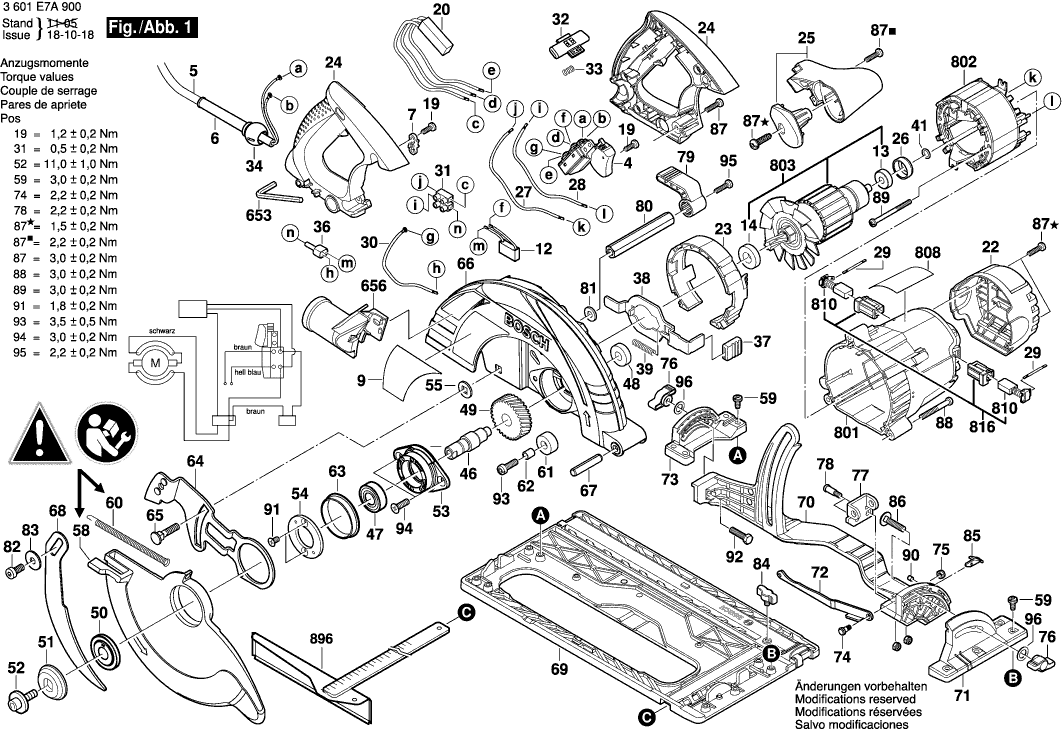

Technical drawing of model Bosch 3601E7A900 ( GKS85G )
Spare parts list of model Bosch 3601E7A900 ( GKS85G )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | 1619P01115 | 13.93 | 16.86 | |
| Power supply cord EU 4,15m 2x1,50 H07RN-F | ||||
| 5 | 1619P02320 | 18.19 | 22.01 | |
| Grommet Ø8,3-Ø9,4x95 MM | ||||
| 6 | 2600703011 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 1619P01104 | 0.83 | 1.00 | |
| Manufacturer's nameplate GKS 85G | ||||
| 9 | 1619P31109 | 1.94 | 2.35 | |
| Suppression Filter | ||||
| 12 | 1619P06099 | 4.70 | 5.69 | |
| groove ball bearing | ||||
| 13 | 2610017348 | 8.45 | 10.22 | |
| groove ball bearing | ||||
| 14 | 1619P06095 | 9.53 | 11.53 | |
| Torx Oval-Head Screw 4x12 | ||||
| 19 | 2603490021 | 0.83 | 1.00 | |
| Electronic Module | ||||
| 20 | 1619P06071 | 36.85 | 44.59 | |
| End cap | ||||
| 22 | 1619P01139 | 5.33 | 6.45 | |
| Baffle BLACK | ||||
| 23 | 1619P01140 | 3.31 | 4.01 | |
| Set Of Handles | ||||
| 24 | 1619P06098 | 10.73 | 12.98 | |
| Auxiliary Handle BLACK | ||||
| 25 | 1619P01142 | 6.54 | 7.91 | |
| Rubber Ring | ||||
| 26 | 1619P01127 | 0.83 | 1.00 | |
| Cable | ||||
| 27 | 1619P06100 | 1.18 | 1.43 | |
| Cable | ||||
| 28 | 1619P06101 | 1.18 | 1.43 | |
| Cable | ||||
| 29 | 2610918148 | 1.70 | 2.06 | |
| Cable | ||||
| 30 | 1619P06102 | 1.18 | 1.43 | |
| Terminal Block | ||||
| 31 | 1619P11754 | 1.70 | 2.06 | |
| Switch Button | ||||
| 32 | 1619P01156 | 1.70 | 2.06 | |
| Compression Spring | ||||
| 33 | 2610935251 | 1.18 | 1.43 | |
| Strain-Relief Clamp | ||||
| 34 | 1619P01637 | 0.83 | 1.00 | |
| connecting terminal | ||||
| 36 | 1619P06502 | 0.83 | 1.00 | |
| Cap BLACK | ||||
| 37 | 1619P01143 | 0.83 | 1.00 | |
| Guide Bracket | ||||
| 38 | 1619P01620 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 39 | 1619P01642 | 0.83 | 1.00 | |
| Shim washer | ||||
| 41 | 1619P07414 | 0.83 | 1.00 | |
| Shaft | ||||
| 46 | 1619P01623 | 10.73 | 12.98 | |
| groove ball bearing 15x35x11 | ||||
| 47 | 1900905279 | 8.45 | 10.22 | |
| groove ball bearing 6000-2RS DIN 625 | ||||
| 48 | 1900905173 | 4.10 | 4.96 | |
| Cylindrical Gear | ||||
| 49 | 1619P01624 | 11.88 | 14.37 | |
| Washer | ||||
| 50 | 1619P01625 | 3.31 | 4.01 | |
| Locking washer | ||||
| 51 | 1619P06089 | 2.71 | 3.28 | |
| Clamp Screw | ||||
| 52 | 1619P01634 | 1.18 | 1.43 | |
| Bearing Flange | ||||
| 53 | 1619P01628 | 6.54 | 7.91 | |
| Retaining Plate | ||||
| 54 | 1619P01629 | 2.24 | 2.71 | |
| Plain Washer | ||||
| 55 | 1619P02619 | 1.18 | 1.43 | |
| Pivoting Blade Guard | ||||
| 58 | 1600A00XZ3 | 15.71 | 19.01 | |
| Torx Oval-Head Screw M5x12-TORX,T25 SILVER | ||||
| 59 | 1613435015 | 1.94 | 2.35 | |
| Extension Spring | ||||
| 60 | 1619P01632 | 1.94 | 2.35 | |
| Bumper | ||||
| 61 | 1619P01633 | 1.18 | 1.43 | |
| Spacer Tube | ||||
| 62 | 1619P02580 | 0.83 | 1.00 | |
| Flange Bushing | ||||
| 63 | 1619P02410 | 0.83 | 1.00 | |
| Supporting Frame | ||||
| 64 | 1619P02409 | 6.54 | 7.91 | |
| Stud bolt | ||||
| 65 | 1619P02411 | 0.83 | 1.00 | |
| Protective Guard | ||||
| 66 | 1600A00XU4 | 26.84 | 32.48 | |
| Slotted Spring Pin DIN 7346-8x45 | ||||
| 67 | 2917780185 | 1.70 | 2.06 | |
| Riving Knife | ||||
| 68 | 1619P02408 | 5.33 | 6.45 | |
| Base Plate | ||||
| 69 | 1600A00XP9 | 40.61 | 49.14 | |
| Hinge Bracket | ||||
| 70 | 1600A00Y01 | 23.75 | 28.74 | |
| Hinge Bracket | ||||
| 71 | 1619P09215 | 5.33 | 6.45 | |
| Rocker | ||||
| 72 | 1619P02406 | 1.94 | 2.35 | |
| Hinge Bracket | ||||
| 73 | 1619P09216 | 4.70 | 5.69 | |
| Shoulder Screw | ||||
| 74 | 2610923224 | 1.18 | 1.43 | |
| Hex Nut DIN 985-M 5-8-A | ||||
| 75 | 2915061003 | 1.70 | 2.06 | |
| Wing Nut | ||||
| 76 | 1619P06244 | 1.18 | 1.43 | |
| Support bracket | ||||
| 77 | 1619P09214 | 1.18 | 1.43 | |
| Shoulder Screw | ||||
| 78 | 2610924635 | 1.18 | 1.43 | |
| Adjusting Lever | ||||
| 79 | 1619P01668 | 1.18 | 1.43 | |
| Rod | ||||
| 80 | 1600A00Z5N | 2.24 | 2.71 | |
| Plain Washer 8-ST | ||||
| 81 | 2916021013 | 1.18 | 1.43 | |
| Collar bolt | ||||
| 82 | 1619P02412 | 1.18 | 1.43 | |
| Plain Washer | ||||
| 83 | 1619P02413 | 0.83 | 1.00 | |
| Wing Screw BLACK | ||||
| 84 | 1619P01618 | 0.83 | 1.00 | |
| Indicator | ||||
| 85 | 1619P09217 | 1.70 | 2.06 | |
| Round-Head Bolt M6x30 | ||||
| 86 | 1619P09218 | 1.18 | 1.43 | |
| Screw | ||||
| 87 | 1619P01643 | 0.83 | 1.00 | |
| Screw | ||||
| 88 | 1619P01644 | 1.18 | 1.43 | |
| Screw | ||||
| 89 | 1619P01676 | 0.83 | 1.00 | |
| Adjusting Screw | ||||
| 90 | 2610924685 | 0.83 | 1.00 | |
| Screw M5x10-H | ||||
| 91 | 1619P01677 | 0.83 | 1.00 | |
| Stud bolt M6x25 MM | ||||
| 92 | F016L11371 | 1.94 | 2.35 | |
| Screw | ||||
| 93 | 1619P01679 | 0.83 | 1.00 | |
| Screw M6x20-H | ||||
| 94 | 1619P01680 | 0.83 | 1.00 | |
| Screw | ||||
| 95 | 1619P01673 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 96 | 2916011111 | 1.94 | 2.35 | |
| Offset Screwdriver | ||||
| 653 | 1907950006 | 3.12 | 3.78 | |
| Hexagon Socket Screw Key 5 MM | ||||
| 653 | 2610364015 | 2.71 | 3.28 | |
| Vacuum Adapter | ||||
| 656 | 1619P09425 | 1.94 | 2.35 | |
| Motor Housing | ||||
| 801 | 1619P04514 | 13.93 | 16.86 | |
| Field | ||||
| 802 | 1619P14887 | 29.75 | 36.00 | |
| Armature set 230V | ||||
| 803 | 1619P01696 | 55.25 | 66.85 | |
| Nameplate | ||||
| 808 | 1619P30425 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1619P01685 | 9.53 | 11.53 | |
| Brush Holder | ||||
| 816 | 1619P02799 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 896 | 2608190002 | |||
