Here you will find all available parts and drawings of the 'Bosch 0601652003 (GKS75S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

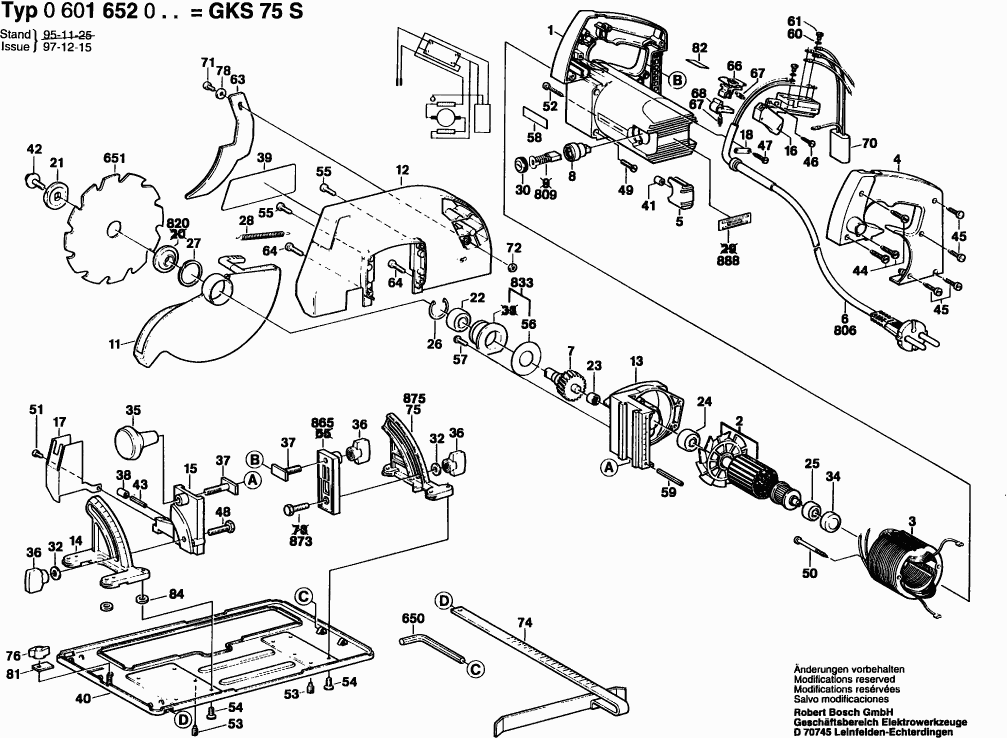

Technical drawing of model Bosch 0601652003 (GKS75S)
Spare parts list of model Bosch 0601652003 (GKS75S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108548 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 2 | 3604011520 | |||
| Field | ||||
| 3 | 3604220508 | 80.75 | 97.71 | |
| No longer available, no replacement | ||||
| 4 | 3605500572 | |||
| Housing Cover | ||||
| 5 | 3605500573 | 2.86 | 3.46 | |
| Spindle With Gear | ||||
| 7 | 3606328507 | 31.65 | 38.30 | |
| Brush Holder | ||||
| 8 | 3600492505 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 11 | 3605500541 | |||
| No longer available, no replacement | ||||
| 12 | 3605500537 | |||
| Gear Housing | ||||
| 13 | 3605806506 | 31.42 | 38.02 | |
| No longer available, no replacement | ||||
| 14 | 3605702529 | |||
| No longer available, no replacement | ||||
| 15 | 3605702558 | |||
| No longer available, no replacement | ||||
| 16 | 2610916046 | |||
| Protecting Cover | ||||
| 17 | 3605510528 | 21.30 | 25.77 | |
| Fastening Clamp | ||||
| 18 | 3601032500 | 7.46 | 9.03 | |
| No longer available, no replacement | ||||
| 21 | 3600144507 | |||
| groove ball bearing | ||||
| 22 | 3600900521 | 16.79 | 20.32 | |
| Needle-Roller Bearing | ||||
| 23 | 3600910502 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 24 | 3600900520 | |||
| No longer available, no replacement | ||||
| 25 | 2610904891 | |||
| Retaining snap ring | ||||
| 26 | 3600119505 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 27 | 3600119506 | 2.40 | 2.90 | |
| Extension Spring | ||||
| 28 | 2610909254 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 30 | 2610994437 | |||
| Grommet | ||||
| 31 | 3600707503 | 3.44 | 4.16 | |
| Plain Washer | ||||
| 32 | 3600100515 | 2.40 | 2.90 | |
| Bushing | ||||
| 34 | 3600206502 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 35 | 3603231516 | |||
| No longer available, no replacement | ||||
| 36 | 3603231524 | |||
| T-Slot Screw | ||||
| 37 | 3603440502 | 2.40 | 2.90 | |
| Rubber Buffer | ||||
| 38 | 3600707504 | 2.40 | 2.90 | |
| Reference Plate | ||||
| 39 | 3601119647 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 40 | 3601440510 | |||
| No longer available, no replacement | ||||
| 41 | 3600305500 | |||
| Hex Socket Head Cap Screw | ||||
| 42 | 3603450501 | 2.86 | 3.46 | |
| Torx Oval-Head Screw | ||||
| 44 | 2603490025 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 45 | 2910611029 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 46 | 2910611025 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2910611012 | 2.08 | 2.52 | |
| Hex Screw | ||||
| 48 | 2911061246 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914411064 | 2.00 | 2.42 | |
| Tapping Screw | ||||
| 50 | 1613412001 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 51 | 2603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 52 | 2910611483 | 2.00 | 2.42 | |
| Set screw | ||||
| 53 | 3603415566 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 54 | 3603415553 | 2.40 | 2.90 | |
| Thread-forming tap. Screw | ||||
| 55 | 2914411051 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 56 | 3601016507 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 57 | 3603430502 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 58 | 3601119666 | 3.44 | 4.16 | |
| Slotted Spring Pin | ||||
| 59 | 2917765240 | 2.40 | 2.90 | |
| Spring Washer | ||||
| 60 | 3600151506 | 0.83 | 1.00 | |
| Pan head screw | ||||
| 61 | 3603415549 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 63 | 3601098516 | |||
| Thread-forming tap. Screw | ||||
| 64 | 2914411049 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 66 | 3603231518 | |||
| No longer available, no replacement | ||||
| 67 | 3604648503 | |||
| No longer available, no replacement | ||||
| 68 | 3601960500 | |||
| No longer available, no replacement | ||||
| 70 | 3607328509 | |||
| Hex Socket Head Cap Screw | ||||
| 71 | 2910141193 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 72 | 2915011007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 74 | 2608190002 | |||
| No longer available, no replacement | ||||
| 75 | 3607000518 | |||
| Wing Screw | ||||
| 76 | 1603480018 | 2.08 | 2.52 | |
| Plain Washer | ||||
| 78 | 2916011014 | 1.00 | 1.21 | |
| Clamping Piece | ||||
| 81 | 3601030500 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 82 | 1601110265 | |||
| Reference Plate | ||||
| 83 | 1601110618 | 1.90 | 2.30 | |
| Plain Washer | ||||
| 84 | 2916011012 | 1.00 | 1.21 | |
| Offset Screwdriver | ||||
| 650 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 650 | 2610364015 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 651 | 3608640518 | |||
| Power supply cord | ||||
| 806 | 3604460516 | 22.88 | 27.68 | |
| No longer available, no replacement | ||||
| 809 | 3607014505 | |||
| No longer available, no replacement | ||||
| 820 | 3600101510 | |||
| No longer available, no replacement | ||||
| 833 | 3607000566 | |||
| Bracket Holder | ||||
| 865 | 3605702536 | 12.82 | 15.51 | |
| Hex Screw | ||||
| 873 | 2911051244 | 2.38 | 2.88 | |
| No longer available, no replacement | ||||
| 875 | 3605702535 | |||
| Nameplate | ||||
| 888 | 3601119590 | 4.18 | 5.06 | |
