Here you will find all available parts and drawings of the 'Bosch 3601F68701 (GKS65CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

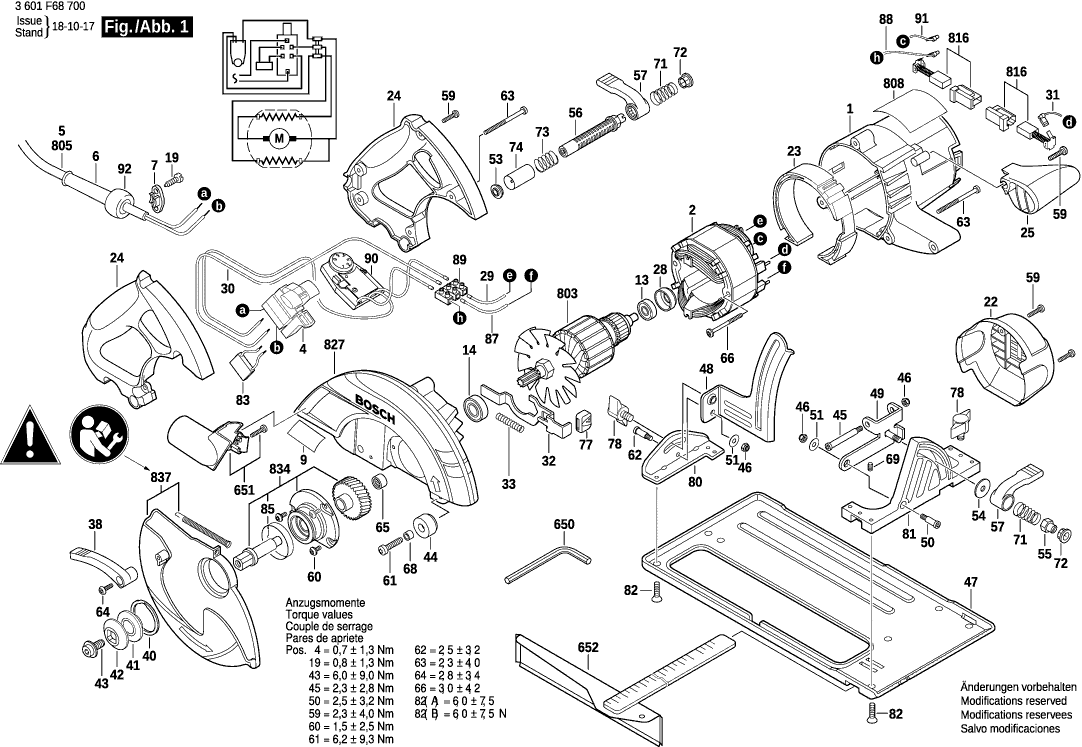

Technical drawing of model Bosch 3601F68701 (GKS65CE)
Spare parts list of model Bosch 3601F68701 (GKS65CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2610934305 | 16.79 | 20.32 | |
| Field | ||||
| 2 | 1619P14886 | 33.33 | 40.33 | |
| Switch | ||||
| 4 | 2610925421 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 7 | 2610993191 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2610925213 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 13 | 2610017348 | 10.90 | 13.19 | |
| groove ball bearing | ||||
| 14 | 2610350311 | 11.37 | 13.76 | |
| Screw | ||||
| 19 | 1619X00504 | 1.00 | 1.21 | |
| Sealing cap | ||||
| 22 | 2610917052 | 4.94 | 5.98 | |
| Baffle | ||||
| 23 | 2610924448 | 5.81 | 7.03 | |
| Handle | ||||
| 24 | 2610933955 | 13.13 | 15.89 | |
| Auxiliary Handle | ||||
| 25 | 2610924143 | 4.94 | 5.98 | |
| Rubber Ring | ||||
| 28 | 1619P01127 | 1.00 | 1.21 | |
| Cable | ||||
| 29 | 2610921019 | 1.00 | 1.21 | |
| Cable | ||||
| 30 | 2610921020 | 1.00 | 1.21 | |
| Cable | ||||
| 31 | 2610918148 | 2.08 | 2.52 | |
| Locking Bolt | ||||
| 32 | 2610937399 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 33 | 1619P01642 | 1.00 | 1.21 | |
| Lever | ||||
| 38 | 2610919868 | 2.08 | 2.52 | |
| Retaining snap ring | ||||
| 40 | 2610921144 | 1.00 | 1.21 | |
| Washer | ||||
| 41 | 1619P16660 | 4.18 | 5.06 | |
| Conical Spring Washer | ||||
| 42 | 1605703107 | 3.44 | 4.16 | |
| Flange Bolt | ||||
| 43 | 1619X01613 | 1.49 | 1.80 | |
| Bumper | ||||
| 44 | 2610918151 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 45 | 2610924636 | 2.40 | 2.90 | |
| Hex Nut | ||||
| 46 | 2915061003 | 2.08 | 2.52 | |
| Base Plate | ||||
| 47 | 2610922569 | 43.12 | 52.18 | |
| Support bracket | ||||
| 48 | 2610922572 | 8.35 | 10.10 | |
| Hinge | ||||
| 49 | 2610934311 | 5.81 | 7.03 | |
| Shoulder Screw | ||||
| 50 | 2610924635 | 1.49 | 1.80 | |
| Washer | ||||
| 51 | 2610917048 | 2.08 | 2.52 | |
| Washer | ||||
| 53 | 1619P01535 | 1.00 | 1.21 | |
| Washer | ||||
| 54 | 1619X00942 | 1.00 | 1.21 | |
| Nut | ||||
| 55 | 1619X01791 | 1.49 | 1.80 | |
| Rod | ||||
| 56 | 2610917191 | 2.40 | 2.90 | |
| Lever | ||||
| 57 | 2610924368 | 2.40 | 2.90 | |
| Screw | ||||
| 59 | 1619P01505 | 1.00 | 1.21 | |
| Contact Screw | ||||
| 60 | 1619X07057 | 1.00 | 1.21 | |
| Screw | ||||
| 61 | 2610920385 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 62 | 2610923224 | 1.49 | 1.80 | |
| Screw | ||||
| 63 | 2610925864 | 1.00 | 1.21 | |
| Screw | ||||
| 64 | 1619X06749 | 1.00 | 1.21 | |
| Needle-Roller Bearing | ||||
| 65 | 2610020639 | 3.44 | 4.16 | |
| Screw | ||||
| 66 | 2610931997 | 2.40 | 2.90 | |
| Spacer Tube | ||||
| 68 | 2610918985 | 1.00 | 1.21 | |
| Adjusting Screw | ||||
| 69 | 2610924685 | 1.00 | 1.21 | |
| Spring | ||||
| 71 | 1619X01792 | 1.00 | 1.21 | |
| Cover | ||||
| 72 | 1619P17212 | 2.40 | 2.90 | |
| Spring | ||||
| 73 | 2610919467 | 1.00 | 1.21 | |
| Cover Sleeve | ||||
| 74 | 2610919327 | 1.00 | 1.21 | |
| Cover | ||||
| 77 | 2610921530 | 1.00 | 1.21 | |
| Adjustment Knob | ||||
| 78 | 2610990806 | 2.08 | 2.52 | |
| Hinge Bracket | ||||
| 80 | 2610922570 | 8.35 | 10.10 | |
| Hinge Bracket | ||||
| 81 | 2610922568 | 14.94 | 18.08 | |
| Countersunk-Head Screw | ||||
| 82 | 2610924687 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 83 | 2610916645 | 3.44 | 4.16 | |
| Cover Sleeve | ||||
| 85 | 2610920799 | 1.00 | 1.21 | |
| Cable | ||||
| 87 | 2610921021 | 1.00 | 1.21 | |
| Cable | ||||
| 88 | 2610921023 | 1.00 | 1.21 | |
| Terminal Block | ||||
| 89 | 2610925211 | 2.40 | 2.90 | |
| Speed governor | ||||
| 90 | 2610921905 | 47.53 | 57.51 | |
| Cable | ||||
| 91 | 2610921017 | 2.08 | 2.52 | |
| Locking element | ||||
| 92 | 1603231014 | 2.08 | 2.52 | |
| Offset Screwdriver | ||||
| 650 | 1619P14506 | 1.49 | 1.80 | |
| Vacuum Adapter | ||||
| 651 | 2610925244 | 2.40 | 2.90 | |
| Mitre Fence | ||||
| 652 | 1619X01612 | 10.90 | 13.19 | |
| Armature | ||||
| 803 | 1619X01696 | 61.93 | 74.94 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 1619X02054 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 816 | 2610925372 | 17.60 | 21.30 | |
| Upper guard | ||||
| 827 | 2610925374 | 58.03 | 70.22 | |
| Gear Shaft | ||||
| 834 | 2610925373 | 31.42 | 38.02 | |
| Lower guard | ||||
| 837 | 1619P14440 | 21.30 | 25.77 | |
