Here you will find all available parts and drawings of the 'Bosch 3601F64800 ( GKS55CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

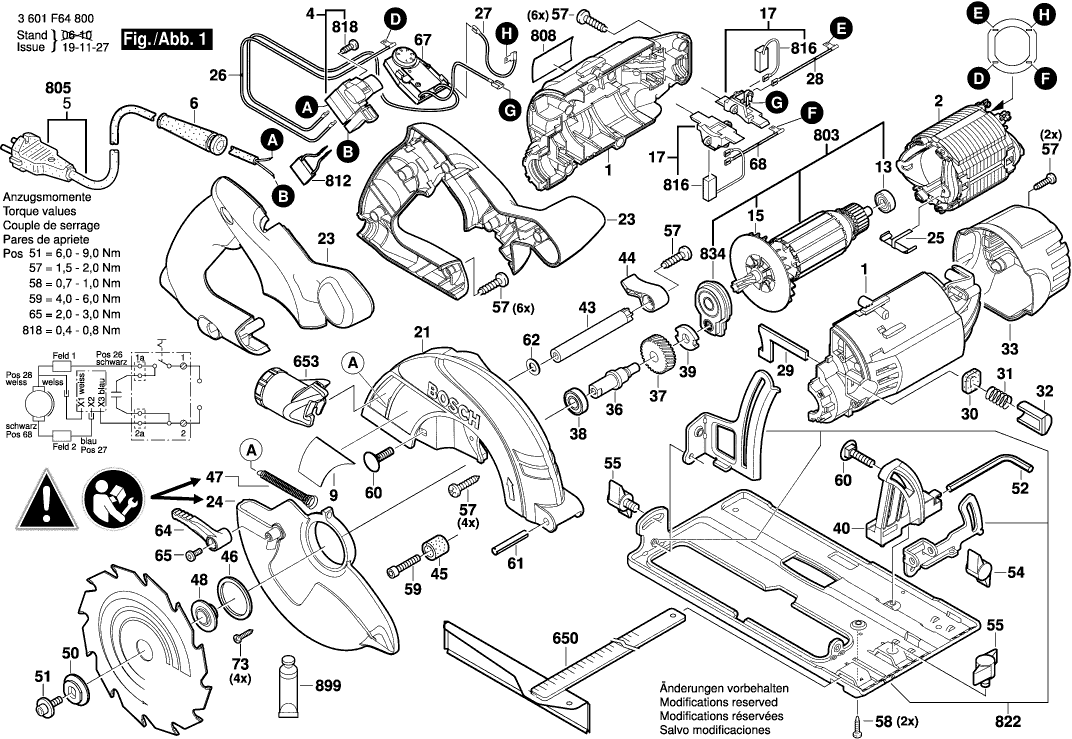

Technical drawing of model Bosch 3601F64800 ( GKS55CE )

Spare parts list of model Bosch 3601F64800 ( GKS55CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 1605108244 20.42 24.71
Field 230V
2 1604220346 29.75 36.00
Switch
4 1607200198 12.41 15.02
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
5 1607000386 15.71 19.01
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Manufacturer's nameplate
9 1601118A98 1.70 2.06
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
Fan
15 1606610145 2.24 2.71
Brush Plate
17 1604336050 18.19 22.01
Protective Cover
21 1605510335 29.75 36.00
Handle BLUE
23 1605500248 10.73 12.98
Pivoting Blade Guard
24 1605510337 29.75 36.00
Contact Spring
25 1601290010 1.18 1.43
connecting piping
26 1604449024 1.70 2.06
connecting piping
27 1604449017 1.70 2.06
connecting piping
28 1604449025 1.70 2.06
Safety Catch
29 1601900005 1.70 2.06
Felt Seal
30 1601015033 1.18 1.43
Compression Spring
31 1604610018 1.18 1.43
No longer available, no replacement
32 1603231019
Housing Cover BLACK
33 1605500242 7.58 9.17
Drive Shaft
36 1603124140 7.58 9.17
Cylindrical Gear
37 1606320601 10.73 12.98
groove ball bearing 12x28x8
38 1600905031 5.33 6.45
Screen Disc
39 1600190044 1.18 1.43
Miter Square
40 1608190027 3.31 4.01
Spacer Tube
43 1600360004 1.94 2.35
Tensioning Lever
44 1602002006 1.18 1.43
Rubber Buffer
45 1600305002 1.18 1.43
Clamp ring
46 1600102024 1.70 2.06
Extension Spring
47 1604650018 1.94 2.35
Clamping-Flange
48 1605703133 4.70 5.69
Conical Spring Washer
50 1605703108 2.24 2.71
Hex Socket Head Cap Screw M6x14 MM
51 1603414007 1.18 1.43
Offset Screwdriver
52 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
52 2610364015 2.71 3.28
Wing Nut M6
54 1603339005 2.24 2.71
Wing Screw M6
55 1603480017 2.24 2.71
Screw 4x16
57 2603490022 0.83 1.00
Lens Head Screw 3x10 ST
58 1613435034 0.83 1.00
Thread-forming tap. Screw M6x25 MM
59 1603414010 1.18 1.43
Round-Head Bolt DIN 603-M6x20
60 2910281201 0.83 1.00
Slotted Spring Pin 6x36 DIN 7346
61 2917780157 0.83 1.00
Plain Washer
62 2916011894 0.83 1.00
Lever
64 1602002011 1.70 2.06
Torx Oval-Head Screw M4x12
65 2610386516 1.18 1.43
Thread-forming tap. Screw
65 2914491409 0.83 1.00
Speed governor
67 1607233210 49.56 59.97
Connecting Cable
68 1604449013 1.18 1.43
Torx Oval-Head Screw 3x10 ST
73 1613435033 0.83 1.00
No longer available, no replacement
650 2608190002
Adapter
653 1608005008 2.24 2.71
Armature 230V
803 1607000A57 91.56 110.79
Nameplate
808 160111A3H3 1.94 2.35
No longer available, no replacement
812 1607328028
Carbon Brush
816 1607014161 10.73 12.98
Socket head cap screw M3x6,5-4.8
818 2603410001 1.18 1.43
Base Plate
822 1607000741 40.61 49.14
Bearing Bracket
834 1607000A53 12.41 15.02
Grease Tube 225 ML
899 1605430003 29.75 36.00
