Here you will find all available parts and drawings of the 'Bosch 3601F82000 (GKS55+G)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

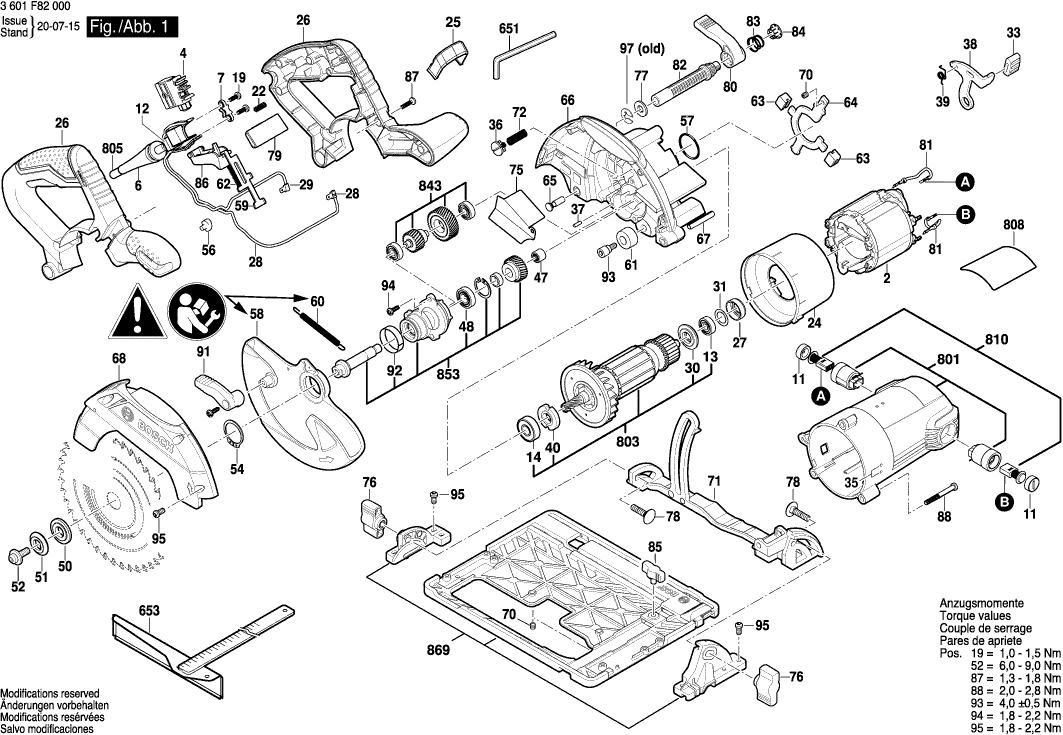

Technical drawing of model Bosch 3601F82000 (GKS55+G)
Spare parts list of model Bosch 3601F82000 (GKS55+G)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 1619P08314 | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 1619P10149 | 3.44 | 4.16 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1619P06313 | 1.00 | 1.21 | |
| Insulating Cap | ||||
| 11 | 1619P06286 | 2.08 | 2.52 | |
| Suppression Filter | ||||
| 12 | 2610917620 | 3.44 | 4.16 | |
| Ball Bearing | ||||
| 13 | 1619P00456 | 2.86 | 3.46 | |
| Ball Bearing | ||||
| 14 | 1619P10481 | 3.44 | 4.16 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 22 | 2610935251 | 1.49 | 1.80 | |
| Baffle | ||||
| 24 | 1619P09797 | 2.86 | 3.46 | |
| Cap | ||||
| 25 | 1619P10794 | 1.49 | 1.80 | |
| Set Of Handles | ||||
| 26 | 1619P10803 | 16.79 | 20.32 | |
| Rubber Ring | ||||
| 27 | 1619P06227 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 28 | 1619P10806 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 29 | 1619P10807 | 2.08 | 2.52 | |
| Sealing disk | ||||
| 30 | 1619P04476 | 1.00 | 1.21 | |
| Shim plate | ||||
| 31 | 1619P10795 | 1.00 | 1.21 | |
| Cap | ||||
| 33 | 1619P06225 | 1.00 | 1.21 | |
| Ball | ||||
| 35 | 1619P00291 | 64.67 | 78.25 | |
| Cap | ||||
| 36 | 1619P10145 | 1.49 | 1.80 | |
| Bearing bolt | ||||
| 37 | 2603201020 | 1.00 | 1.21 | |
| Guide Bracket | ||||
| 38 | 1619P10138 | 2.40 | 2.90 | |
| Contact strap | ||||
| 39 | 1619P10139 | 1.49 | 1.80 | |
| Lock Nut | ||||
| 40 | 1619P06319 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 47 | 1619P06310 | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 48 | 1619P10132 | 3.44 | 4.16 | |
| Washer | ||||
| 50 | 1619P10784 | 4.94 | 5.98 | |
| Locking washer | ||||
| 51 | 1619P10785 | 2.40 | 2.90 | |
| Clamp Screw | ||||
| 52 | 1619P10786 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 54 | 2916650014 | 1.49 | 1.80 | |
| Rod | ||||
| 56 | 1619P10141 | 4.18 | 5.06 | |
| O-Ring | ||||
| 57 | F000640007 | 1.00 | 1.21 | |
| Safety Guard | ||||
| 58 | 1619P10134 | 16.79 | 20.32 | |
| Connection Lever | ||||
| 59 | 1619P10142 | 1.49 | 1.80 | |
| Extension Spring | ||||
| 60 | 1619P10136 | 2.08 | 2.52 | |
| Bumper | ||||
| 61 | 1619P06236 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 62 | 1604611031 | 2.52 | 3.05 | |
| Rubber Pad | ||||
| 63 | 1619P10140 | 2.40 | 2.90 | |
| Support bracket | ||||
| 64 | 1619P10144 | 2.86 | 3.46 | |
| Knurled Bolt | ||||
| 65 | 1619P06325 | 2.08 | 2.52 | |
| Protective Guard | ||||
| 66 | 1619P10791 | 31.42 | 38.02 | |
| Slotted Spring Pin | ||||
| 67 | 1619P10608 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 68 | 1619P10148 | 14.94 | 18.08 | |
| Adjusting Screw | ||||
| 70 | 2610924685 | 1.00 | 1.21 | |
| Bridge | ||||
| 71 | 1600A00XX2 | 31.42 | 38.02 | |
| Compression Spring | ||||
| 72 | 2604610028 | 1.49 | 1.80 | |
| Guide Cover | ||||
| 75 | 1619P10801 | 2.40 | 2.90 | |
| Wing Nut | ||||
| 76 | 1619P01636 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 77 | 2916021013 | 1.49 | 1.80 | |
| Round-Head Bolt | ||||
| 78 | 1619P09218 | 1.49 | 1.80 | |
| Switch Button | ||||
| 79 | 1619P10788 | 2.08 | 2.52 | |
| Lever | ||||
| 80 | 2610924368 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 81 | 1619P07060 | 1.49 | 1.80 | |
| Adjustment rod | ||||
| 82 | 1619P07620 | 2.08 | 2.52 | |
| Spring | ||||
| 83 | 1619X01792 | 1.00 | 1.21 | |
| Cover | ||||
| 84 | 1619P17212 | 2.40 | 2.90 | |
| Wing Screw | ||||
| 85 | 1619P01618 | 1.00 | 1.21 | |
| Trigger | ||||
| 86 | 1619P10787 | 2.40 | 2.90 | |
| Screw | ||||
| 87 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 88 | 2610925864 | 1.00 | 1.21 | |
| Lever | ||||
| 91 | 1619P10150 | 1.49 | 1.80 | |
| Flange Bushing | ||||
| 92 | 1619P10802 | 2.08 | 2.52 | |
| Screw | ||||
| 93 | 1619P06246 | 2.08 | 2.52 | |
| Screw | ||||
| 94 | 1619P01678 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 95 | 1603435068 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 97 | 1619P12409 | |||
| Offset Screwdriver | ||||
| 651 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 651 | 2610364015 | 3.44 | 4.16 | |
| Mitre Fence | ||||
| 653 | 1619X01612 | 10.90 | 13.19 | |
| Adapter | ||||
| 654 | 1619P11691 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 801 | 1619P10061 | 18.94 | 22.92 | |
| Armature set | ||||
| 803 | 1619P11497 | 52.45 | 63.46 | |
| Power supply cord | ||||
| 805 | 1619P11860 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 1619P31498 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1619P10063 | 6.73 | 8.14 | |
| Gear Shaft | ||||
| 843 | 1619P11494 | 27.81 | 33.65 | |
| Bearing Flange | ||||
| 853 | 1619P11495 | 31.42 | 38.02 | |
| Base Plate | ||||
| 869 | 1619P14109 | 47.53 | 57.51 | |
