Here you will find all available parts and drawings of the 'Bosch 0601569008 (GKS54)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

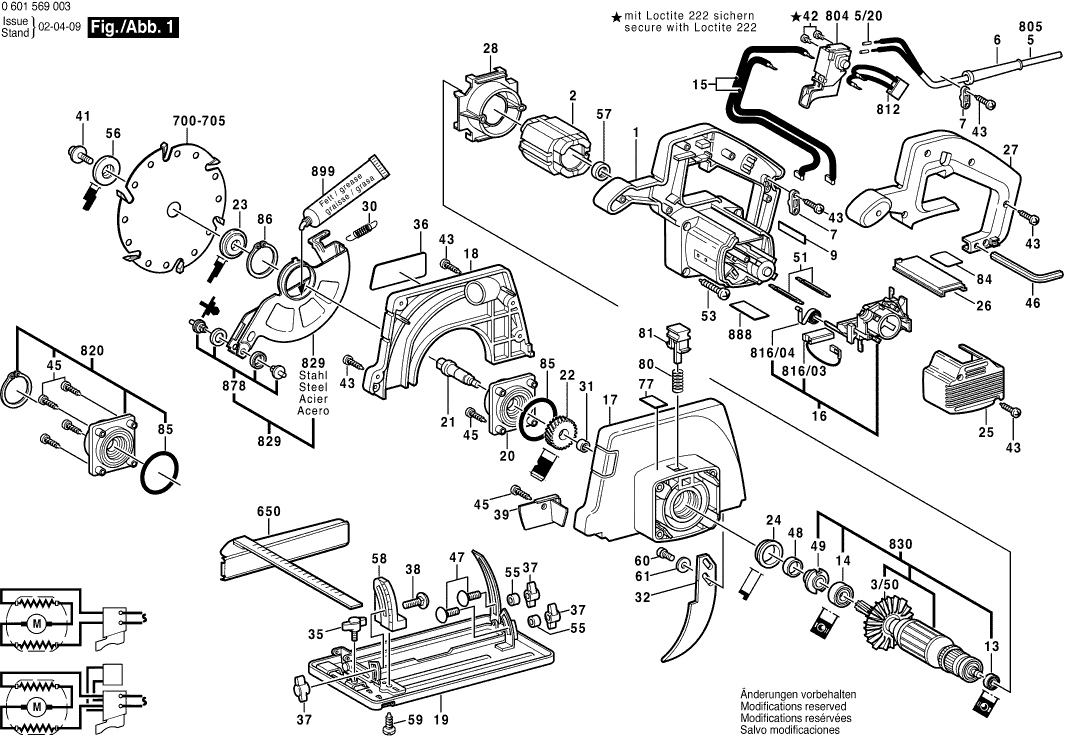

Technical drawing of model Bosch 0601569008 (GKS54)
Spare parts list of model Bosch 0601569008 (GKS54)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108155 | 28.56 | 34.56 | |
| Field | ||||
| 2 | 1604220343 | 34.82 | 42.13 | |
| No longer available, no replacement | ||||
| 3/50 | 3606610002 | |||
| No longer available, no replacement | ||||
| 6 | 1600703024 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601110601 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 14 | 1610905009 | |||
| Suppressor Box | ||||
| 15 | 1604503014 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 16 | 1604336042 | |||
| Gear Housing | ||||
| 17 | 1605806444 | 65.16 | 78.84 | |
| Covering hood | ||||
| 18 | 1605510211 | 13.90 | 16.82 | |
| No longer available, no replacement | ||||
| 19 | 1608000106 | |||
| Parts Set | ||||
| 20 | 1607000243 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 21 | 1603124114 | |||
| No longer available, no replacement | ||||
| 22 | 1606320079 | |||
| No longer available, no replacement | ||||
| 23 | 1605703097 | |||
| Intermediate Ring | ||||
| 24 | 1600221003 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 25 | 1605500158 | |||
| Cover Strip | ||||
| 26 | 1601099022 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 27 | 1605500163 | |||
| Air-Deflector Ring | ||||
| 28 | 3600591002 | 4.94 | 5.98 | |
| Extension Spring | ||||
| 30 | 1604650010 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 31 | 1600910020 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 32 | 1600025017 | |||
| Wing Screw | ||||
| 35 | 1603480018 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 36 | 1601110827 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 37 | 2610387875 | 2.40 | 2.90 | |
| Round-Head Bolt | ||||
| 38 | 2910281201 | 1.00 | 1.21 | |
| Cover Plate | ||||
| 39 | 1605510210 | 1.73 | 2.09 | |
| Hex Socket Head Cap Screw | ||||
| 41 | 1603414007 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 42 | 2603410001 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 43 | 2610386516 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 43 | 2912401019 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 45 | 1603435032 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 46 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 46 | 2610364015 | 3.44 | 4.16 | |
| Round-Head Bolt | ||||
| 47 | 2910281203 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 48 | 1600290016 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 49 | 1600390013 | |||
| Blade terminal | ||||
| 51 | 1604477005 | 2.18 | 2.64 | |
| Thread-forming tap. Screw | ||||
| 53 | 1603435022 | 1.00 | 1.21 | |
| Spacer Bushing | ||||
| 55 | 1600309010 | 2.40 | 2.90 | |
| Conical Spring Washer | ||||
| 56 | 1605703108 | 2.86 | 3.46 | |
| Intermediate Ring | ||||
| 57 | 1600502011 | 2.40 | 2.90 | |
| Miter Square | ||||
| 58 | 1608190010 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 59 | 2910211017 | |||
| Hex Socket Head Cap Screw | ||||
| 60 | 1603414007 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 61 | 2916011013 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 77 | 1601110470 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 80 | 1604611029 | 1.49 | 1.80 | |
| Stopping Device | ||||
| 81 | 1603231011 | 4.18 | 5.06 | |
| O-Ring | ||||
| 85 | 1600210038 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 86 | 2916650020 | |||
| No longer available, no replacement | ||||
| 650 | 2608190002 | |||
| On-Off Switch | ||||
| 804 | 1607000231 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 805 | 1607000228 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 812 | 1607328028 | |||
| No longer available, no replacement | ||||
| 816/03 | 1607014129 | |||
| No longer available, no replacement | ||||
| 816/04 | 2604652008 | |||
| Parts Set | ||||
| 820 | 1607000243 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 829 | 1605510170 | |||
| Armature | ||||
| 830 | 1604010451 | 179.65 | 217.38 | |
| No longer available, no replacement | ||||
| 878 | 1607000205 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
| Grease Tube | ||||
| 899 | 1605430003 | 34.82 | 42.13 | |
