Here you will find all available parts and drawings of the 'Bosch 0601569703 ( GKS54CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

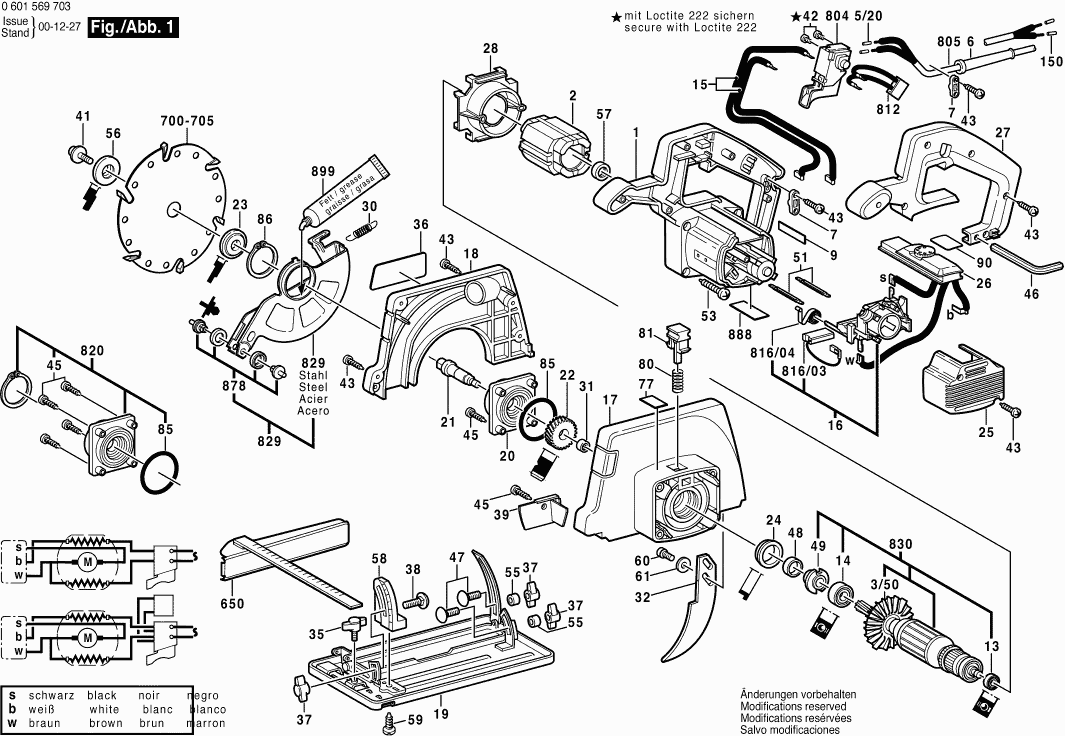

Technical drawing of model Bosch 0601569703 ( GKS54CE )

Spare parts list of model Bosch 0601569703 ( GKS54CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 1605108155 26.84 32.48
Field 220-240V
2 1604220353 33.45 40.47
No longer available, no replacement
3/50 3606610002
End Splice
5/20 3604477009 1.18 1.43
No longer available, no replacement
6 1600703024
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 2601110601 1.18 1.43
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
No longer available, no replacement
14 1610905009
No longer available, no replacement
15 1604449012
No longer available, no replacement
16 1604336024
Gear Housing
17 1605806444 60.65 73.39
Covering hood
18 1605510211 12.41 15.02
No longer available, no replacement
19 1608000106
Parts Set
20 1607000243 10.73 12.98
No longer available, no replacement
21 1603124114
No longer available, no replacement
22 1606320079
No longer available, no replacement
23 1605703097
Intermediate Ring
24 1600221003 1.18 1.43
No longer available, no replacement
25 1605500156
Speed governor 230-240V
26 1607233034 44.82 54.23
No longer available, no replacement
27 1605500163
Air-Deflector Ring
28 3600591002 4.10 4.96
Extension Spring
30 1604650010 0.83 1.00
Needle bearing
31 1600910020 4.10 4.96
No longer available, no replacement
32 1600025017
Wing Screw M6
35 1603480018 1.70 2.06
Manufacturer's nameplate
36 1601110828 0.83 1.00
Hex Nut
37 2610387875 1.94 2.35
Round-Head Bolt DIN 603-M6x20
38 2910281201 0.83 1.00
Cover Plate
39 1605510210 1.70 2.06
Hex Socket Head Cap Screw M6x14 MM
41 1603414007 1.18 1.43
Socket head cap screw M3x6,5-4.8
42 2603410001 1.18 1.43
Tapping Screw DIN7981-ST3,9x16-C-Z
43 2912401019 0.83 1.00
Thread-forming tap. Screw
45 1603435032 1.18 1.43
Offset Screwdriver
46 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
46 2610364015 2.71 3.28
Round-Head Bolt DIN 603-M6x25
47 2910281203 1.94 2.35
Rotary shaft lip seal
48 1600290016 1.94 2.35
No longer available, no replacement
49 1600390013
Blade terminal
51 1604477005 1.94 2.35
Thread-forming tap. Screw TT M5x30 MM
53 1603435022 0.83 1.00
Spacer Bushing
55 1600309010 1.94 2.35
Conical Spring Washer
56 1605703108 2.24 2.71
Intermediate Ring
57 1600502011 1.94 2.35
Miter Square
58 1608190010 0.83 1.00
No longer available, no replacement
59 2910211017
Hex Socket Head Cap Screw M6x14 MM
60 1603414007 1.18 1.43
Plain Washer DIN 433-6,4-ST 50
61 2916011013 0.83 1.00
Reference Plate
77 1601110470 0.83 1.00
Compression Spring
80 1604611029 1.18 1.43
Stopping Device
81 1603231011 3.31 4.01
O-Ring 38,0x1,5 MM
85 1600210038 1.94 2.35
No longer available, no replacement
86 2916650020
Reference Plate
90 1601110656 1.94 2.35
No longer available, no replacement
650 2608190002
On-Off Switch
804 1607000231 13.93 16.86
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
805 1607000228 20.42 24.71
No longer available, no replacement
812 1607328028
No longer available, no replacement
816/03 1607014133
Spiral Spring
816/04 2604652008 1.18 1.43
Parts Set
820 1607000243 10.73 12.98
No longer available, no replacement
829 1605510170
Armature 220-240V
830 1604010449 148.65 179.87
No longer available, no replacement
878 1607000205
Nameplate
888 160111A3H3 1.94 2.35
Grease Tube 225 ML
899 1605430003 29.75 36.00
