Here you will find all available parts and drawings of the 'Bosch 3601F73R00 (GKS36V-LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

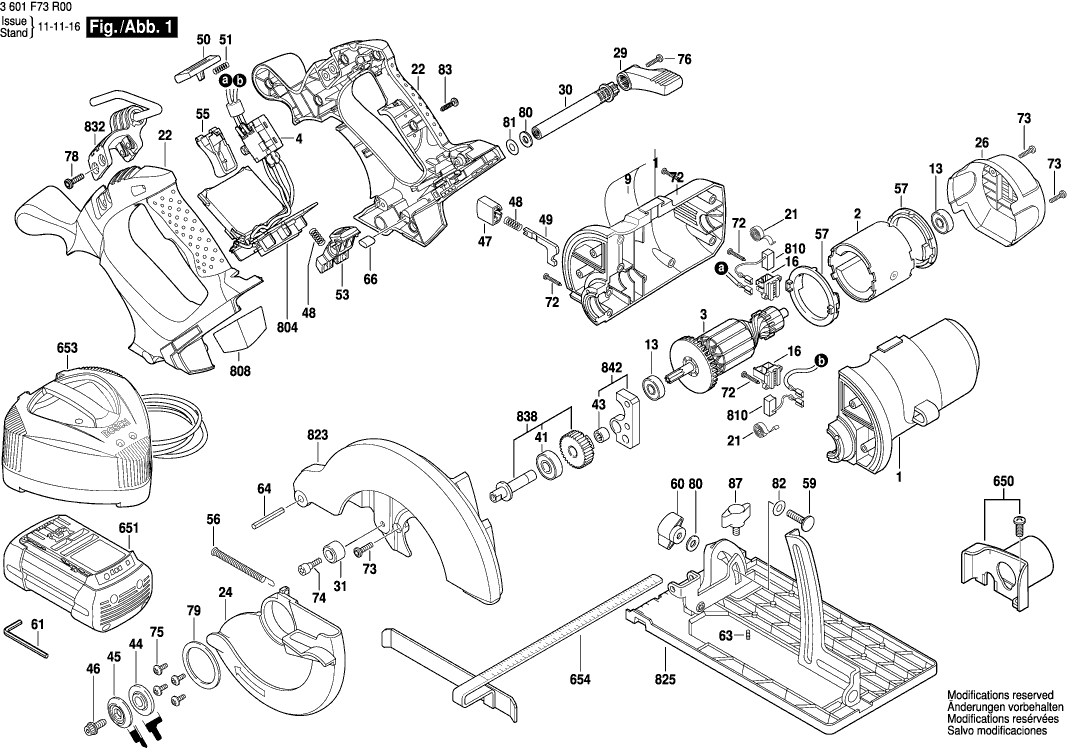

Technical drawing of model Bosch 3601F73R00 (GKS36V-LI)
Spare parts list of model Bosch 3601F73R00 (GKS36V-LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2610930648 | 23.90 | 28.92 | |
| Pole housing | ||||
| 2 | 2610942109 | 21.30 | 25.77 | |
| Armature | ||||
| 3 | 2610943270 | 82.63 | 99.98 | |
| Electronics Module | ||||
| 4 | 1607233258 | 166.62 | 201.61 | |
| Manufacturer's nameplate GKS 36 V-LI | ||||
| 9 | 2610946104 | 1.32 | 1.60 | |
| Ball Bearing | ||||
| 13 | 2610351861 | 10.90 | 13.19 | |
| Brush Holder | ||||
| 16 | 2610934990 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 21 | 1619P14306 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 22 | 2610942926 | |||
| Lower guard | ||||
| 24 | 2610930652 | 21.30 | 25.77 | |
| End cap BLACK | ||||
| 26 | 2610930667 | 2.52 | 3.05 | |
| Adjusting Lever | ||||
| 29 | 2610943266 | 1.90 | 2.30 | |
| Adjustment rod | ||||
| 30 | 2610942927 | 2.71 | 3.28 | |
| End stop | ||||
| 31 | 1619P01532 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 41 | 1900905173 | 4.94 | 5.98 | |
| Needle bearing | ||||
| 43 | 1600910018 | 4.94 | 5.98 | |
| Guide Bushing | ||||
| 44 | 1619P11416 | 8.35 | 10.10 | |
| Special Washer | ||||
| 45 | 2610959533 | 6.73 | 8.14 | |
| Flange Bolt | ||||
| 46 | 2610935247 | 1.49 | 1.80 | |
| Push-Button | ||||
| 47 | 2610935245 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 48 | 2610936576 | 1.00 | 1.21 | |
| Locking Pin | ||||
| 49 | 2610935246 | 2.86 | 3.46 | |
| Switch Button | ||||
| 50 | 2610942928 | 1.32 | 1.60 | |
| Compression Spring | ||||
| 51 | 2610935251 | 1.49 | 1.80 | |
| Push-Button | ||||
| 53 | 2610942929 | 2.18 | 2.64 | |
| Trigger | ||||
| 55 | 2610942930 | 2.08 | 2.52 | |
| Extension Spring | ||||
| 56 | 2610947075 | 2.40 | 2.90 | |
| Locating Ring | ||||
| 57 | 2610942931 | 2.08 | 2.52 | |
| Round-Head Bolt | ||||
| 59 | 2910281203 | 2.40 | 2.90 | |
| Knob | ||||
| 60 | 2610936575 | 1.49 | 1.80 | |
| Hexagon Socket Wrench | ||||
| 61 | 2610937464 | 1.49 | 1.80 | |
| Adjusting Screw | ||||
| 63 | 2610001398 | 1.00 | 1.21 | |
| Slotted Spring Pin ISO 8752-6x36-A-ST | ||||
| 64 | 2917761253 | 1.00 | 1.21 | |
| Set ring | ||||
| 66 | 2610937452 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 72 | 2603490018 | 1.00 | 1.21 | |
| Screw | ||||
| 73 | 2603490022 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 74 | 2610937508 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 75 | 2914201503 | 2.08 | 2.52 | |
| Hex Socket Head Cap Screw | ||||
| 76 | 2610937450 | 1.90 | 2.30 | |
| Raised ctsk Tapping Screw | ||||
| 78 | 2610937451 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 79 | 2610386556 | |||
| Plain Washer | ||||
| 80 | 2916011111 | 2.40 | 2.90 | |
| Shim ring | ||||
| 81 | 2916190012 | 1.00 | 1.21 | |
| Washer | ||||
| 82 | 2610945804 | 1.00 | 1.21 | |
| Screw | ||||
| 83 | 2610315386 | 1.49 | 1.80 | |
| Adjustment Knob | ||||
| 87 | 2610990806 | 2.08 | 2.52 | |
| Dust Extraction | ||||
| 650 | 1619P12492 | 4.10 | 4.96 | |
| Battery Pack 36V, 2,0Ah, LI | ||||
| 651 | 2607336003 | 342.01 | 413.83 | |
| Battery Pack 36V 2,0 Ah Li | ||||
| 651 | 2607336913 | 187.62 | 227.02 | |
| Charger EU GAL 3680 CV 230/14,4-36V | ||||
| 653 | 2607226457 | 173.95 | 210.48 | |
| Charger GB GAL 3680 CV 230/14,4-26V | ||||
| 653 | 2607226459 | 126.98 | 153.65 | |
| Fast Charger AUS AL 36V-20 | ||||
| 653 | 2607226277 | 55.25 | 66.85 | |
| Edge Guide | ||||
| 654 | 2610955166 | 6.73 | 8.14 | |
| Contact retainer | ||||
| 804 | 1609280425 | 13.90 | 16.82 | |
| Nameplate | ||||
| 808 | 2610946106 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2610945334 | 8.48 | 10.26 | |
| Protective Cover | ||||
| 823 | 2610941037 | 30.08 | 36.40 | |
| Base Plate | ||||
| 825 | 2610948882 | 55.56 | 67.23 | |
| Hook Mounting | ||||
| 832 | 2610945305 | 13.90 | 16.82 | |
| Spindle Assembly | ||||
| 838 | 2610000765 | 23.90 | 28.92 | |
| Pivot Plate | ||||
| 842 | 2610997509 | 10.90 | 13.19 | |
