Here you will find all available parts and drawings of the 'Bosch 3601F23000 (GKS190)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

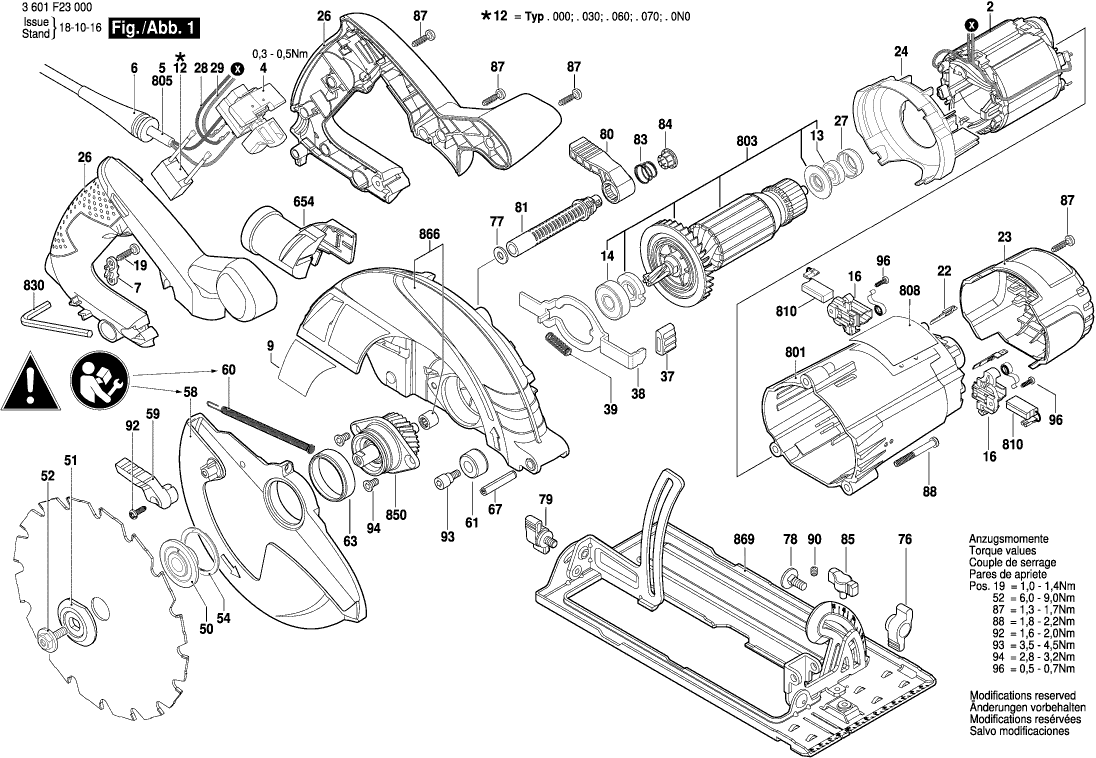

Technical drawing of model Bosch 3601F23000 (GKS190)
Spare parts list of model Bosch 3601F23000 (GKS190)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pole shoe | ||||
| 2 | 1619PS6522 | 19.60 | 23.72 | |
| Switch | ||||
| 4 | 1619P06208 | 11.37 | 13.76 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1619P06313 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1619P31104 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1619P06210 | 5.81 | 7.03 | |
| Ball Bearing | ||||
| 13 | 1619P00456 | 2.86 | 3.46 | |
| Bearing Cover Plate | ||||
| 14 | 1619P06374 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 1619P06212 | 8.35 | 10.10 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Right Angle Plug | ||||
| 22 | 1619P06213 | 1.49 | 1.80 | |
| End cap | ||||
| 23 | 1619P06218 | 7.46 | 9.03 | |
| Baffle | ||||
| 24 | 1619P06219 | 1.49 | 1.80 | |
| Set Of Handles | ||||
| 26 | 1619P06315 | 12.82 | 15.51 | |
| Rubber Ring | ||||
| 27 | 1619P06227 | 1.00 | 1.21 | |
| Wire | ||||
| 28 | 1619P15969 | 1.49 | 1.80 | |
| Wire | ||||
| 29 | 1619P15970 | 1.49 | 1.80 | |
| Cap | ||||
| 37 | 1619P06225 | 1.00 | 1.21 | |
| Guide Bracket | ||||
| 38 | 1619P06226 | 4.18 | 5.06 | |
| Compression Spring | ||||
| 39 | 1619P01642 | 1.00 | 1.21 | |
| Washer | ||||
| 50 | 1619P06341 | 5.81 | 7.03 | |
| Locking washer | ||||
| 51 | 1619P06231 | 6.73 | 8.14 | |
| Screw | ||||
| 52 | 1619P06232 | 2.08 | 2.52 | |
| Locking washer | ||||
| 54 | 1619P06238 | 1.00 | 1.21 | |
| Pivoting Blade Guard | ||||
| 58 | 1600A00XZ6 | 16.79 | 20.32 | |
| Lever | ||||
| 59 | 1619P06235 | 1.49 | 1.80 | |
| Extension Spring | ||||
| 60 | 1619P06334 | 2.86 | 3.46 | |
| Bumper | ||||
| 61 | 1619P06236 | 2.08 | 2.52 | |
| Flange Bushing | ||||
| 63 | 1619P06237 | 1.00 | 1.21 | |
| Coiled Spring Pin | ||||
| 67 | 2917800253 | 1.49 | 1.80 | |
| Wing Nut | ||||
| 76 | 1619P06244 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 77 | 2916011014 | 1.00 | 1.21 | |
| Round-Head Bolt | ||||
| 78 | 1619P06211 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 79 | 1619P06316 | 1.49 | 1.80 | |
| Lever | ||||
| 80 | 1619P06245 | 1.49 | 1.80 | |
| Adjustment rod | ||||
| 81 | 1619P07620 | 2.08 | 2.52 | |
| Spring | ||||
| 83 | 1619X01792 | 1.00 | 1.21 | |
| Cover | ||||
| 84 | 1619P17212 | 2.40 | 2.90 | |
| Wing Screw | ||||
| 85 | 1619P01618 | 1.00 | 1.21 | |
| Screw | ||||
| 87 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 88 | 2610925864 | 1.00 | 1.21 | |
| Adjusting Screw | ||||
| 90 | 1619P04540 | 1.00 | 1.21 | |
| Screw | ||||
| 92 | 1619P01678 | 1.00 | 1.21 | |
| Screw | ||||
| 93 | 1619P06246 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 94 | 2610924687 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 96 | 1619P06252 | 1.49 | 1.80 | |
| Vacuum Adapter | ||||
| 654 | 1619P06204 | 3.04 | 3.68 | |
| Motor Housing | ||||
| 801 | 1619P06372 | 18.94 | 22.92 | |
| Armature set | ||||
| 803 | 1619P06345 | 43.12 | 52.18 | |
| Power supply cord | ||||
| 805 | 1607000391 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 1619P30421 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1619P06346 | 11.37 | 13.76 | |
| Offset Screwdriver | ||||
| 830 | 1619P14506 | 1.49 | 1.80 | |
| Gear | ||||
| 850 | 1619P06392 | 31.42 | 38.02 | |
| Protective Cover | ||||
| 866 | 1619P07590 | 27.81 | 33.65 | |
| Base Plate | ||||
| 869 | 1619P06391 | 34.82 | 42.13 | |
