Here you will find all available parts and drawings of the 'Bosch 3601F76100 (GKS165)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

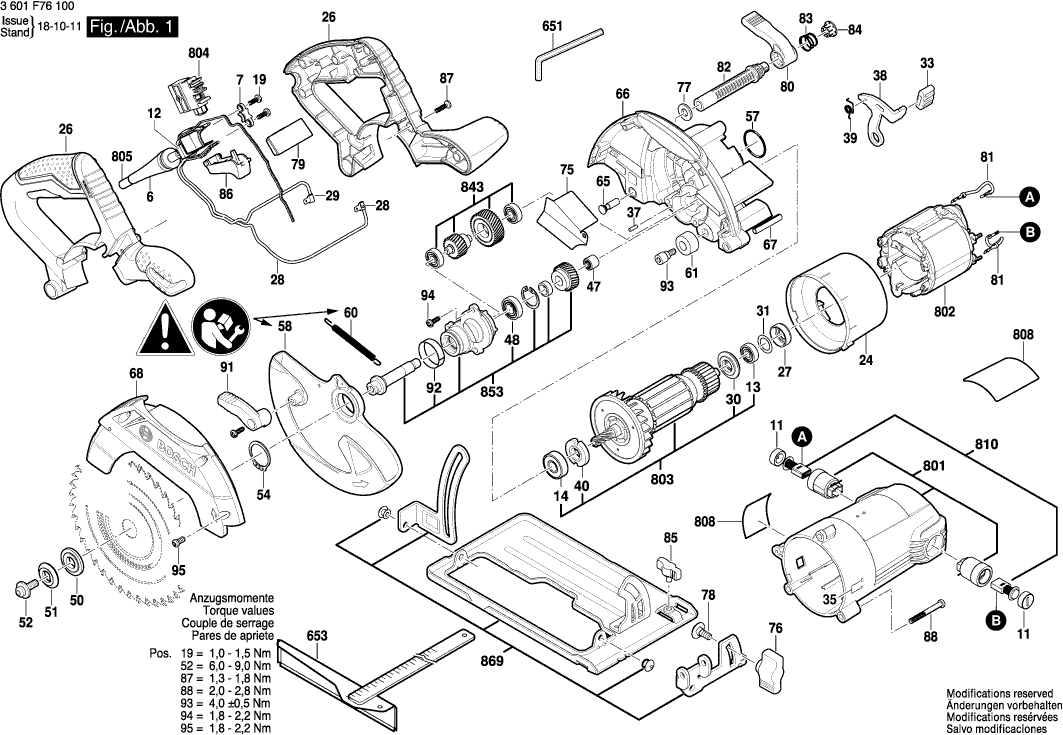

Technical drawing of model Bosch 3601F76100 (GKS165)
Spare parts list of model Bosch 3601F76100 (GKS165)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 1619P06313 | 1.00 | 1.21 | |
| Insulating Cap | ||||
| 11 | 1619P06286 | 2.08 | 2.52 | |
| Suppression Filter | ||||
| 12 | 2610917620 | 3.44 | 4.16 | |
| Ball Bearing | ||||
| 13 | 1619P00456 | 2.86 | 3.46 | |
| Ball Bearing | ||||
| 14 | 1619P10481 | 3.44 | 4.16 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Baffle | ||||
| 24 | 1619P09797 | 2.86 | 3.46 | |
| Set Of Handles | ||||
| 26 | 1619P10804 | 14.94 | 18.08 | |
| Rubber Ring | ||||
| 27 | 1619P06227 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 28 | 1619P10806 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 29 | 1619P10807 | 2.08 | 2.52 | |
| Sealing disk | ||||
| 30 | 1619P04476 | 1.00 | 1.21 | |
| Shim plate | ||||
| 31 | 1619P10795 | 1.00 | 1.21 | |
| Cap | ||||
| 33 | 1619P06225 | 1.00 | 1.21 | |
| Ball | ||||
| 35 | 1619P00291 | 64.67 | 78.25 | |
| Bearing bolt | ||||
| 37 | 2603201020 | 1.00 | 1.21 | |
| Guide Bracket | ||||
| 38 | 1619P10138 | 2.40 | 2.90 | |
| Contact strap | ||||
| 39 | 1619P10139 | 1.49 | 1.80 | |
| Lock Nut | ||||
| 40 | 1619P06319 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 47 | 1619P06310 | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 48 | 1619P10132 | 3.44 | 4.16 | |
| Washer | ||||
| 50 | 1619P10784 | 4.94 | 5.98 | |
| Locking washer | ||||
| 51 | 1619P10785 | 2.40 | 2.90 | |
| Clamp Screw | ||||
| 52 | 1619P10786 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 54 | 2916650014 | 1.49 | 1.80 | |
| O-Ring | ||||
| 57 | F000640007 | 1.00 | 1.21 | |
| Safety Guard | ||||
| 58 | 1619P10134 | 16.79 | 20.32 | |
| Extension Spring | ||||
| 60 | 1619P10136 | 2.08 | 2.52 | |
| Bumper | ||||
| 61 | 1619P06236 | 2.08 | 2.52 | |
| Knurled Bolt | ||||
| 65 | 1619P06325 | 2.08 | 2.52 | |
| Protective Guard | ||||
| 66 | 1619P10116 | 10.90 | 13.19 | |
| Slotted Spring Pin | ||||
| 67 | 1619P10608 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 68 | 1619P10148 | 14.94 | 18.08 | |
| Guide Cover | ||||
| 75 | 1619P10801 | 2.40 | 2.90 | |
| Wing Nut | ||||
| 76 | 1619P01636 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 77 | 2916021013 | 1.49 | 1.80 | |
| Round-Head Bolt | ||||
| 78 | 1619P06211 | 1.00 | 1.21 | |
| Switch Button | ||||
| 79 | 1619P10788 | 2.08 | 2.52 | |
| Lever | ||||
| 80 | 1619P10037 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 81 | 1619P07060 | 1.49 | 1.80 | |
| Adjustment rod | ||||
| 82 | 1619P07620 | 2.08 | 2.52 | |
| Spring | ||||
| 83 | 1619X01792 | 1.00 | 1.21 | |
| Cover | ||||
| 84 | 1619P17212 | 2.40 | 2.90 | |
| Wing Screw | ||||
| 85 | 1619P01618 | 1.00 | 1.21 | |
| Trigger | ||||
| 86 | 1619P10787 | 2.40 | 2.90 | |
| Screw | ||||
| 87 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 88 | 2610925864 | 1.00 | 1.21 | |
| Lever | ||||
| 91 | 1619P10150 | 1.49 | 1.80 | |
| Flange Bushing | ||||
| 92 | 1619P10802 | 2.08 | 2.52 | |
| Screw | ||||
| 93 | 1619P06246 | 2.08 | 2.52 | |
| Screw | ||||
| 94 | 1619P01678 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 95 | 1603435068 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 651 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 651 | 2610364015 | 3.44 | 4.16 | |
| Mitre Fence | ||||
| 653 | 1619X01612 | 10.90 | 13.19 | |
| Adapter | ||||
| 654 | 1619P11691 | 2.40 | 2.90 | |
| Motor Housing | ||||
| 801 | 1619P10061 | 18.94 | 22.92 | |
| Field | ||||
| 802 | 1619P13568 | 34.82 | 42.13 | |
| Armature set | ||||
| 803 | 1619P13569 | 52.45 | 63.46 | |
| Switch | ||||
| 804 | 1619P13570 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 805 | 1619P11944 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 1619P31495 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1619P10063 | 6.73 | 8.14 | |
| Gear Shaft | ||||
| 843 | 1619P13571 | 27.81 | 33.65 | |
| Bearing Flange | ||||
| 853 | 1619P11495 | 31.42 | 38.02 | |
| Baseplate | ||||
| 869 | 1619P11862 | 16.79 | 20.32 | |
