Here you will find all available parts and drawings of the 'Bosch 3601F70002 (GKS160)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

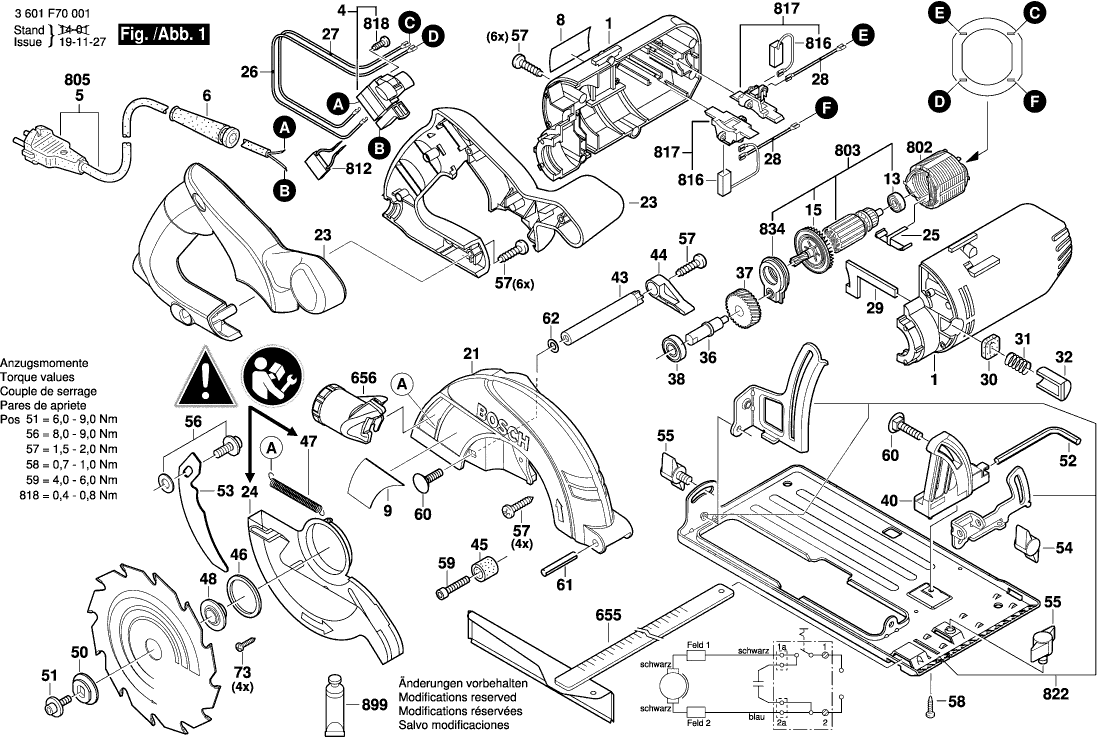

Technical drawing of model Bosch 3601F70002 (GKS160)
Spare parts list of model Bosch 3601F70002 (GKS160)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108262 | 21.30 | 25.77 | |
| Switch | ||||
| 4 | 1607200198 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 9 | 1601118M26 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 15 | 1606610144 | |||
| Protective Cover | ||||
| 21 | 1605510335 | 34.82 | 42.13 | |
| Handle | ||||
| 23 | 1605500247 | 12.82 | 15.51 | |
| Pivoting Blade Guard | ||||
| 24 | 1605510265 | 14.94 | 18.08 | |
| Contact Spring | ||||
| 25 | 1601290010 | 1.49 | 1.80 | |
| connecting piping | ||||
| 26 | 1604449018 | 2.08 | 2.52 | |
| connecting piping | ||||
| 27 | 1604449015 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 28 | 1604449013 | |||
| No information available, not orderable | ||||
| 29 | 1601900005 | |||
| No information available, not orderable | ||||
| 30 | 1601015033 | |||
| Compression Spring | ||||
| 31 | 1604610018 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 32 | 1603231019 | |||
| Drive Shaft | ||||
| 36 | 1603124133 | 9.67 | 11.70 | |
| Cylindrical Gear | ||||
| 37 | 1606320600 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 38 | 1600905031 | 6.73 | 8.14 | |
| Miter Square | ||||
| 40 | 1608190028 | 4.94 | 5.98 | |
| Spacer Tube | ||||
| 43 | 1600360004 | 2.40 | 2.90 | |
| Tensioning Lever | ||||
| 44 | 1602002006 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 45 | 1600305002 | |||
| Clamp ring | ||||
| 46 | 1600102024 | 2.08 | 2.52 | |
| Extension Spring | ||||
| 47 | 1604650019 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 48 | 1605703133 | |||
| Conical Spring Washer | ||||
| 50 | 1605703108 | 2.86 | 3.46 | |
| Hex Socket Head Cap Screw | ||||
| 51 | 1603414007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 53 | 1600025022 | |||
| Hex Nut | ||||
| 54 | 2610387875 | 2.40 | 2.90 | |
| Wing Screw | ||||
| 55 | 1603480018 | 2.08 | 2.52 | |
| Safety Screw | ||||
| 56 | 2603410065 | 4.94 | 5.98 | |
| Screw | ||||
| 57 | 2603490022 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 58 | 1613435034 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 59 | 1603414010 | 1.49 | 1.80 | |
| Round-Head Bolt | ||||
| 60 | 2910281201 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 61 | 2917780157 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 62 | 2916011894 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 73 | 1613435033 | 1.00 | 1.21 | |
| Parallel-Guide | ||||
| 655 | 2608005036 | 8.35 | 10.10 | |
| Adapter | ||||
| 656 | 1608005008 | 2.86 | 3.46 | |
| Field | ||||
| 802 | 1604220343 | 34.82 | 42.13 | |
| Armature | ||||
| 803 | 1604010770 | 71.68 | 86.73 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A1RC | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 812 | 1607328028 | |||
| Carbon-Brush Set | ||||
| 816 | 1607014176 | 12.82 | 15.51 | |
| Brush Plate | ||||
| 817 | 1604336040 | 7.46 | 9.03 | |
| Socket head cap screw | ||||
| 818 | 2603410001 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 822 | 1607000A86 | |||
| Bearing Bracket | ||||
| 834 | 1605808070 | 11.37 | 13.76 | |
| Hexagon Socket Screw Key | ||||
| 852 | 2610364015 | 3.44 | 4.16 | |
| Grease Tube | ||||
| 899 | 1605430003 | 34.82 | 42.13 | |
