Here you will find all available parts and drawings of the 'Bosch 0601923003 (GKS12V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

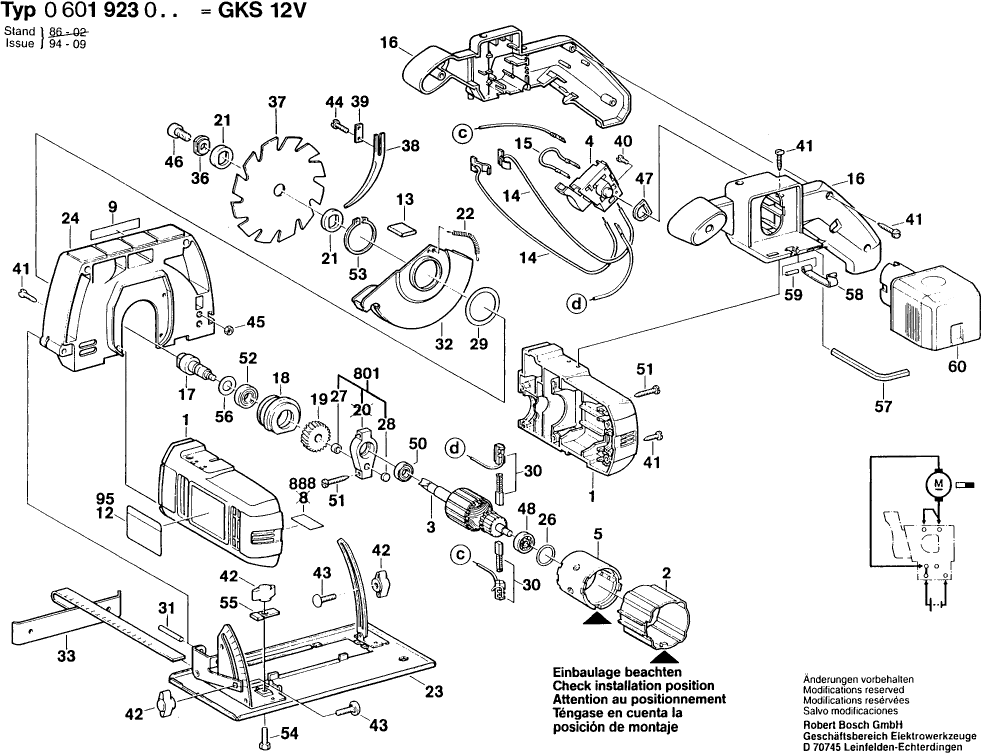

Technical drawing of model Bosch 0601923003 (GKS12V)
Spare parts list of model Bosch 0601923003 (GKS12V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108060 | 35.58 | 43.05 | |
| Reduction Sleeve | ||||
| 2 | 3600499005 | 0.83 | 1.00 | |
| Armature | ||||
| 3 | 3604010000 | 141.37 | 171.06 | |
| No longer available, no replacement | ||||
| 4 | 2607200147 | |||
| Pole housing | ||||
| 5 | 1615100007 | 18.94 | 22.92 | |
| Nameplate | ||||
| 8 | 3601106007 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110481 | 2.08 | 2.52 | |
| Protective Sheath | ||||
| 13 | 1600707002 | 1.00 | 1.21 | |
| Cable | ||||
| 14 | 3604431011 | 8.06 | 9.75 | |
| Connecting Cable | ||||
| 15 | 3604431010 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 16 | 3605132015 | |||
| Drive Shaft | ||||
| 17 | 1603124103 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 18 | 1605820222 | |||
| No longer available, no replacement | ||||
| 19 | 1606320075 | |||
| No longer available, no replacement | ||||
| 21 | 1600144000 | |||
| Extension Spring | ||||
| 22 | 1604650010 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 23 | 3608000000 | |||
| Protective Cover | ||||
| 24 | 1605510121 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 26 | 1900210119 | |||
| Sintered-Metal Bushing | ||||
| 27 | 1900301007 | 3.44 | 4.16 | |
| Lubricating Felt | ||||
| 28 | 1600005001 | 1.49 | 1.80 | |
| Shim washer | ||||
| 29 | 1600102677 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 30 | 3604336000 | 0.83 | 1.00 | |
| Slotted Spring Pin | ||||
| 31 | 2917780157 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 32 | 1605510122 | |||
| No longer available, no replacement | ||||
| 33 | 2601336000 | |||
| No longer available, no replacement | ||||
| 36 | 1600290007 | |||
| No longer available, no replacement | ||||
| 37 | 3608640000 | |||
| Riving Knife | ||||
| 38 | 1600025009 | 3.44 | 4.16 | |
| fixing plate | ||||
| 39 | 1601034035 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 40 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 41 | 2910211019 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 42 | 2610387875 | 2.40 | 2.90 | |
| Round-Head Bolt | ||||
| 43 | 2910281196 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 44 | 2910011128 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 2915011005 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 46 | 2910141238 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 47 | 1600206023 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 48 | 1900905018 | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 50 | 1900905017 | 22.88 | 27.68 | |
| Tapping Screw | ||||
| 51 | 2910211021 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 52 | 3600905038 | 12.21 | 14.77 | |
| Spring retaining ring | ||||
| 53 | 2916650037 | 3.44 | 4.16 | |
| Hex Screw | ||||
| 54 | 2911061197 | 1.49 | 1.80 | |
| connecting terminal | ||||
| 55 | 2601331005 | 1.00 | 1.21 | |
| Sealing disk | ||||
| 56 | 2916130004 | 1.00 | 1.21 | |
| Offset Screwdriver | ||||
| 57 | 1907950007 | 4.94 | 5.98 | |
| Holding Spring | ||||
| 58 | 3604680001 | 0.83 | 1.00 | |
| Needle Roller | ||||
| 59 | 1903201044 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 60 | 2607335010 | |||
| Fast Charger | ||||
| 780 | 2607224425 | 155.51 | 188.17 | |
| Bearing Bracket | ||||
| 801 | 1605807012 | 12.82 | 15.51 | |
| No information available, not orderable | ||||
| 899 | 0601923020 | |||
