Here you will find all available parts and drawings of the 'Bosch 3601F0A100 (GKF600)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

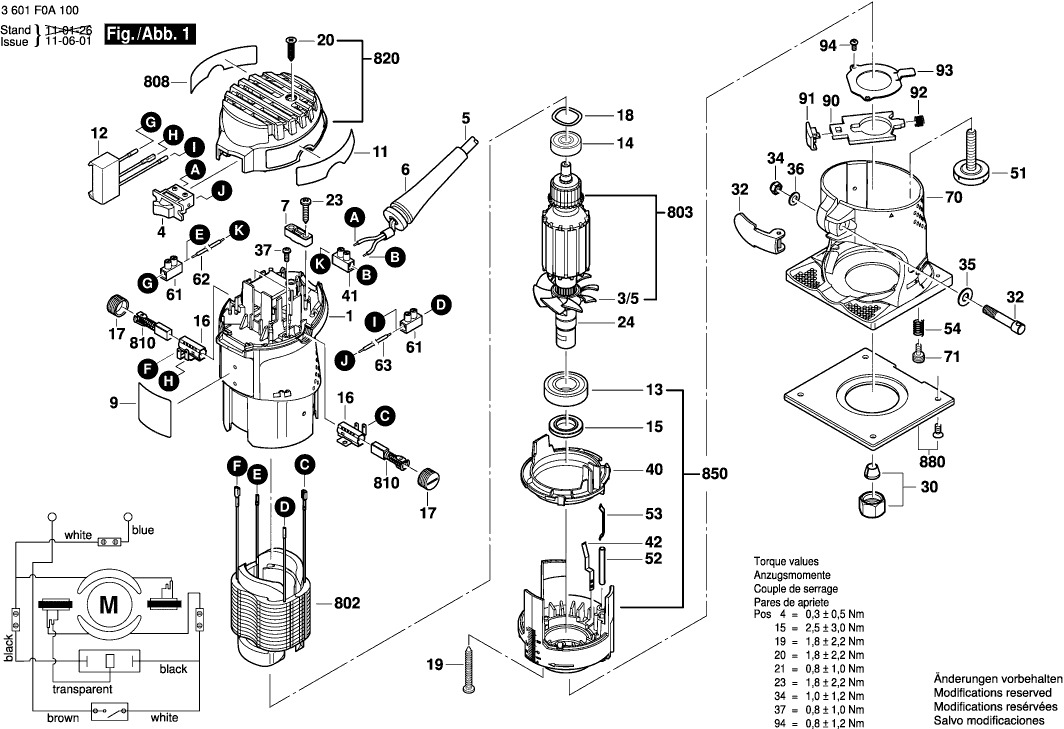

Technical drawing of model Bosch 3601F0A100 (GKF600)
Spare parts list of model Bosch 3601F0A100 (GKF600)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2610035222 | 12.82 | 15.51 | |
| Fan | ||||
| 3/5 | 2609100246 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 2609120274 | 11.02 | 13.33 | |
| Power supply cord | ||||
| 5 | 2609120278 | 13.13 | 15.89 | |
| Grommet | ||||
| 6 | 2600703018 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609131379 | 2.08 | 2.52 | |
| Nameplate | ||||
| 11 | 2609131380 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 2609120164 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 13 | 2609110435 | |||
| groove ball bearing | ||||
| 14 | 2609110436 | 6.73 | 8.14 | |
| Self-locking nut | ||||
| 15 | 2609110253 | 2.52 | 3.05 | |
| Brush Holder | ||||
| 16 | 2609110217 | 1.49 | 1.80 | |
| Brush-Cover | ||||
| 17 | 2609100203 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 18 | 2609110294 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 19 | 2910611093 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 20 | 2609110490 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 23 | 2910611020 | 1.49 | 1.80 | |
| Retaining clip | ||||
| 24 | 2916650006 | 1.49 | 1.80 | |
| contour sleeve | ||||
| 30 | 2609199145 | 18.94 | 22.92 | |
| Clamping Lever | ||||
| 32 | 2609199041 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 34 | 2609110289 | 1.00 | 1.21 | |
| Conical Spring Washer | ||||
| 35 | 2609110282 | 1.00 | 1.21 | |
| Washer | ||||
| 36 | 2609110290 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 37 | 2603490017 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 40 | 2609100247 | 2.40 | 2.90 | |
| connecting terminal | ||||
| 41 | 2609120153 | 1.49 | 1.80 | |
| Contact Strap | ||||
| 42 | 2609110297 | 1.00 | 1.21 | |
| Screw | ||||
| 51 | 2609110241 | 3.04 | 3.68 | |
| Pressure Spindle | ||||
| 52 | 2609110245 | 1.00 | 1.21 | |
| Spring Plate | ||||
| 53 | 2609110246 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 54 | 2609110306 | 1.00 | 1.21 | |
| Terminal Block | ||||
| 61 | 2609120177 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 62 | 2609120180 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 63 | 2609120256 | 2.40 | 2.90 | |
| Base Plate | ||||
| 70 | 2609110307 | 27.81 | 33.65 | |
| Bolt | ||||
| 71 | 2609110283 | 2.08 | 2.52 | |
| Plate | ||||
| 90 | 2609110741 | 2.86 | 3.46 | |
| Button | ||||
| 91 | 2609100248 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 92 | 2609110255 | 1.00 | 1.21 | |
| Cover Plate | ||||
| 93 | 2609110480 | 1.00 | 1.21 | |
| Screw | ||||
| 94 | 2609110367 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 658 | 2610008117 | |||
| Stator | ||||
| 802 | 2609120169 | 39.14 | 47.36 | |
| Armature | ||||
| 803 | 2609120316 | 64.67 | 78.25 | |
| Nameplate | ||||
| 808 | 2609131463 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2609120149 | 9.67 | 11.70 | |
| Housing Cover | ||||
| 820 | 2609199109 | 8.35 | 10.10 | |
| Bearing Flange | ||||
| 850 | 2610008123 | 31.42 | 38.02 | |
| Cover | ||||
| 854/7 | 2609100386 | 8.35 | 10.10 | |
| Base | ||||
| 855 | 2610008115 | 88.83 | 107.48 | |
| Plain Washer | ||||
| 855/16 | 2916011014 | 1.00 | 1.21 | |
| Base Plate | ||||
| 855/2 | 2609110372 | 5.81 | 7.03 | |
| Screw | ||||
| 855/21 | 2609110347 | 1.00 | 1.21 | |
| Base | ||||
| 855/3 | 2609100381 | 6.73 | 8.14 | |
| Clamping Lever | ||||
| 855/32 | 2609199041 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 855/34 | 2609110289 | 1.00 | 1.21 | |
| Conical Spring Washer | ||||
| 855/35 | 2609110282 | 1.00 | 1.21 | |
| Washer | ||||
| 855/36 | 2609110290 | 1.00 | 1.21 | |
| Pin | ||||
| 855/4 | 2609110455 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 855/5 | 2600590006 | 1.49 | 1.80 | |
| Screw | ||||
| 855/51 | 2609110241 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 855/54 | 2609110306 | 1.00 | 1.21 | |
| Wing Nut | ||||
| 855/6 | 2609199008 | 1.49 | 1.80 | |
| Round-Head Bolt | ||||
| 855/7 | 2910281201 | 1.00 | 1.21 | |
| Pin | ||||
| 855/9 | 2609110483 | 1.00 | 1.21 | |
| Edge Guide | ||||
| 857 | 2610008113 | 18.94 | 22.92 | |
| Screw | ||||
| 857/656 | 2609110364 | 1.00 | 1.21 | |
| Wing Nut | ||||
| 857/657 | 2609199008 | 1.49 | 1.80 | |
| Knurled Thumbscrew | ||||
| 857/659 | 2609100568 | 2.86 | 3.46 | |
| Plain Washer | ||||
| 857/662 | 2916011014 | 1.00 | 1.21 | |
| Single-Head Eng. Wrench | ||||
| 863 | 2609110438 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 864/1 | 2609100383 | |||
| Handle | ||||
| 864/2 | 2609100423 | 3.44 | 4.16 | |
| Cap-Handle | ||||
| 864/3 | 2609100140 | 4.58 | 5.54 | |
| Screw | ||||
| 864/4 | 2609110607 | 2.08 | 2.52 | |
| Nut | ||||
| 864/5 | 2609110548 | 1.49 | 1.80 | |
| Knurled Thumbscrew | ||||
| 865 | 2609199114 | 8.35 | 10.10 | |
| Screw | ||||
| 866 | 2609199100 | 1.49 | 1.80 | |
| Screw | ||||
| 868 | 2609110553 | 1.00 | 1.21 | |
| Dust Chamber | ||||
| 870 | 2609100384 | 7.46 | 9.03 | |
| Suction Socket | ||||
| 871 | 2609100385 | 8.35 | 10.10 | |
| Base Plate | ||||
| 880 | 2610008124 | 10.90 | 13.19 | |
