Here you will find all available parts and drawings of the 'Bosch 06015977A0 (GKE40BCE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

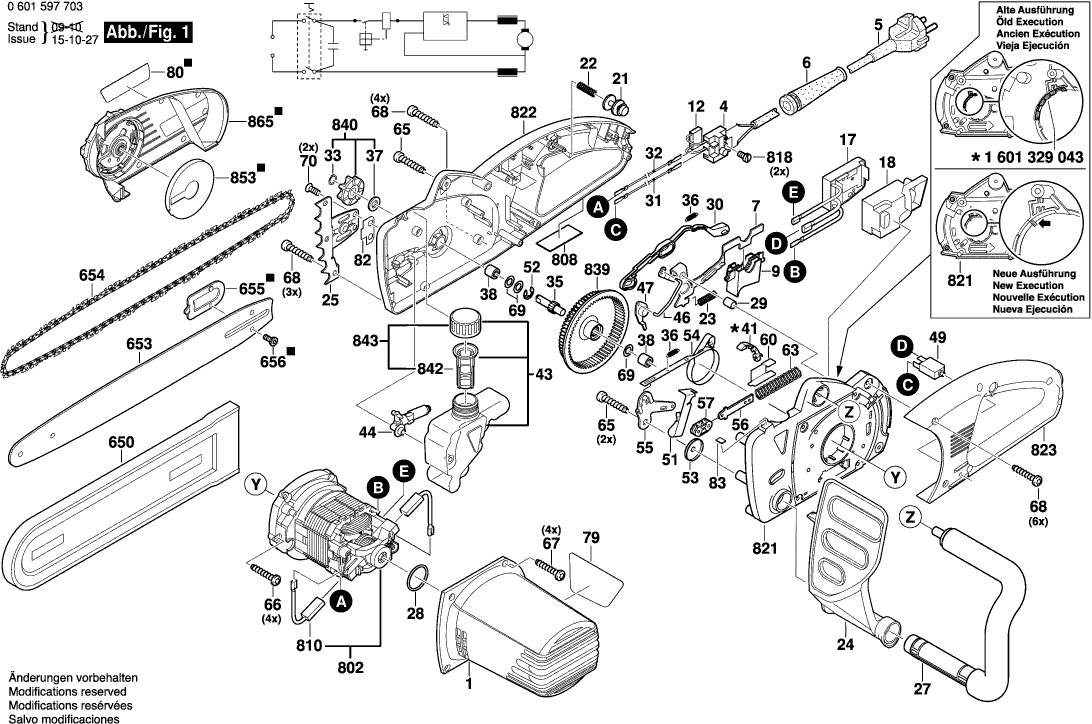

Technical drawing of model Bosch 06015977A0 (GKE40BCE)
Spare parts list of model Bosch 06015977A0 (GKE40BCE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605190195 | 21.30 | 25.77 | |
| Switch | ||||
| 4 | 1607200193 | 11.37 | 13.76 | |
| Power supply cord | ||||
| 5 | 1604460301 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 2609005766 | 2.86 | 3.46 | |
| Lever | ||||
| 7 | 1602002008 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 9 | 1603231020 | |||
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Speed governor | ||||
| 17 | 1607233154 | 34.82 | 42.13 | |
| Housing | ||||
| 18 | 1605108241 | 5.81 | 7.03 | |
| Locking Bolt | ||||
| 21 | 1600390019 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 22 | 1604617008 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 23 | 1604617015 | 1.00 | 1.21 | |
| Protective Shield | ||||
| 24 | 1605510315 | 9.67 | 11.70 | |
| Spiked bumper | ||||
| 25 | 1601098008 | 5.81 | 7.03 | |
| Handle | ||||
| 27 | 1605133045 | 13.13 | 15.89 | |
| Intermediate Ring | ||||
| 28 | 1600206035 | 1.00 | 1.21 | |
| Bushing | ||||
| 29 | 1600300096 | 1.49 | 1.80 | |
| Pusher | ||||
| 30 | 1602319019 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 31 | 1604431005 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 32 | 1604431006 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 33 | 2916650001 | 2.40 | 2.90 | |
| Shaft | ||||
| 35 | 1606100039 | 13.13 | 15.89 | |
| Extension Spring | ||||
| 36 | 1604650016 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 37 | 1600205037 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 38 | 2600917006 | 3.44 | 4.16 | |
| Oil Reservoir | ||||
| 43 | 1605405004 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 44 | 1605437003 | |||
| Rod | ||||
| 46 | 1603023003 | 4.94 | 5.98 | |
| Swivelling Lever | ||||
| 47 | 1600590014 | 5.81 | 7.03 | |
| Switch | ||||
| 49 | 1607200195 | 18.94 | 22.92 | |
| Clamp Spring | ||||
| 51 | 1604651013 | 2.86 | 3.46 | |
| Locking washer | ||||
| 52 | 2916080012 | 1.49 | 1.80 | |
| Collar Disc | ||||
| 53 | 1600328030 | 1.49 | 1.80 | |
| Brake Band | ||||
| 54 | 1604652020 | 4.94 | 5.98 | |
| Lever Arm | ||||
| 55 | 1600590019 | 2.86 | 3.46 | |
| Spring Guide | ||||
| 56 | 1600590016 | 2.08 | 2.52 | |
| Lever Carrier | ||||
| 57 | 1600390018 | 2.86 | 3.46 | |
| Pressure Plate | ||||
| 60 | 1600590012 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 63 | 1604617017 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 65 | 2914211528 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 66 | 2914211528 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 67 | 2914201506 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 68 | 2914201506 | 1.00 | 1.21 | |
| Friction Washer | ||||
| 69 | 1600100038 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 70 | 2910601325 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 79 | 1601118K70 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 80 | 1601118A86 | 3.44 | 4.16 | |
| Seal Strip | ||||
| 82 | 1601010009 | 2.08 | 2.52 | |
| Sticker | ||||
| 83 | 1601118A64 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 650 | 1605510329 | |||
| Guide Rail | ||||
| 653 | 1602317012 | 47.53 | 57.51 | |
| Saw Chain | ||||
| 654 | 2609006251 | 27.81 | 33.65 | |
| Adjusting Plate | ||||
| 655 | 1601015035 | 5.81 | 7.03 | |
| Countersunk-Head Screw | ||||
| 656 | 1603421003 | 1.00 | 1.21 | |
| Alternating-Current Motor | ||||
| 802 | 1607000A38 | 173.95 | 210.48 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014170 | 16.79 | 20.32 | |
| Socket head cap screw | ||||
| 818 | 2603410001 | 1.49 | 1.80 | |
| Housing Section | ||||
| 821 | 1607000A87 | 21.30 | 25.77 | |
| Housing Section | ||||
| 822 | 1607000A36 | 64.67 | 78.25 | |
| Handle Cover | ||||
| 823 | 1605133047 | 14.94 | 18.08 | |
| Ring Gear | ||||
| 839 | 1607000A06 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 840 | 1607000885 | |||
| Strainer | ||||
| 842 | 1607431000 | 4.94 | 5.98 | |
| RSV Cap | ||||
| 843 | 1607000A47 | 6.73 | 8.14 | |
| Dust-Protection Cover | ||||
| 853 | 1605190190 | 2.86 | 3.46 | |
| Protective Cover | ||||
| 865 | 1605510333 | 31.42 | 38.02 | |
