Here you will find all available parts and drawings of the 'Bosch 3601B41200 ( GIC120C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

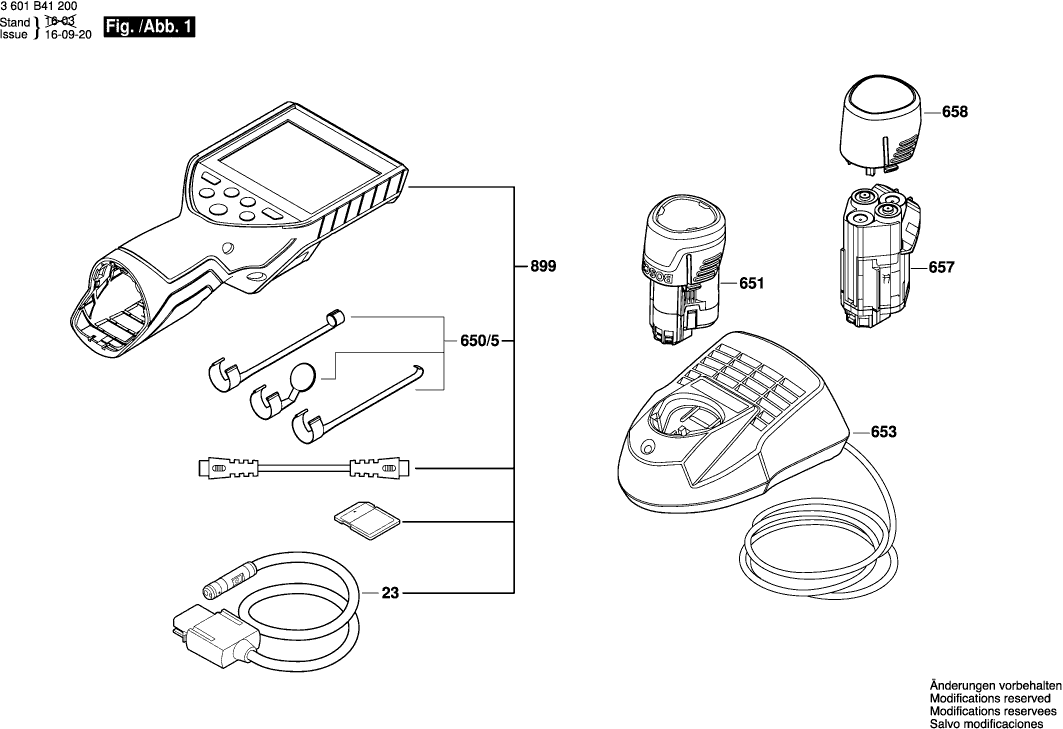

Technical drawing of model Bosch 3601B41200 ( GIC120C )
Spare parts list of model Bosch 3601B41200 ( GIC120C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Imager module | ||||
| 23 | 1619PA8647 | 148.65 | 179.87 | |
| Accessory Set | ||||
| 650/5 | 1600A008F6 | 23.75 | 28.74 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 651 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 651 | 1607A350DY | 34.69 | 41.97 | |
| Fast Charger AUS 240/10,8V | ||||
| 653 | 2607225137 | 55.25 | 66.85 | |
| Fast Charger SAM 115/10,8V, 30 MIN. | ||||
| 653 | 2607225141 | 55.25 | 66.85 | |
| Fast Charger ROK 230/10,8V, 30 MIN. | ||||
| 653 | 2607225145 | 55.25 | 66.85 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| Battery Holder | ||||
| 657 | 2609199766 | 5.83 | 7.05 | |
| Battery Cover | ||||
| 658 | 2609199769 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 899 | 06012412K0 | |||
