Here you will find all available parts and drawings of the 'Bosch 3600J10100 (GHP5-14)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

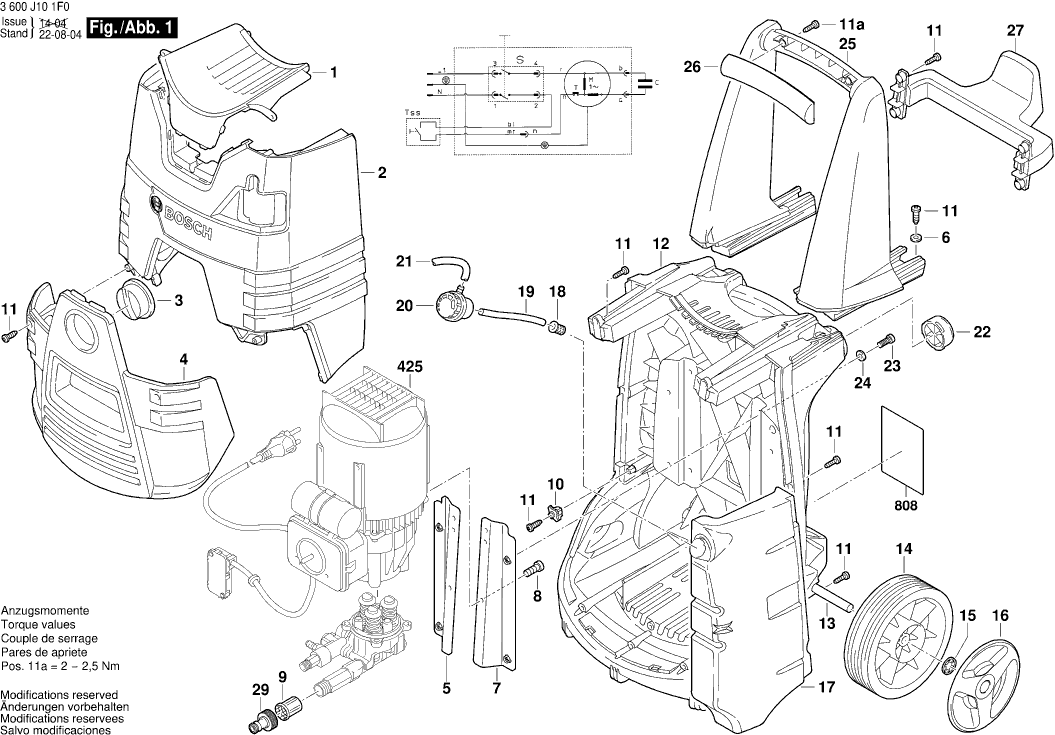

Technical drawing of model Bosch 3600J10100 (GHP5-14)
Spare parts list of model Bosch 3600J10100 (GHP5-14)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Safety Cover | ||||
| 1 | F016L72102 | 14.94 | 18.08 | |
| Housing | ||||
| 2 | F016L72103 | 39.14 | 47.36 | |
| Knob | ||||
| 3 | F016L72008 | 4.94 | 5.98 | |
| Housing | ||||
| 4 | F016L72104 | 23.90 | 28.92 | |
| Bracket | ||||
| 5 | F016L72105 | 23.90 | 28.92 | |
| Plain Washer | ||||
| 6 | F016L72106 | 2.86 | 3.46 | |
| Bracket | ||||
| 7 | F016L72107 | 31.42 | 38.02 | |
| Screw | ||||
| 8 | F016L72108 | 1.49 | 1.80 | |
| Filter | ||||
| 9 | F016L73591 | 2.08 | 2.52 | |
| Grommet | ||||
| 10 | F016L72109 | 1.49 | 1.80 | |
| Screw | ||||
| 11 | F016L72012 | 1.00 | 1.21 | |
| Housing | ||||
| 12 | F016L72110 | 64.67 | 78.25 | |
| Axle | ||||
| 13 | F016L72111 | 16.79 | 20.32 | |
| Wheel | ||||
| 14 | F016L72112 | 16.79 | 20.32 | |
| Plain Washer | ||||
| 15 | F016L72113 | 2.08 | 2.52 | |
| Safety Cover | ||||
| 16 | F016L72114 | 11.37 | 13.76 | |
| Tank | ||||
| 17 | F016L72115 | 18.94 | 22.92 | |
| Filter | ||||
| 18 | F016L72006 | 1.00 | 1.21 | |
| Hose | ||||
| 19 | F016L72116 | 4.94 | 5.98 | |
| Plug | ||||
| 20 | F016L72117 | 10.90 | 13.19 | |
| Hose | ||||
| 21 | F016L72118 | 5.81 | 7.03 | |
| Rubber Base | ||||
| 22 | F016L72119 | 7.46 | 9.03 | |
| Screw | ||||
| 23 | F016L72000 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 24 | F016L72120 | 2.40 | 2.90 | |
| Handle | ||||
| 25 | F016L72121 | 39.14 | 47.36 | |
| Safety Cover | ||||
| 26 | F016L72122 | 10.90 | 13.19 | |
| Holder | ||||
| 27 | F016L72123 | 13.13 | 15.89 | |
| Hose Coupling | ||||
| 29 | F016L72010 | 2.86 | 3.46 | |
| Plug | ||||
| 101 | F016L72124 | 6.73 | 8.14 | |
| Pump head | ||||
| 102 | F016L72125 | 34.82 | 42.13 | |
| Screw | ||||
| 103 | F016L72126 | 2.08 | 2.52 | |
| O-Ring | ||||
| 104 | F016L72035 | 1.00 | 1.21 | |
| Adapter | ||||
| 105 | F016F04381 | 16.79 | 20.32 | |
| O-Ring | ||||
| 106 | F016L72014 | 1.00 | 1.21 | |
| Adapter | ||||
| 107 | F016F04382 | 14.94 | 18.08 | |
| O-Ring | ||||
| 108 | F016L72074 | 1.49 | 1.80 | |
| Valve | ||||
| 109 | F016L72129 | 7.46 | 9.03 | |
| Seal | ||||
| 110 | F016L72130 | 4.18 | 5.06 | |
| O-Ring | ||||
| 111 | F016L72131 | 1.49 | 1.80 | |
| Bushing | ||||
| 112 | F016L72132 | 11.37 | 13.76 | |
| Bushing | ||||
| 113 | F016L72133 | 7.46 | 9.03 | |
| Screw | ||||
| 115 | F016L72134 | 2.86 | 3.46 | |
| Piston Guide | ||||
| 116 | F016L72135 | 16.79 | 20.32 | |
| Spring | ||||
| 117 | F016L72136 | 4.94 | 5.98 | |
| Piston | ||||
| 118 | F016F04323 | 16.79 | 20.32 | |
| Wobble Plate | ||||
| 119 | F016L72137 | 2.40 | 2.90 | |
| Plug | ||||
| 120 | F016L72138 | 7.46 | 9.03 | |
| Screw | ||||
| 121 | F016L72139 | 8.35 | 10.10 | |
| Spring | ||||
| 122 | F016L72140 | 23.90 | 28.92 | |
| O-Ring | ||||
| 123 | F016L72065 | 1.00 | 1.21 | |
| O-Ring | ||||
| 124 | F016L72141 | 1.49 | 1.80 | |
| Adapter | ||||
| 125 | F016L72142 | 11.37 | 13.76 | |
| Spring | ||||
| 126 | F016L72072 | 1.49 | 1.80 | |
| Ball | ||||
| 127 | F016L72073 | 1.49 | 1.80 | |
| O-Ring | ||||
| 128 | F016L72074 | 1.49 | 1.80 | |
| Nipple | ||||
| 129 | F016L72143 | 6.73 | 8.14 | |
| O-Ring | ||||
| 130 | F016L72019 | 1.00 | 1.21 | |
| Valve Insert | ||||
| 131 | F016L72018 | 9.67 | 11.70 | |
| Spring | ||||
| 132 | F016L72017 | 2.08 | 2.52 | |
| O-Ring | ||||
| 133 | F016L72016 | 1.00 | 1.21 | |
| Injector | ||||
| 134 | F016L72015 | 11.37 | 13.76 | |
| Pump head | ||||
| 135 | F016F04332 | 173.95 | 210.48 | |
| Ball Bearing | ||||
| 401 | F016L72144 | 14.94 | 18.08 | |
| Wobble Plate | ||||
| 402 | F016L72145 | 13.13 | 15.89 | |
| Ball Bearing | ||||
| 403 | F016L72146 | 16.79 | 20.32 | |
| Screw | ||||
| 405 | F016L72148 | 2.86 | 3.46 | |
| Pump | ||||
| 406 | F016L72149 | 21.30 | 25.77 | |
| Ball Bearing | ||||
| 407 | F016L72150 | 11.37 | 13.76 | |
| Cover | ||||
| 408 | F016L72151 | 16.79 | 20.32 | |
| Seal | ||||
| 409 | F016L72152 | 2.08 | 2.52 | |
| O-Ring | ||||
| 410 | F016L72153 | 1.00 | 1.21 | |
| Fan | ||||
| 411 | F016L72154 | 9.67 | 11.70 | |
| Motor Housing | ||||
| 412 | F016L72155 | 14.94 | 18.08 | |
| Plain Washer | ||||
| 413 | F016L72156 | 1.00 | 1.21 | |
| Screw | ||||
| 414 | F016L72157 | 1.00 | 1.21 | |
| O-Ring | ||||
| 415 | F016L72158 | 1.00 | 1.21 | |
| Housing | ||||
| 416 | F016L72159 | 8.35 | 10.10 | |
| Plain Washer | ||||
| 417 | F016L72160 | 1.00 | 1.21 | |
| Screw | ||||
| 418 | F016L72161 | 1.00 | 1.21 | |
| Cover | ||||
| 419 | F016L73339 | 7.46 | 9.03 | |
| Switch | ||||
| 420 | F016L72087 | 14.94 | 18.08 | |
| Grommet | ||||
| 421 | F016L72092 | 4.94 | 5.98 | |
| Power supply cord | ||||
| 422 | F016L72302 | 11.37 | 13.76 | |
| O-Ring | ||||
| 423 | F016L72163 | 1.49 | 1.80 | |
| Condenser | ||||
| 424 | F016F05928 | 16.79 | 20.32 | |
| Motor | ||||
| 425 | F016F04334 | 495.00 | 598.95 | |
| Clamp | ||||
| 426 | F016L72094 | 8.35 | 10.10 | |
| Electronic Module | ||||
| 427 | F016L72595 | 23.90 | 28.92 | |
| Screw | ||||
| 428 | F016L72086 | 1.00 | 1.21 | |
| Trigger | ||||
| 501 | F016L72097 | 47.53 | 57.51 | |
| Wide Angle Nozzle | ||||
| 502 | F016L72166 | 23.90 | 28.92 | |
| O-Ring | ||||
| 503 | F016L72099 | 1.00 | 1.21 | |
| Hose | ||||
| 504 | F016F04476 | 136.48 | 165.14 | |
| O-Ring | ||||
| 505 | F016L72101 | 1.00 | 1.21 | |
| Trigger | ||||
| 511 | F016L73068 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 512 | F016F05939 | |||
| O-Ring | ||||
| 512/815 | 1619PB2119 | 1.90 | 2.30 | |
| Nameplate | ||||
| 808 | F016F05904 | 1.00 | 1.21 | |
| Seal | ||||
| 814 | F016F04324 | 13.13 | 15.89 | |
