Here you will find all available parts and drawings of the 'Bosch 3600J10000 (GHP5-13C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

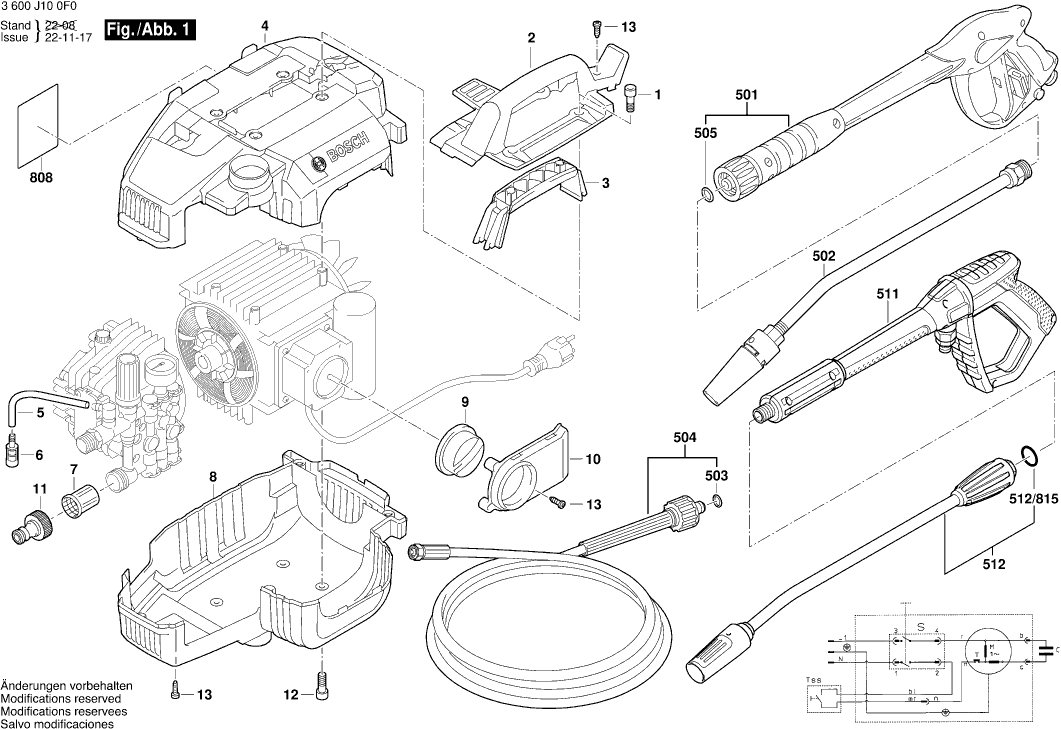

Technical drawing of model Bosch 3600J10000 (GHP5-13C)
Spare parts list of model Bosch 3600J10000 (GHP5-13C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | F016L72000 | 1.00 | 1.21 | |
| Handle | ||||
| 2 | F016L72001 | 10.90 | 13.19 | |
| Cover | ||||
| 3 | F016L72002 | 8.35 | 10.10 | |
| Housing | ||||
| 4 | F016L72003 | 16.79 | 20.32 | |
| Hose | ||||
| 5 | F016L72004 | 5.81 | 7.03 | |
| Filter | ||||
| 6 | F016L72005 | 4.94 | 5.98 | |
| Filter | ||||
| 7 | F016L73591 | 2.08 | 2.52 | |
| Housing | ||||
| 8 | F016L72007 | 16.79 | 20.32 | |
| Knob | ||||
| 9 | F016L72008 | 4.94 | 5.98 | |
| Safety Cover | ||||
| 10 | F016L72009 | 6.73 | 8.14 | |
| Hose Coupling | ||||
| 11 | F016L72010 | 2.86 | 3.46 | |
| Screw | ||||
| 12 | F016L72011 | 1.00 | 1.21 | |
| Screw | ||||
| 13 | F016L72012 | 1.00 | 1.21 | |
| Adapter | ||||
| 101 | F016F04380 | 14.94 | 18.08 | |
| O-Ring | ||||
| 102 | F016L72014 | 1.00 | 1.21 | |
| Injector | ||||
| 103 | F016L72015 | 11.37 | 13.76 | |
| O-Ring | ||||
| 104 | F016L72016 | 1.00 | 1.21 | |
| Spring | ||||
| 105 | F016L72017 | 2.08 | 2.52 | |
| Valve Insert | ||||
| 106 | F016L72018 | 9.67 | 11.70 | |
| O-Ring | ||||
| 107 | F016L72019 | 1.00 | 1.21 | |
| Pump head | ||||
| 108 | F016L72020 | 110.30 | 133.46 | |
| Valve | ||||
| 109 | F016L72021 | 4.94 | 5.98 | |
| O-Ring | ||||
| 110 | F016L72022 | 1.00 | 1.21 | |
| O-Ring | ||||
| 111 | F016L72023 | 1.00 | 1.21 | |
| Plug | ||||
| 112 | F016L72024 | 7.46 | 9.03 | |
| Retaining clip | ||||
| 113 | F016L72025 | 4.18 | 5.06 | |
| Screw | ||||
| 114 | F016L72026 | 1.00 | 1.21 | |
| Plug | ||||
| 115 | F016L72027 | 4.18 | 5.06 | |
| Nipple | ||||
| 116 | F016L72028 | 2.40 | 2.90 | |
| Plug | ||||
| 117 | F016L72029 | 11.37 | 13.76 | |
| O-Ring | ||||
| 118 | F016L72030 | 2.08 | 2.52 | |
| Piston | ||||
| 119 | F016L72031 | 14.94 | 18.08 | |
| Piston | ||||
| 120 | F016L72032 | 14.94 | 18.08 | |
| O-Ring | ||||
| 121 | F016L72033 | 1.90 | 2.30 | |
| O-Ring | ||||
| 122 | F016L72030 | 2.08 | 2.52 | |
| Spacer Ring | ||||
| 123 | F016L72034 | 1.49 | 1.80 | |
| O-Ring | ||||
| 124 | F016L72035 | 1.00 | 1.21 | |
| O-Ring | ||||
| 125 | F016L72014 | 1.00 | 1.21 | |
| Piston Guide | ||||
| 126 | F016L72036 | 16.79 | 20.32 | |
| Wobble Plate | ||||
| 127 | F016L72037 | 4.18 | 5.06 | |
| Spring | ||||
| 128 | F016L72038 | 4.94 | 5.98 | |
| Wobble Plate | ||||
| 129 | F016L72039 | 2.08 | 2.52 | |
| Pin | ||||
| 130 | F016L72040 | 1.49 | 1.80 | |
| Insert | ||||
| 131 | F016L72041 | 14.94 | 18.08 | |
| Plug | ||||
| 132 | F016L72042 | 1.00 | 1.21 | |
| Nut | ||||
| 133 | F016L72043 | 1.00 | 1.21 | |
| Plug | ||||
| 134 | F016L72044 | 14.94 | 18.08 | |
| Pressure gauge | ||||
| 135 | F016L72045 | 14.94 | 18.08 | |
| Plug | ||||
| 136 | F016L72046 | 4.94 | 5.98 | |
| O-Ring | ||||
| 137 | F016L72047 | 1.00 | 1.21 | |
| Piston Guide | ||||
| 140 | F016L72048 | 8.35 | 10.10 | |
| Pump unit | ||||
| 143 | F016L72049 | 58.03 | 70.22 | |
| Bushing | ||||
| 144 | F016L72050 | 13.13 | 15.89 | |
| Cover | ||||
| 146 | F016L72051 | 12.82 | 15.51 | |
| Screw | ||||
| 147 | F016L72052 | 1.00 | 1.21 | |
| Plug | ||||
| 148 | F016L72053 | 1.49 | 1.80 | |
| Plug | ||||
| 149 | F016L72054 | 10.90 | 13.19 | |
| Key | ||||
| 150 | F016L72055 | 2.08 | 2.52 | |
| Ball Bearing | ||||
| 151 | F016L72056 | 11.37 | 13.76 | |
| Retaining ring | ||||
| 152 | F016L72057 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 153 | F016L72058 | 2.86 | 3.46 | |
| Connecting Rod | ||||
| 155 | F016L72059 | 8.35 | 10.10 | |
| Pin | ||||
| 156 | F016L72060 | 1.49 | 1.80 | |
| Pin | ||||
| 157 | F016L72061 | 11.37 | 13.76 | |
| Washer | ||||
| 160 | F016F04356 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 162 | F016L72062 | 1.00 | 1.21 | |
| Screw | ||||
| 163 | F016L72063 | 2.08 | 2.52 | |
| Crankshaft | ||||
| 164 | F016L72064 | 27.81 | 33.65 | |
| O-Ring | ||||
| 165 | F016L72065 | 1.00 | 1.21 | |
| O-Ring | ||||
| 166 | F016L72030 | 2.08 | 2.52 | |
| Pin | ||||
| 167 | F016L72066 | 10.90 | 13.19 | |
| Spring | ||||
| 168 | F016L72067 | 2.86 | 3.46 | |
| Plain Washer | ||||
| 169 | F016L72068 | 1.49 | 1.80 | |
| O-Ring | ||||
| 170 | F016L72069 | 1.00 | 1.21 | |
| Adapter | ||||
| 171 | F016L72070 | 9.67 | 11.70 | |
| Adapter | ||||
| 172 | F016L72071 | 10.90 | 13.19 | |
| Spring | ||||
| 173 | F016L72072 | 1.49 | 1.80 | |
| Ball | ||||
| 174 | F016L72073 | 1.49 | 1.80 | |
| O-Ring | ||||
| 175 | F016L72074 | 1.49 | 1.80 | |
| Adapter | ||||
| 176 | F016L72075 | 14.94 | 18.08 | |
| Pump | ||||
| 177 | F016F04328 | 495.00 | 598.95 | |
| Pump head | ||||
| 178 | F016F04329 | 304.15 | 368.02 | |
| Valve | ||||
| 179 | F016F04330 | 47.53 | 57.51 | |
| Plug | ||||
| 180 | F016L72076 | 10.90 | 13.19 | |
| Rotary Handle | ||||
| 181 | F016L72077 | 3.44 | 4.16 | |
| Screw | ||||
| 182 | F016L72078 | 4.94 | 5.98 | |
| Plug | ||||
| 190 | 1619PB2107 | 1.49 | 1.80 | |
| Fan | ||||
| 401 | F016L72079 | 7.46 | 9.03 | |
| Seal | ||||
| 402 | F016L72080 | 2.08 | 2.52 | |
| Screw | ||||
| 403 | F016L72081 | 1.00 | 1.21 | |
| Cover | ||||
| 404 | F016L72082 | 16.79 | 20.32 | |
| Ball Bearing | ||||
| 405 | F016L72083 | 13.13 | 15.89 | |
| Clamp | ||||
| 406 | F016L72084 | 4.18 | 5.06 | |
| Seal | ||||
| 407 | F016L72085 | 2.86 | 3.46 | |
| Screw | ||||
| 408 | F016L72086 | 1.00 | 1.21 | |
| Switch | ||||
| 409 | F016L72087 | 14.94 | 18.08 | |
| Housing | ||||
| 410 | F016L72088 | 7.46 | 9.03 | |
| Screw | ||||
| 411 | F016L72089 | 1.00 | 1.21 | |
| Capacitor | ||||
| 412 | F016F06013 | 23.90 | 28.92 | |
| Condenser | ||||
| 412 | F016L72090 | 15.61 | 18.89 | |
| Clamp | ||||
| 413 | F016F05930 | 3.44 | 4.16 | |
| Clamp | ||||
| 413 | F016L72091 | 2.52 | 3.05 | |
| Grommet | ||||
| 414 | F016L72092 | 4.94 | 5.98 | |
| Electronic Module | ||||
| 415 | F016L72093 | 18.94 | 22.92 | |
| Clamp | ||||
| 416 | F016L72094 | 8.35 | 10.10 | |
| Power supply cord | ||||
| 417 | F016L72302 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 418 | F016F05931 | |||
| Grommet | ||||
| 419 | F016L72096 | 4.94 | 5.98 | |
| Trigger | ||||
| 501 | F016L72097 | 47.53 | 57.51 | |
| Wide Angle Nozzle | ||||
| 502 | F016L72098 | 50.23 | 60.78 | |
| O-Ring | ||||
| 503 | F016L72099 | 1.00 | 1.21 | |
| Hose | ||||
| 504 | F016F04523 | 133.46 | 161.49 | |
| Hose | ||||
| 504 | F016F04475 | 122.80 | 148.59 | |
| O-Ring | ||||
| 505 | F016L72101 | 1.00 | 1.21 | |
| Trigger | ||||
| 511 | F016L73068 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 512 | F016F05939 | |||
| O-Ring | ||||
| 512/815 | 1619PB2119 | 1.90 | 2.30 | |
| Nameplate | ||||
| 808 | F016F05902 | 1.00 | 1.21 | |
| Seal | ||||
| 838 | F016F04320 | 18.94 | 22.92 | |
| Seal | ||||
| 845 | F016F04321 | 13.13 | 15.89 | |
| Piston | ||||
| 861 | F016F04322 | 18.94 | 22.92 | |
