Here you will find all available parts and drawings of the 'Bosch 060159A7A0 ( GHO40-82C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

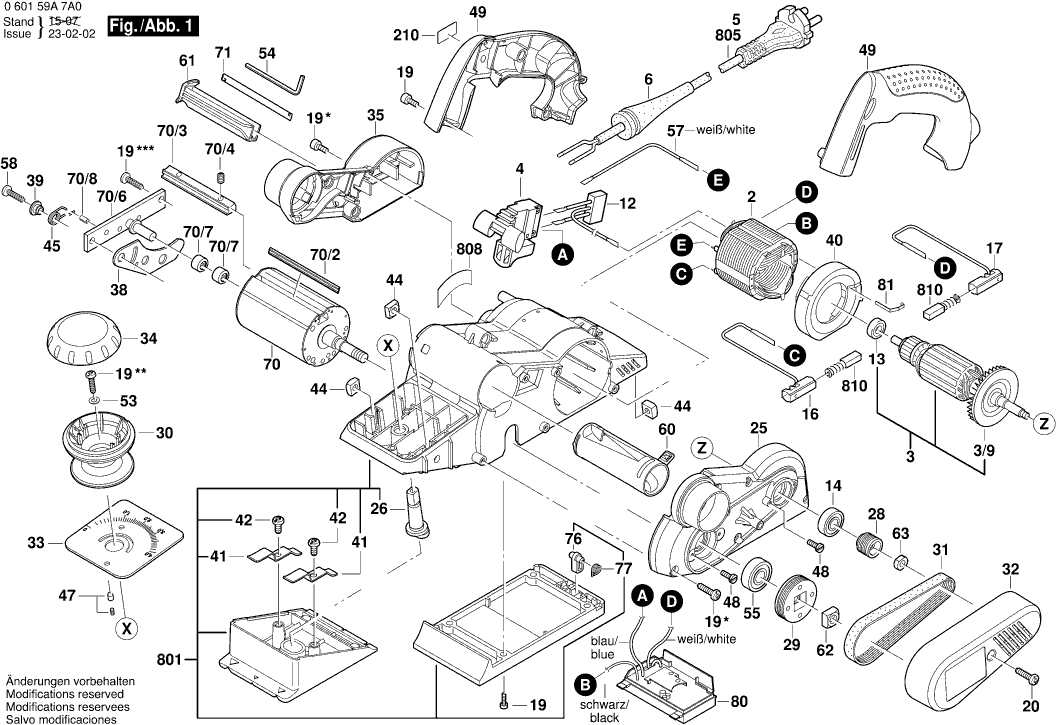

Technical drawing of model Bosch 060159A7A0 ( GHO40-82C )

Spare parts list of model Bosch 060159A7A0 ( GHO40-82C )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 220-240V
2 2604220663 20.42 24.71
Armature 230-240V
3 2604011322 49.56 59.97
Fan
3/9 2606610116 1.94 2.35
Switch
4 1607200158 6.54 7.91
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Suppression Filter
12 2607329148 5.83 7.05
groove ball bearing 7x19x6
13 2600905086 4.70 5.69
No longer available, no replacement
14 2600905052
Brush Holder
16 2604449026 1.18 1.43
Brush Holder
17 2604449027 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Thread-forming tap. Screw M4x12 MM
20 2603410049 1.18 1.43
Bearing Flange
25 2605719033 23.75 28.74
No longer available, no replacement
26 2606110001
Pulley Wheel
28 2600324010 3.31 4.01
Pulley Wheel
29 2600324012 5.83 7.05
Rotary Handle
30 2602026120 2.71 3.28
V-Belt
31 2604736013 7.58 9.17
Gear Cover
32 2605510207 4.10 4.96
Scale Plate
33 2601120009 8.45 10.22
Cap-Handle
34 2605500178 5.33 6.45
No longer available, no replacement
35 2605510208
Sheet metal cover
38 2601098036 1.70 2.06
Guide Bushing
39 2600324008 1.18 1.43
Air-Deflector Ring
40 2600290009 2.71 3.28
Spring Plate
41 2601290016 1.70 2.06
Thread-forming tap. Screw M 5x12 MM
42 2603435027 1.18 1.43
Square Nut M6
44 2603320004 1.18 1.43
Torsion Spring
45 2604651007 1.18 1.43
Ratchet Cap
47 2600590006 1.18 1.43
Screw and washer assembly
48 2603433000 1.18 1.43
Handle
49 2605133024 9.53 11.53
Plain Washer DIN 125-A4,3-ST
53 2916011010 0.83 1.00
Offset Screwdriver
54 2607950045 1.70 2.06
groove ball bearing 10x26x8
55 2600905064 8.45 10.22
Connecting Cable
57 2604448059 1.18 1.43
Torx Oval-Head Screw 4x20
58 2603490023 0.83 1.00
Deflector Pipe
60 2600409028 7.58 9.17
Plug-in module
61 2600508053 3.31 4.01
Square Nut M8
62 2603320003 1.18 1.43
Round Nut M6 LEFTHAND THREADS
63 2603342006 1.18 1.43
Planer Head
70 2608584683 67.25 81.37
Planing Knife
70/2 2608635341 12.41 15.02
Gripping Wedge
70/3 2603111001 10.73 12.98
No longer available, no replacement
70/4 2603400016
Bearing Bracket
70/6 2605819012 15.71 19.01
Needle bearing
70/7 2600914025 2.71 3.28
Needle-Roller Bearing Ø6 MM
70/7 2600914010 2.24 2.71
Coiled Spring Pin DIN 7343-3,5x8 MM
70/8 2917800303 0.83 1.00
Planing Knife
71 2608635341 12.41 15.02
Knife Guard
76 2601329097 2.24 2.71
Torsion Spring
77 2604651016 0.83 1.00
Speed governor 230-240V
80 2607233064 55.25 66.85
Contact Strap
81 2601329110 0.83 1.00
Reference Plate
210 1601110310 1.94 2.35
Dust Bag
684 2609170013 23.75 28.74
Stop Bracket
686 2608005015 8.45 10.22
Stop Bracket
687/1 1601331039 3.31 4.01
Wing Screw
687/2 2603480006 1.94 2.35
O-Ring 4,0x1,5 MM
687/4 1610210043 1.18 1.43
Plain Washer DIN 125-A 6,4-ST
687/5 2916011014 0.83 1.00
Wing Screw M 6x16 MM
687/6 2603480003 1.94 2.35
Stop Bracket
687/7 1601332018 2.71 3.28
Round-Head Bolt DIN 603-M6x20
687/8 2910281201 0.83 1.00
Hex Nut
687/9 2610387875 1.94 2.35
Housing
801 2605190917 73.72 89.20
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A36V 1.94 2.35
Carbon-Brush Set
810 2607014016 8.45 10.22
