Here you will find all available parts and drawings of the 'Bosch 0601593668 (GHO36-82C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

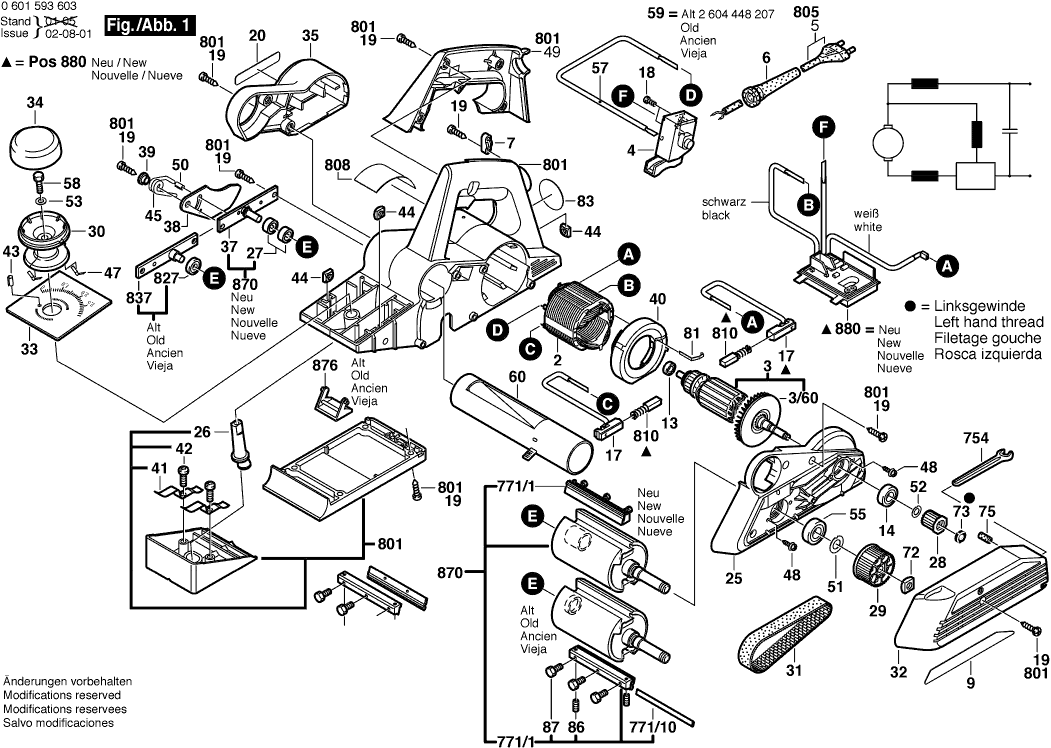

Technical drawing of model Bosch 0601593668 (GHO36-82C)
Spare parts list of model Bosch 0601593668 (GHO36-82C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604220483 | |||
| No longer available, no replacement | ||||
| 3 | 2604010771 | |||
| Fan | ||||
| 3/60 | 2606610049 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 2607200367 | 6.73 | 8.14 | |
| Grommet | ||||
| 6 | 1600703026 | 2.08 | 2.52 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601117954 | 2.87 | 3.47 | |
| groove ball bearing | ||||
| 13 | 2600905086 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 14 | 2600905052 | |||
| No longer available, no replacement | ||||
| 16 | 2604449042 | |||
| Brush Holder | ||||
| 17 | 2604449027 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 20 | 1601110481 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 25 | 2605719003 | |||
| No longer available, no replacement | ||||
| 26 | 2606110001 | |||
| Needle-Roller Bearing | ||||
| 27 | 2600917003 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 29 | 2606625009 | |||
| No longer available, no replacement | ||||
| 30 | 2602026004 | |||
| Toothed Belt | ||||
| 31 | 2609995917 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 32 | 2605510064 | |||
| Scale Plate | ||||
| 33 | 2601120001 | 5.81 | 7.03 | |
| Cap-Handle | ||||
| 34 | 2605500105 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 35 | 2605510063 | |||
| No longer available, no replacement | ||||
| 37 | 2605819011 | |||
| Sheet metal cover | ||||
| 38 | 2601098036 | 2.08 | 2.52 | |
| Guide Bushing | ||||
| 39 | 2600324008 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 40 | 2600290009 | 3.44 | 4.16 | |
| Spring Plate | ||||
| 41 | 2601290016 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 42 | 2603435027 | 1.49 | 1.80 | |
| Coiled Spring Pin | ||||
| 43 | 2917800053 | 2.08 | 2.52 | |
| Square Nut | ||||
| 44 | 2603320004 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 45 | 2604651007 | 1.49 | 1.80 | |
| Ratchet Spring | ||||
| 47 | 2601254000 | 1.49 | 1.80 | |
| Screw and washer assembly | ||||
| 48 | 2603433000 | 1.49 | 1.80 | |
| Handle Plate | ||||
| 49 | 2605133026 | 6.96 | 8.42 | |
| Coiled Spring Pin | ||||
| 50 | 2917800303 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 51 | 2600100041 | 1.49 | 1.80 | |
| Shim | ||||
| 52 | 1600100632 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 53 | 2916011010 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 55 | 2600905064 | 10.90 | 13.19 | |
| Connecting Cable | ||||
| 57 | 2604448062 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 58 | 2603490023 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 59 | 2604448207 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 60 | 2600409022 | |||
| Square Nut | ||||
| 72 | 2603320003 | 1.49 | 1.80 | |
| Round Nut | ||||
| 73 | 2603342006 | 1.49 | 1.80 | |
| Rubber Buffer | ||||
| 75 | 2603100053 | 1.00 | 1.21 | |
| Speed governor | ||||
| 80 | 2604321926 | 88.83 | 107.48 | |
| Contact Strap | ||||
| 81 | 2601329053 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 83 | 1601110310 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 86 | 2603400014 | |||
| No longer available, no replacement | ||||
| 87 | 2603450005 | |||
| Depth-Gauge | ||||
| 655 | 2607001045 | 5.81 | 7.03 | |
| Single-Head Eng. Wrench | ||||
| 754 | 2607950504 | 2.08 | 2.52 | |
| Grip-Spring Tensioning E | ||||
| 771/1 | 2608040039 | 20.39 | 24.67 | |
| Planing Knife | ||||
| 771/10 | 2608635341 | 13.90 | 16.82 | |
| Dust Bag | ||||
| 786 | 2609170013 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 787 | 2605438119 | |||
| Suction Connector | ||||
| 788 | 2605702022 | 1.00 | 1.21 | |
| Parallel-Guide | ||||
| 789 | 2607000102 | 1.00 | 1.21 | |
| Width Stop | ||||
| 795 | 2607001077 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 796 | 2607001106 | |||
| No longer available, no replacement | ||||
| 797 | 2608133001 | |||
| No longer available, no replacement | ||||
| 798 | 0603095000 | |||
| No longer available, no replacement | ||||
| 799 | 0603095002 | |||
| Housing | ||||
| 801 | 2605190914 | 65.16 | 78.84 | |
| Power supply cord | ||||
| 805 | 1607000227 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 810 | 2607014002 | |||
| No longer available, no replacement | ||||
| 827 | 2600905037 | |||
| No longer available, no replacement | ||||
| 837 | 2605819004 | |||
| No longer available, no replacement | ||||
| 870 | 2603204908 | |||
| No longer available, no replacement | ||||
| 876 | 2601329055 | |||
| Speed governor | ||||
| 880 | 2604321926 | 88.83 | 107.48 | |
