Here you will find all available parts and drawings of the 'Bosch 0601593066 ( GHO31-82 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

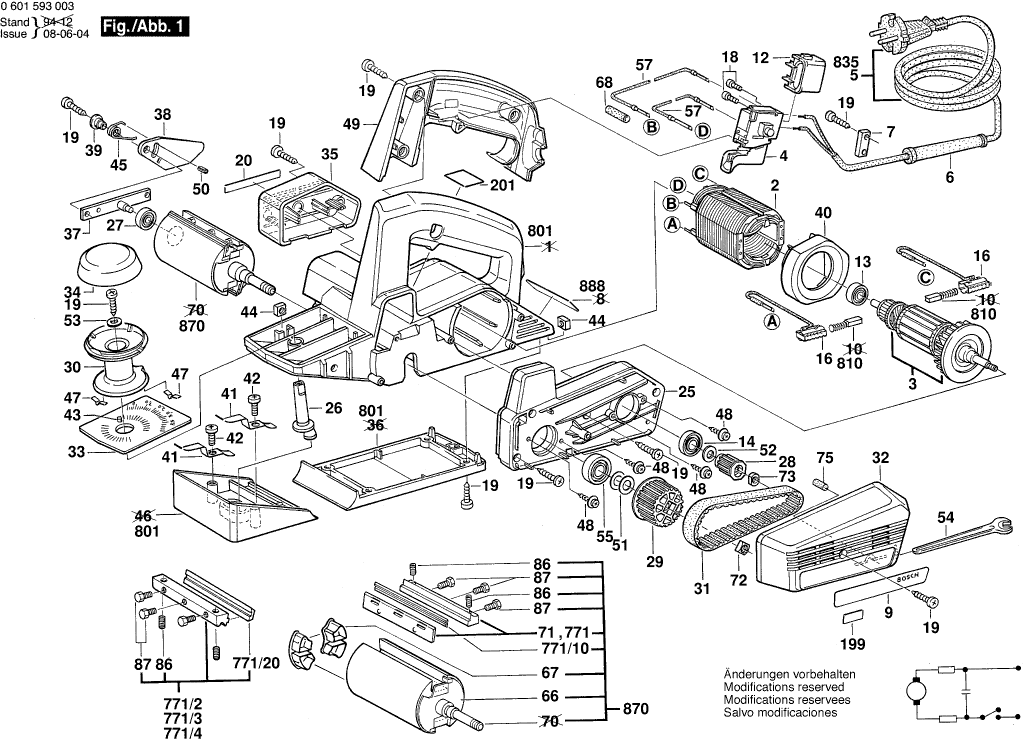

Technical drawing of model Bosch 0601593066 ( GHO31-82 )

Spare parts list of model Bosch 0601593066 ( GHO31-82 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230-240V
2 2604220480 18.19 22.01
No longer available, no replacement
3 2604010763
On-Off Switch
4 1607000231 13.93 16.86
Grommet Ø8,2 MM
6 2600703008 0.83 1.00
Cable Clip
7 2601035001 1.18 1.43
Manufacturer's nameplate
9 2601118603 2.71 3.28
No longer available, no replacement
12 2607329138
groove ball bearing 7x19x6
13 2600905086 4.70 5.69
No longer available, no replacement
14 2600905052
Brush Holder
16 2604449027 1.18 1.43
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
Manufacturer's nameplate SHADOW SIDE
20 1601110481 1.70 2.06
No longer available, no replacement
25 2605719001
No longer available, no replacement
26 2606110001
Needle-Roller Bearing Ø8x8 MM
27 2600917003 2.24 2.71
Toothed Belt Wheel Z=19
28 2600324009 1.70 2.06
No longer available, no replacement
29 2606625009
No longer available, no replacement
30 2602026004
Toothed Belt 17 MM, Z=89
31 2609995917 6.54 7.91
Gear Cover
32 2605510041 3.31 4.01
Scale Plate
33 2601120000 5.33 6.45
Cap-Handle
34 2605500105 1.70 2.06
No longer available, no replacement
35 2605510039
No longer available, no replacement
37 2605819004
Sheet metal cover
38 2601098036 1.70 2.06
Guide Bushing
39 2600324008 1.18 1.43
Air-Deflector Ring
40 2600290006 1.94 2.35
Spring Plate
41 2601290016 1.70 2.06
Thread-forming tap. Screw M 5x12 MM
42 2603435027 1.18 1.43
Coiled Spring Pin DIN 7343-5x2,5
43 2917800053 1.70 2.06
Square Nut M6
44 2603320004 1.18 1.43
Torsion Spring
45 2604651007 1.18 1.43
Ratchet Spring
47 2601254000 1.18 1.43
Screw and washer assembly
48 2603433000 1.18 1.43
Handle Cover
49 2605133006 5.83 7.05
Coiled Spring Pin DIN 7343-3,5x8 MM
50 2917800303 0.83 1.00
Plain Washer DIN 315-M8-GT-C
51 2600100041 1.18 1.43
Shim 0,2 MM THICK
52 1600100632 0.83 1.00
Plain Washer DIN 125-A4,3-ST
53 2916011010 0.83 1.00
Single-Head Eng. Wrench
54 2607950504 1.70 2.06
groove ball bearing 10x26x8
55 2600905064 8.45 10.22
Connecting Cable L = 288 MM WHITE
57 2604448062 1.18 1.43
Cover
67 2605510036 1.18 1.43
Shrinkable Tube BLACK
68 2600409020 0.83 1.00
Square Nut M8
72 2603320003 1.18 1.43
Round Nut M6 LEFTHAND THREADS
73 2603342006 1.18 1.43
Rubber Buffer
75 1603100036 1.18 1.43
No longer available, no replacement
86 2603400014
No longer available, no replacement
87 2603450005
No longer available, no replacement
199 1601110265
Depth-Gauge
655 2607001045 4.70 5.69
No longer available, no replacement
656 2607001047
Stop Bracket
657 2608005015 8.45 10.22
Grip-Spring Tensioning E
771 2608040039 18.19 22.01
Planing Knife
771/10 2608635341 12.41 15.02
No longer available, no replacement
771/2 2607000136
No longer available, no replacement
786 2605411016
No longer available, no replacement
787 2605438119
Suction Connector
788 2605702017 0.83 1.00
No longer available, no replacement
794 2607000136
No information available, not orderable
795 2607001077
No longer available, no replacement
796 2607001106
No longer available, no replacement
797 2608133001
No longer available, no replacement
798 0603095000
Base
799 2608005034 0.83 1.00
Housing BLUE
801 2605190901 29.75 36.00
Carbon-Brush Set
810 2604321905 8.45 10.22
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
835 1607000227 20.42 24.71
No longer available, no replacement
870 2603204908
Nameplate
888 160111A3H3 1.94 2.35
