Here you will find all available parts and drawings of the 'Bosch 0601593033 (GHO31-82)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

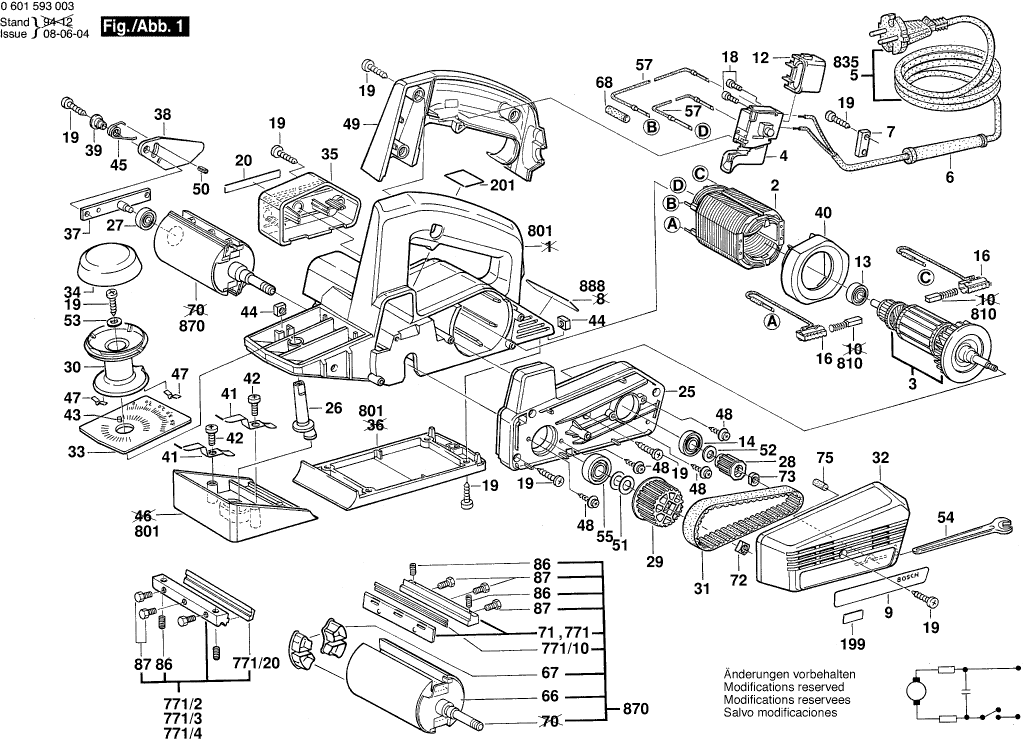

Technical drawing of model Bosch 0601593033 (GHO31-82)
Spare parts list of model Bosch 0601593033 (GHO31-82)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220480 | 20.39 | 24.67 | |
| No longer available, no replacement | ||||
| 3 | 2604010763 | |||
| On-Off Switch | ||||
| 4 | 1607000231 | 16.79 | 20.32 | |
| No information available, not orderable | ||||
| 5 | 2604460043 | |||
| Grommet | ||||
| 6 | 2600703008 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118603 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 12 | 2607329138 | |||
| groove ball bearing | ||||
| 13 | 2600905086 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 14 | 2600905052 | |||
| Brush Holder | ||||
| 16 | 2604449027 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 20 | 1601110481 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 25 | 2605719001 | |||
| No longer available, no replacement | ||||
| 26 | 2606110001 | |||
| Needle-Roller Bearing | ||||
| 27 | 2600917003 | 2.86 | 3.46 | |
| Toothed Belt Wheel | ||||
| 28 | 2600324009 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 29 | 2606625009 | |||
| No longer available, no replacement | ||||
| 30 | 2602026004 | |||
| Toothed Belt | ||||
| 31 | 2609995917 | 8.35 | 10.10 | |
| Gear Cover | ||||
| 32 | 2605510041 | 4.18 | 5.06 | |
| Scale Plate | ||||
| 33 | 2601120000 | 6.73 | 8.14 | |
| Cap-Handle | ||||
| 34 | 2605500105 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 35 | 2605510039 | |||
| No longer available, no replacement | ||||
| 37 | 2605819004 | |||
| Sheet metal cover | ||||
| 38 | 2601098036 | 2.08 | 2.52 | |
| Guide Bushing | ||||
| 39 | 2600324008 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 40 | 2600290006 | 2.40 | 2.90 | |
| Spring Plate | ||||
| 41 | 2601290016 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 42 | 2603435027 | 1.49 | 1.80 | |
| Coiled Spring Pin | ||||
| 43 | 2917800053 | 2.08 | 2.52 | |
| Square Nut | ||||
| 44 | 2603320004 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 45 | 2604651007 | 1.49 | 1.80 | |
| Ratchet Spring | ||||
| 47 | 2601254000 | 1.49 | 1.80 | |
| Screw and washer assembly | ||||
| 48 | 2603433000 | 1.49 | 1.80 | |
| Handle Cover | ||||
| 49 | 2605133006 | 7.46 | 9.03 | |
| Coiled Spring Pin | ||||
| 50 | 2917800303 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 51 | 2600100041 | 1.49 | 1.80 | |
| Shim | ||||
| 52 | 1600100632 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 53 | 2916011010 | 1.00 | 1.21 | |
| Single-Head Eng. Wrench | ||||
| 54 | 2607950504 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 55 | 2600905064 | 10.90 | 13.19 | |
| Connecting Cable | ||||
| 57 | 2604448062 | 1.49 | 1.80 | |
| Cover | ||||
| 67 | 2605510036 | 1.49 | 1.80 | |
| Shrinkable Tube | ||||
| 68 | 2600409020 | 1.00 | 1.21 | |
| Square Nut | ||||
| 72 | 2603320003 | 1.49 | 1.80 | |
| Round Nut | ||||
| 73 | 2603342006 | 1.49 | 1.80 | |
| Rubber Buffer | ||||
| 75 | 1603100036 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 86 | 2603400014 | |||
| No longer available, no replacement | ||||
| 87 | 2603450005 | |||
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| Depth-Gauge | ||||
| 655 | 2607001045 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 656 | 2607001047 | |||
| Stop Bracket | ||||
| 657 | 2608005015 | 10.90 | 13.19 | |
| Grip-Spring Tensioning E | ||||
| 771 | 2608040039 | 20.39 | 24.67 | |
| Planing Knife | ||||
| 771/10 | 2608635341 | 13.90 | 16.82 | |
| No longer available, no replacement | ||||
| 771/2 | 2607000136 | |||
| No longer available, no replacement | ||||
| 786 | 2605411016 | |||
| No longer available, no replacement | ||||
| 787 | 2605438119 | |||
| No longer available, no replacement | ||||
| 788 | 2605702017 | |||
| No longer available, no replacement | ||||
| 794 | 2607000136 | |||
| Width Stop | ||||
| 795 | 2607001077 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 796 | 2607001106 | |||
| No longer available, no replacement | ||||
| 797 | 2608133001 | |||
| No longer available, no replacement | ||||
| 798 | 0603095000 | |||
| Base | ||||
| 799 | 2608005034 | 0.83 | 1.00 | |
| Housing | ||||
| 801 | 2605190901 | 34.82 | 42.13 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 870 | 2603204908 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
