Here you will find all available parts and drawings of the 'Bosch 0601944703 ( GHG660LCD )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

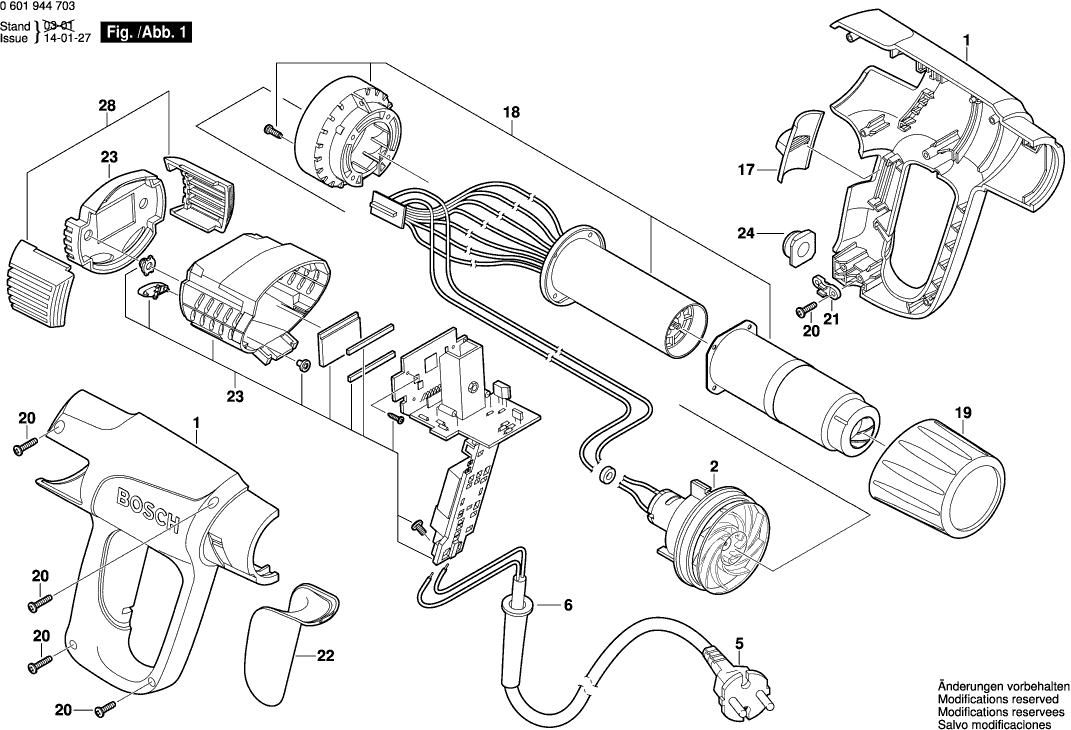

Technical drawing of model Bosch 0601944703 ( GHG660LCD )
Spare parts list of model Bosch 0601944703 ( GHG660LCD )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 1609203H64 | 23.75 | 28.74 | |
| DC motor 115-240V | ||||
| 2 | 1609202611 | 23.75 | 28.74 | |
| Power supply cord | ||||
| 5 | 1609203H38 | 20.42 | 24.71 | |
| Grommet | ||||
| 6 | 1609202606 | 1.94 | 2.35 | |
| Switch Button | ||||
| 17 | 1609203H72 | 4.10 | 4.96 | |
| Heating Element 230-240V | ||||
| 18 | 1609203H73 | 73.72 | 89.20 | |
| Protective Tube | ||||
| 19 | 1609203H61 | 8.45 | 10.22 | |
| Tapping Screw DIN 7981-ST2,9x16-F-H | ||||
| 20 | 2910615407 | 0.83 | 1.00 | |
| Fastening Clamp | ||||
| 21 | 1609203102 | 1.18 | 1.43 | |
| Cap-Handle | ||||
| 22 | 1609203H62 | 13.93 | 16.86 | |
| No longer available, no replacement | ||||
| 23 | 1609203L52 | |||
| Rubber Base | ||||
| 24 | 1609203H65 | 1.18 | 1.43 | |
| Filter Element | ||||
| 28 | 1609203H78 | 4.10 | 4.96 | |
