Here you will find all available parts and drawings of the 'Bosch 0601942103 ( GHG600CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

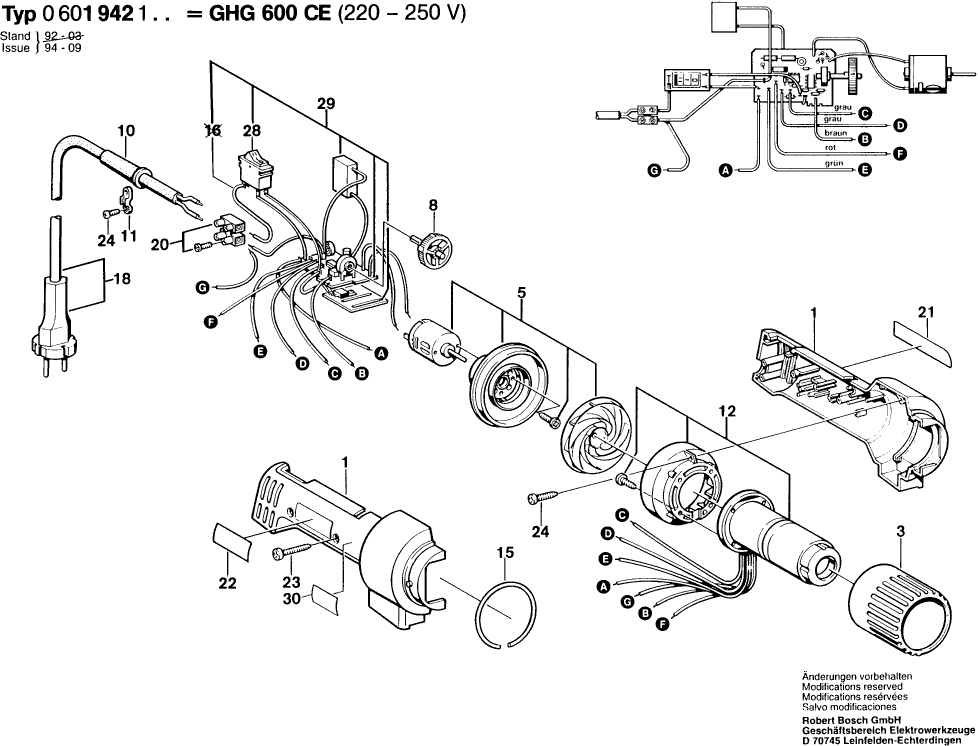

Technical drawing of model Bosch 0601942103 ( GHG600CE )
Spare parts list of model Bosch 0601942103 ( GHG600CE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing BLUE | ||||
| 1 | 1609202271 | 23.75 | 28.74 | |
| Protective Tube | ||||
| 3 | 1609201484 | 7.58 | 9.17 | |
| DC motor 100-240V | ||||
| 5 | 1609202269 | 33.45 | 40.47 | |
| Thumbwheel | ||||
| 8 | 1609202272 | 4.10 | 4.96 | |
| Grommet | ||||
| 10 | 1609202793 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 11 | 1609201487 | 1.18 | 1.43 | |
| Cylindrical Heating Element 220-230V | ||||
| 12 | 1609202261 | 73.72 | 89.20 | |
| Retaining ring CA.Ø2,3xØ47 MM | ||||
| 15 | 1609201490 | 1.70 | 2.06 | |
| Power supply cord | ||||
| 18 | 3607030489 | 26.84 | 32.48 | |
| connecting terminal 2-POLE | ||||
| 20 | 1609390042 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 21 | 1601110596 | 3.31 | 4.01 | |
| Nameplate | ||||
| 22 | 1601110597 | 3.31 | 4.01 | |
| Tapping Screw DIN 7983-B2,9x16 | ||||
| 23 | 2910615507 | 1.70 | 2.06 | |
| Tapping Screw DIN 7981-ST 2,9x13-F-H | ||||
| 24 | 2910614406 | 0.83 | 1.00 | |
| On-Off Switch | ||||
| 28 | 1609202264 | 11.88 | 14.37 | |
| Printed-Board Assembly 220-240V | ||||
| 29 | 1609202266 | 81.47 | 98.58 | |
| No longer available, no replacement | ||||
| 30 | 1601110265 | |||
| No information available, not orderable | ||||
| 700 | 1609201797 | |||
| No information available, not orderable | ||||
| 701 | 1609201798 | |||
| No information available, not orderable | ||||
| 702 | 1609201799 | |||
| No information available, not orderable | ||||
| 703 | 1609201800 | |||
| No information available, not orderable | ||||
| 704 | 1609201801 | |||
| No longer available, no replacement | ||||
| 705 | 1609201802 | |||
| No information available, not orderable | ||||
| 706 | 1609201807 | |||
| No information available, not orderable | ||||
| 707 | 1609201808 | |||
| No information available, not orderable | ||||
| 708 | 1609201809 | |||
| No information available, not orderable | ||||
| 709 | 1609201810 | |||
| No longer available, no replacement | ||||
| 710 | 1609201811 | |||
| No information available, not orderable | ||||
| 711 | 1609201812 | |||
| No information available, not orderable | ||||
| 712 | 1609201813 | |||
| No longer available, no replacement | ||||
| 715 | 1609390450 | |||
| Blade | ||||
| 715/10 | 1609201745 | 8.45 | 10.22 | |
| Blade | ||||
| 715/20 | 1609201746 | 8.45 | 10.22 | |
| Plain Washer 8,4 DIN 433-ST | ||||
| 715/30 | 2916011015 | 0.83 | 1.00 | |
| Hex Nut DIN 934-M8-8-A | ||||
| 715/40 | 2915011009 | 1.94 | 2.35 | |
| No information available, not orderable | ||||
| 716 | 1609390451 | |||
| No information available, not orderable | ||||
| 717 | 1609201795 | |||
| No information available, not orderable | ||||
| 718 | 1609390452 | |||
| No information available, not orderable | ||||
| 719 | 1609201796 | |||
| No information available, not orderable | ||||
| 720 | 1609390453 | |||
| No information available, not orderable | ||||
| 722 | 1609201751 | |||
