Here you will find all available parts and drawings of the 'Bosch 0601462803 (GGW10E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

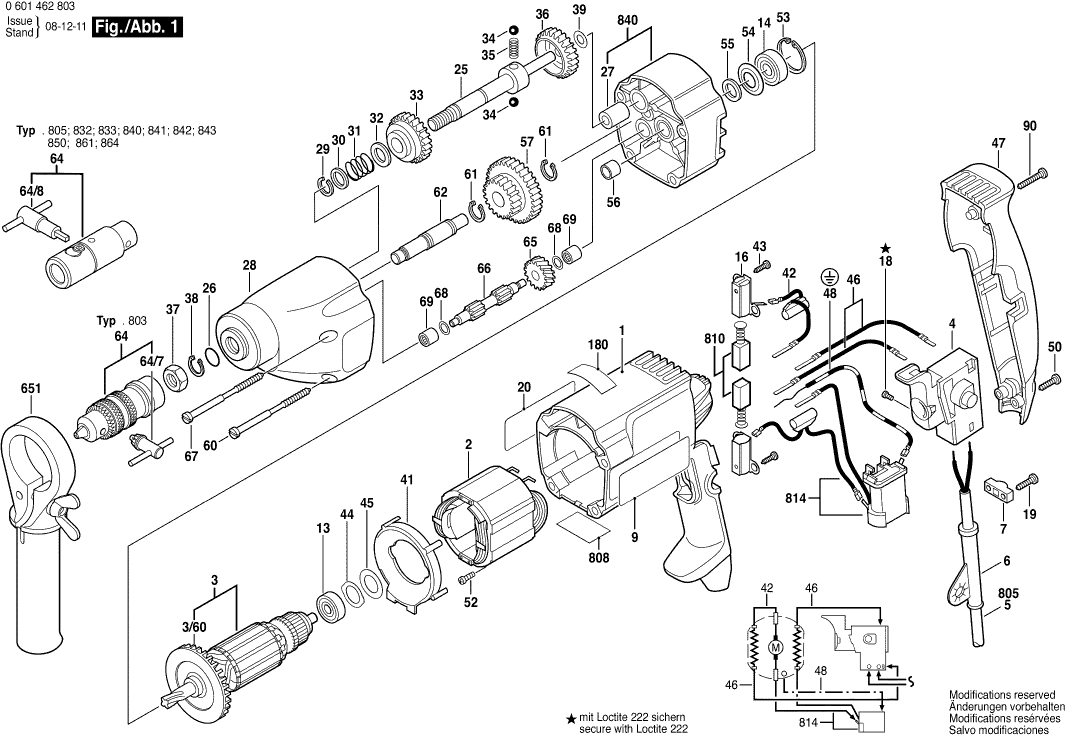

Technical drawing of model Bosch 0601462803 (GGW10E)
Spare parts list of model Bosch 0601462803 (GGW10E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104309 | 23.90 | 28.92 | |
| Field | ||||
| 2 | 2604220445 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 3 | 2604010612 | |||
| Fan | ||||
| 3/60 | 2606610049 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 4 | 2607200184 | |||
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 3601110341 | 4.12 | 4.99 | |
| Ball Bearing | ||||
| 13 | 1900905018 | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 14 | 2600905021 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 2604337003 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910211019 | 1.00 | 1.21 | |
| Sticker | ||||
| 20 | 3601110342 | 6.22 | 7.53 | |
| Drilling Spindle | ||||
| 25 | 3606135003 | 114.26 | 138.25 | |
| O-Ring | ||||
| 26 | 3600210065 | 2.38 | 2.88 | |
| Bushing | ||||
| 27 | 3600328036 | 12.82 | 15.51 | |
| Gear Housing | ||||
| 28 | 3605190131 | 146.07 | 176.74 | |
| Spring retaining ring | ||||
| 29 | 3600118009 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 30 | 3600101043 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 31 | 3604616016 | 2.87 | 3.47 | |
| Shim | ||||
| 32 | 3600101044 | 2.00 | 2.42 | |
| Cylindrical Gear | ||||
| 33 | 3606316071 | 91.33 | 110.51 | |
| Ball | ||||
| 34 | 1903230011 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 35 | 3604610018 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 36 | 3606316020 | 91.33 | 110.51 | |
| Nut | ||||
| 37 | 3603300007 | 13.58 | 16.43 | |
| Spring retaining ring | ||||
| 38 | 3600118010 | 1.24 | 1.50 | |
| Shim | ||||
| 39 | 2600100505 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 41 | 2601328033 | |||
| Suppression Filter | ||||
| 42 | 2604465068 | 6.73 | 8.14 | |
| Lens Head Screw | ||||
| 43 | 1613435034 | 1.00 | 1.21 | |
| Shim | ||||
| 44 | 2600150004 | 2.08 | 2.52 | |
| Shim | ||||
| 45 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 45 | 2600101022 | 1.49 | 1.80 | |
| Shim | ||||
| 45 | 2600101023 | 1.49 | 1.80 | |
| Cable | ||||
| 46 | 2604448005 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 47 | 2605132049 | 7.46 | 9.03 | |
| Earth Conductor | ||||
| 48 | 2604448097 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 50 | 2910211019 | 1.00 | 1.21 | |
| Cross Recessed-Head Screw | ||||
| 52 | 2603435015 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 53 | 2916660008 | 2.08 | 2.52 | |
| Cupped Washer | ||||
| 54 | 2600500002 | 1.49 | 1.80 | |
| Felt Washer | ||||
| 55 | 2600108077 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 56 | 2600400008 | |||
| Cylindrical Gear | ||||
| 57 | 3606328000 | 111.64 | 135.08 | |
| Tapping Screw | ||||
| 60 | 1603435036 | 1.80 | 2.18 | |
| Spring retaining ring | ||||
| 61 | 2916650903 | 1.49 | 1.80 | |
| Axle | ||||
| 62 | 3603124000 | 50.23 | 60.78 | |
| Chuck | ||||
| 64 | 1608571074 | 141.37 | 171.06 | |
| Chuck Wrench | ||||
| 64/7 | 1607950051 | 0.83 | 1.00 | |
| Cylindrical Gear | ||||
| 65 | 3606316021 | 50.23 | 60.78 | |
| Spindle With Gear | ||||
| 66 | 3606337062 | 50.23 | 60.78 | |
| Tapping Screw | ||||
| 67 | 2603435012 | 1.49 | 1.80 | |
| Shim | ||||
| 68 | 2600100613 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 69 | 9001140359 | 5.96 | 7.21 | |
| Tapping Screw | ||||
| 90 | 2910211022 | 1.00 | 1.21 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| Service kit | ||||
| 814 | 2607329010 | 17.60 | 21.30 | |
| Intermediate Flange | ||||
| 840 | 3605700054 | 158.14 | 191.35 | |
